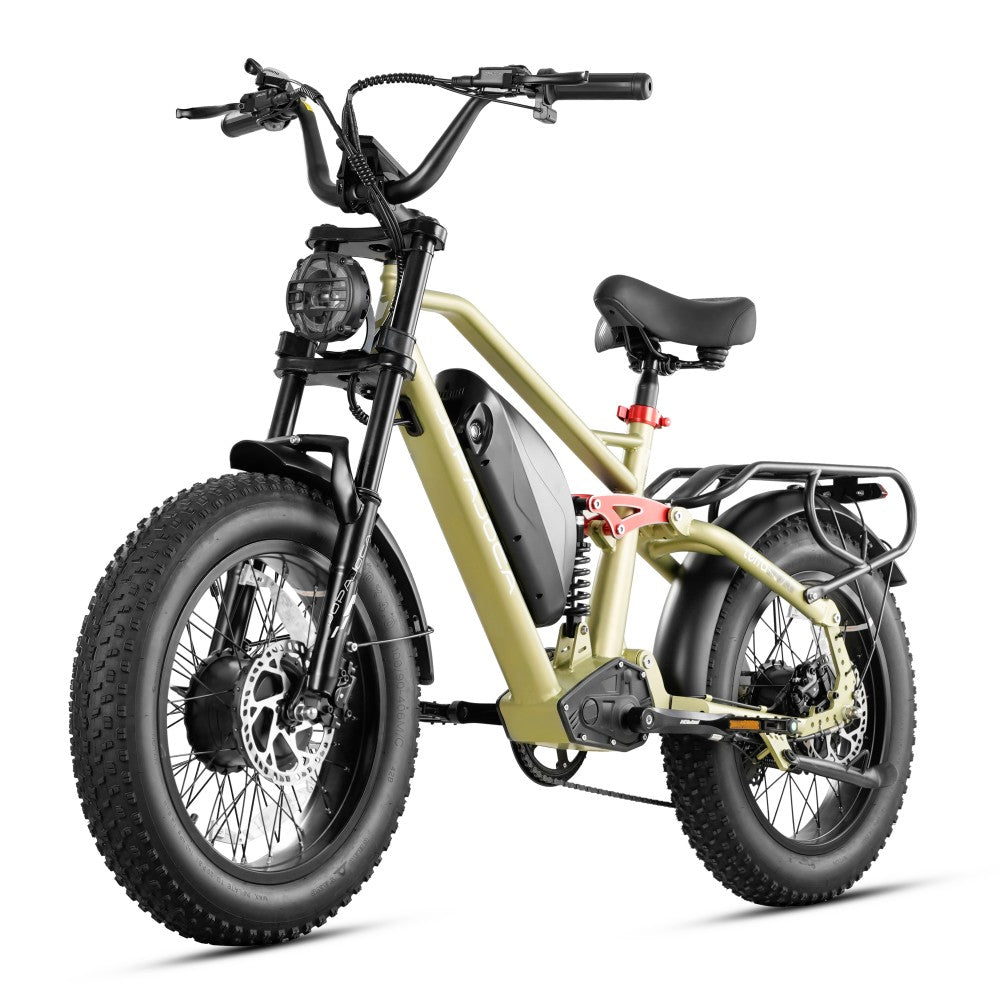

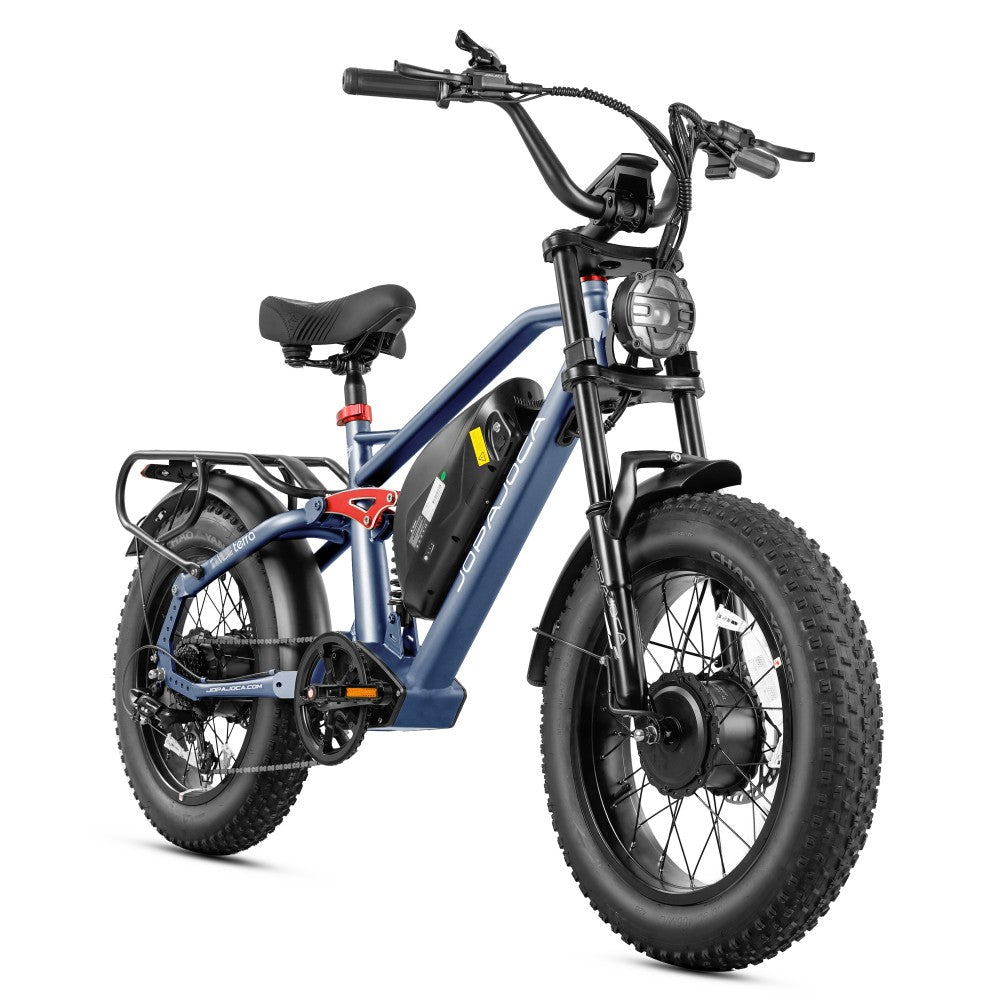

Vélo électrique eAhora TERRA II 1500W 48V 20Ah
Eahora Terra II — La puissance rencontre la praticité
Équipé d'un moteur double entraînement de 1 500 W et de freins hydrauliques à 2 pistons de 180 mm, l'Eahora Terra II offre des performances puissantes et une puissance de freinage fiable. Son cadre robuste assure une excellente stabilité et durabilité, rendant les déplacements quotidiens plus fluides, plus sûrs et plus faciles que jamais.
You have 30 days from receiving your item to request a return.
The Main components are covered by a two-year warranty.
View More>>
Order in the next
Comparer les couleurs

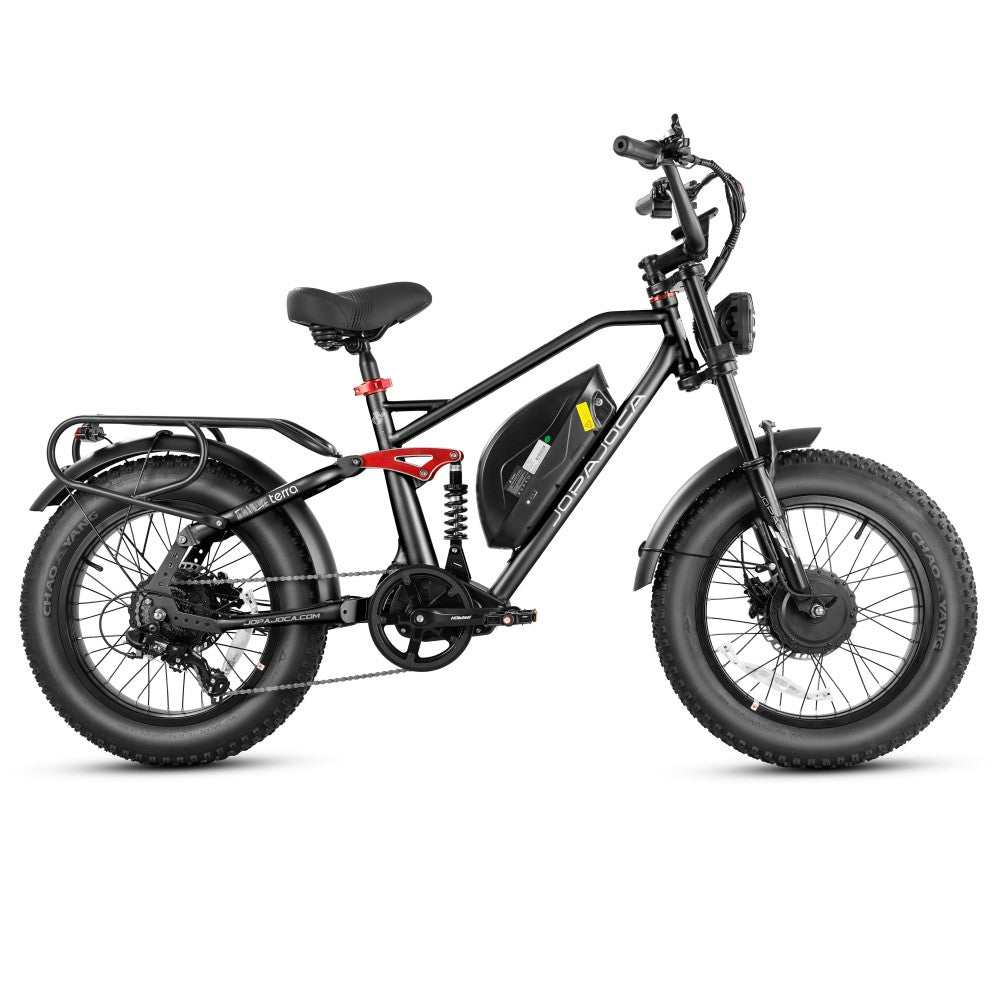

Black
Green

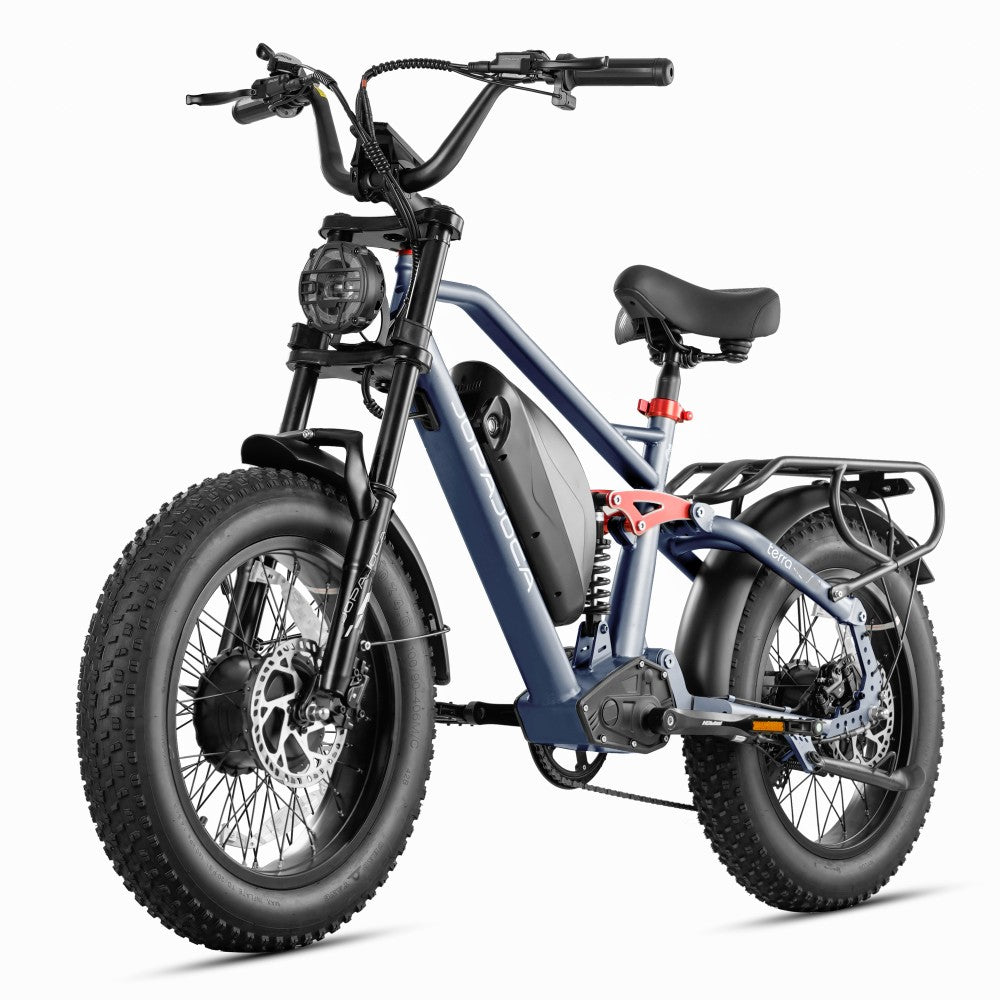

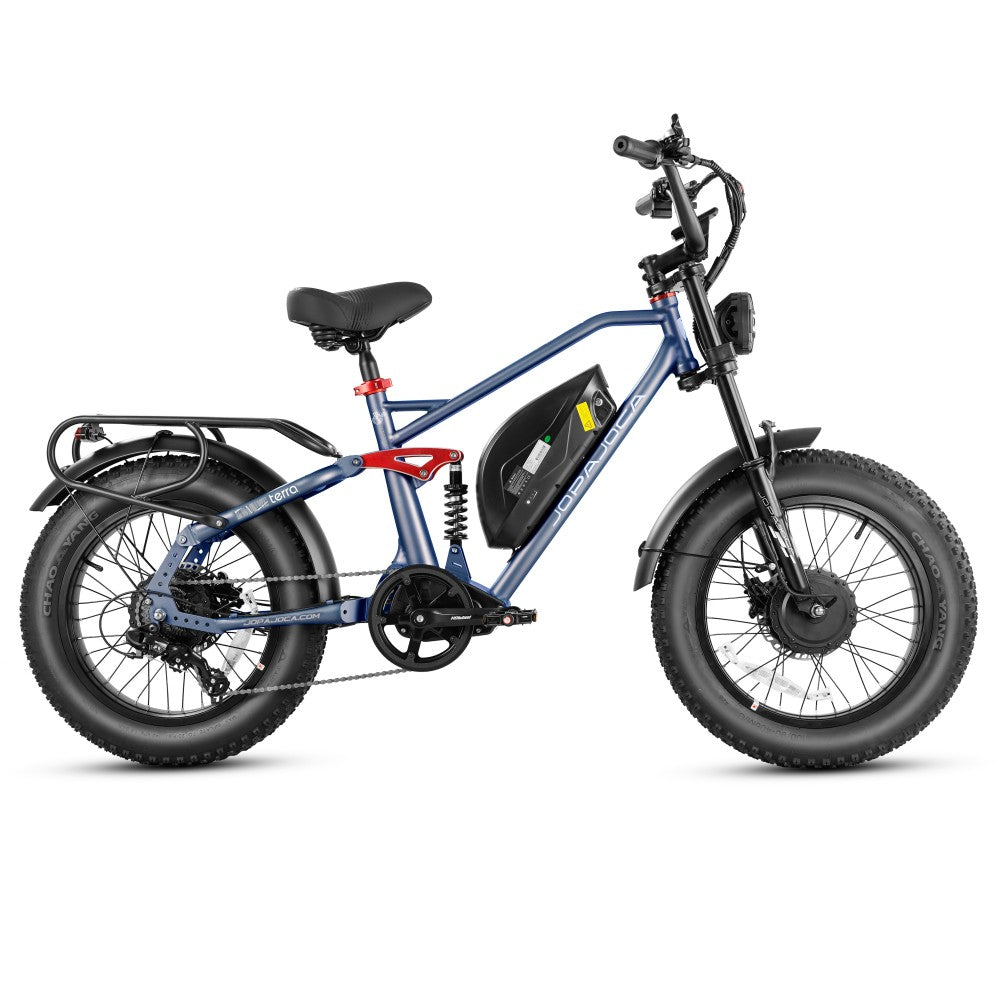

Blue
Poser une question
Guaranteed Safe Checkout
Fréquemment achetés ensemble
Vélo électrique eAhora TERRA II 1500W 48V 20Ah
Technical Specifications
General Information
Top Speed: 28 - 33 mph for both pedal-assist and throttle..
Range per Charge: 44 - 58 miles with PAS, or 35 - 45 miles w/o PAS
Max Load: ≤ 330 lbs to ensure the performance and safety.
Rider Height: 5'4" - 6'1", or inseam ≥ 26.8".
Bike Weight: 91 lbs with the battery installed.
Ideal Use: IPX6 weather-proof, off-road / mountain / urban riding.
Range per Charge: 44 - 58 miles with PAS, or 35 - 45 miles w/o PAS
Max Load: ≤ 330 lbs to ensure the performance and safety.
Rider Height: 5'4" - 6'1", or inseam ≥ 26.8".
Bike Weight: 91 lbs with the battery installed.
Ideal Use: IPX6 weather-proof, off-road / mountain / urban riding.
Riding with Unmatched Power
Battery Capacity: 960 Watt·hour (48V 20Ah).
Cells Type: Lithium-ion pouch cells, Grade A.
Battery Lifespan: ≥ 1200 charge cycles to 80% of capacity.
Motor Power: 2 x 750 Watt.
Motor Torque: 2 x 65 Newton·metre (max).
Motor Type: Brushless rear hub motor, IPX6.
PAS Levels: 5 Levels with Cadence Sensor.
Throttle Type: 5 Levels twist, slightly delayed response (safe design).

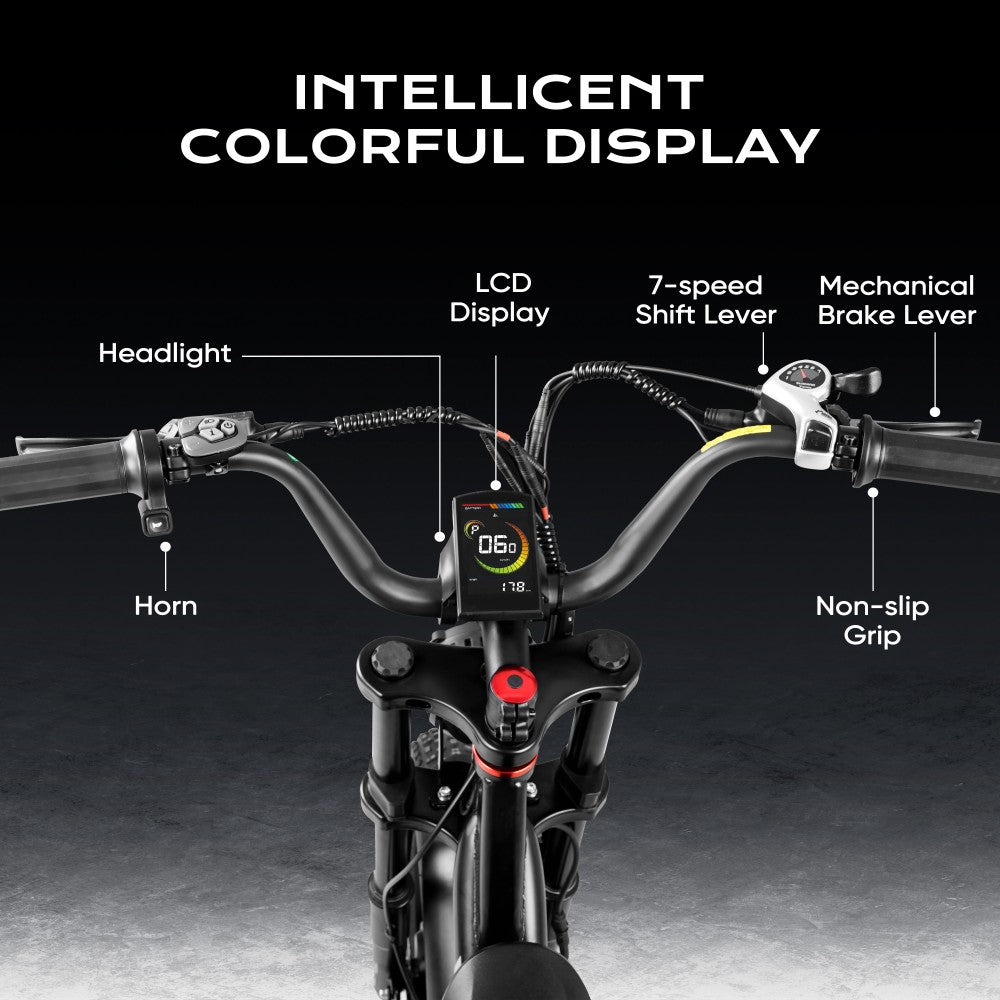

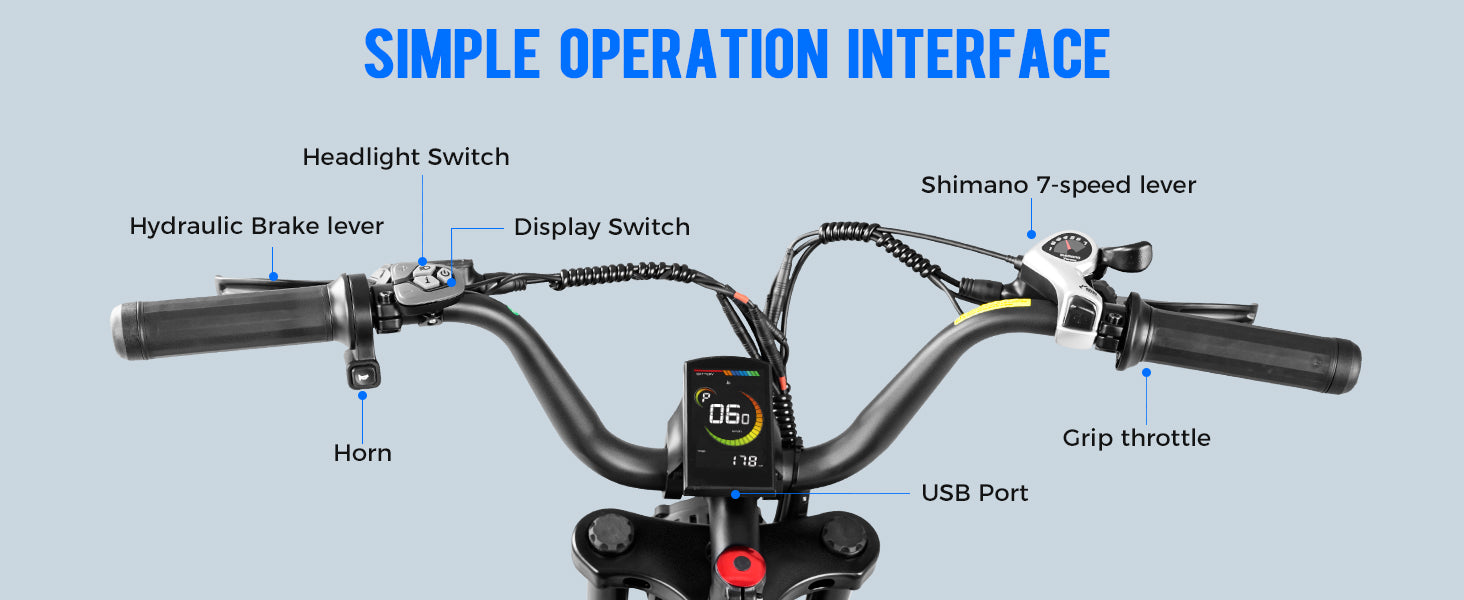

Display / Dashboard: 4" color LCD, motors switch, Bluetooth, USB charge port.
Shifting Gears: Shimano 7s 14-28T, 48T chainring.
Battery Charger: 48V 2A charger
Additional Modes: Cruise Control, 6 km/h Walk.
Cells Type: Lithium-ion pouch cells, Grade A.
Battery Lifespan: ≥ 1200 charge cycles to 80% of capacity.
Motor Power: 2 x 750 Watt.
Motor Torque: 2 x 65 Newton·metre (max).
Motor Type: Brushless rear hub motor, IPX6.
PAS Levels: 5 Levels with Cadence Sensor.
Throttle Type: 5 Levels twist, slightly delayed response (safe design).
Display / Dashboard: 4" color LCD, motors switch, Bluetooth, USB charge port.
Shifting Gears: Shimano 7s 14-28T, 48T chainring.
Battery Charger: 48V 2A charger
Additional Modes: Cruise Control, 6 km/h Walk.
Biking Safely & Confidently
Brake System: Hydraulic disc brakes with motor cutoff.
Brake Rotors: 180mm (φ) x 3.0mm (t) steel rotors.
Brake Caliper/Pads: 4-Piston calipers with semi-metallic pads.
Bike Frame: High-carbon steel 20" x 15" frame.

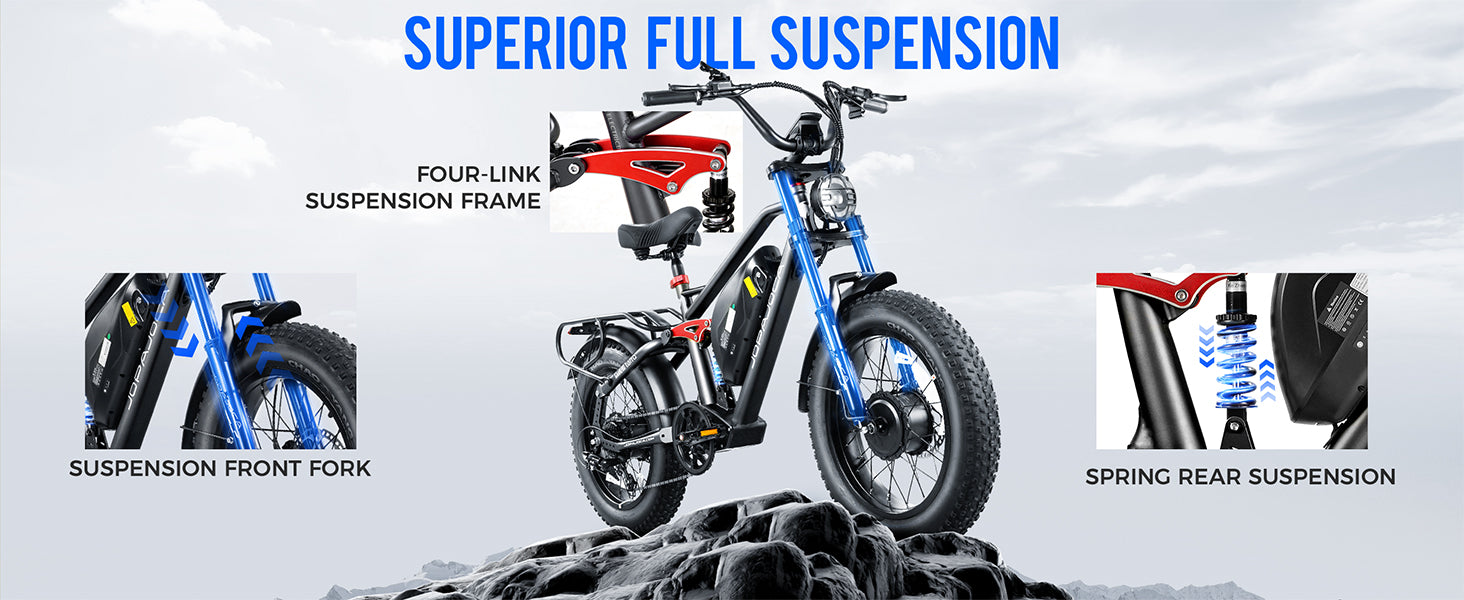

Front Fork: Adjustable 80mm tavel coil suspension.
Shock Absorber: 4-Bar-Link coil suspension, 50mm travel.
Head Light: 1500 Lumens (15W) LED with built-in horn.
Tail Light: LED with integrated brake signal blinker.
Additinal Reflectors: Pedals, spokes, tires.

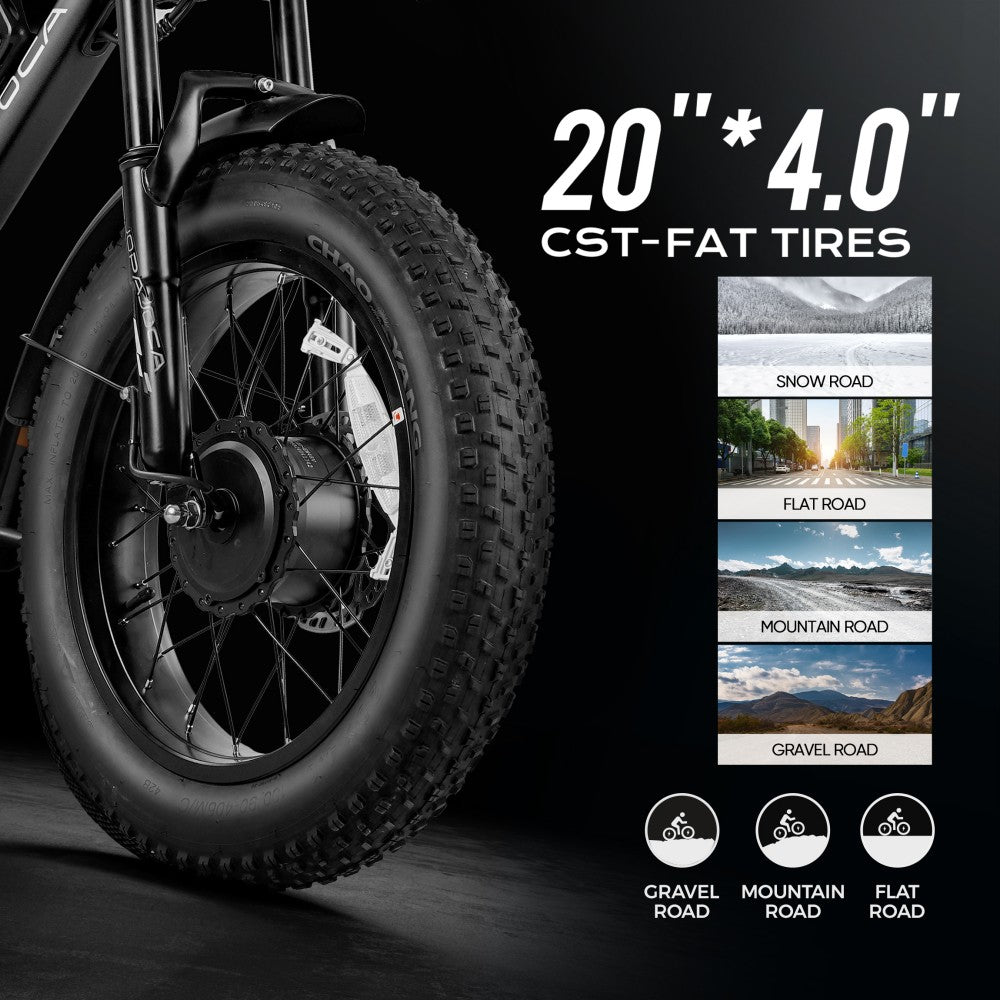

Tire Type: Chaoyang 20" x 4.0" tires with tube (28-33 psi).
Saddle: Leather wide seat with memory foam.
Handlebar: Aluminum 680mm x 31.8mm (φ, center), rise.
Brake Rotors: 180mm (φ) x 3.0mm (t) steel rotors.
Brake Caliper/Pads: 4-Piston calipers with semi-metallic pads.
Bike Frame: High-carbon steel 20" x 15" frame.
Front Fork: Adjustable 80mm tavel coil suspension.
Shock Absorber: 4-Bar-Link coil suspension, 50mm travel.
Head Light: 1500 Lumens (15W) LED with built-in horn.
Tail Light: LED with integrated brake signal blinker.
Additinal Reflectors: Pedals, spokes, tires.
Tire Type: Chaoyang 20" x 4.0" tires with tube (28-33 psi).
Saddle: Leather wide seat with memory foam.
Handlebar: Aluminum 680mm x 31.8mm (φ, center), rise.
Components & Accessories
Bell: Electric horn built-in headlight.
Crankset: 170mm Aluminum, 48T chainring with cover.
Pedals: WELLGO 16/9 aluminum alloy platform.
Derailleur: SHIMANO RD-TY300 7 speed.
Shifter: SHIMANO ASLTX50R7CT 22.2mm x 2400mm.
Freewheel / Cassette: SHIMANO MF-TZ500-7 14-28T.
Rims: 36H aluminum alloy rims.
Spokes: Black stainless steel.
Grips: 120mm x 22.2mm (φ) rubber, anti-slip.
Seatpost: Aluminum seapost with 38.1mm clamp.
Headset: Integrated threadless headset.
Stem: 31.8mm (φ, handlebar) * 35° A-head.
Crankset: 170mm Aluminum, 48T chainring with cover.
Pedals: WELLGO 16/9 aluminum alloy platform.
Derailleur: SHIMANO RD-TY300 7 speed.
Shifter: SHIMANO ASLTX50R7CT 22.2mm x 2400mm.
Freewheel / Cassette: SHIMANO MF-TZ500-7 14-28T.
Rims: 36H aluminum alloy rims.
Spokes: Black stainless steel.
Grips: 120mm x 22.2mm (φ) rubber, anti-slip.
Seatpost: Aluminum seapost with 38.1mm clamp.
Headset: Integrated threadless headset.
Stem: 31.8mm (φ, handlebar) * 35° A-head.

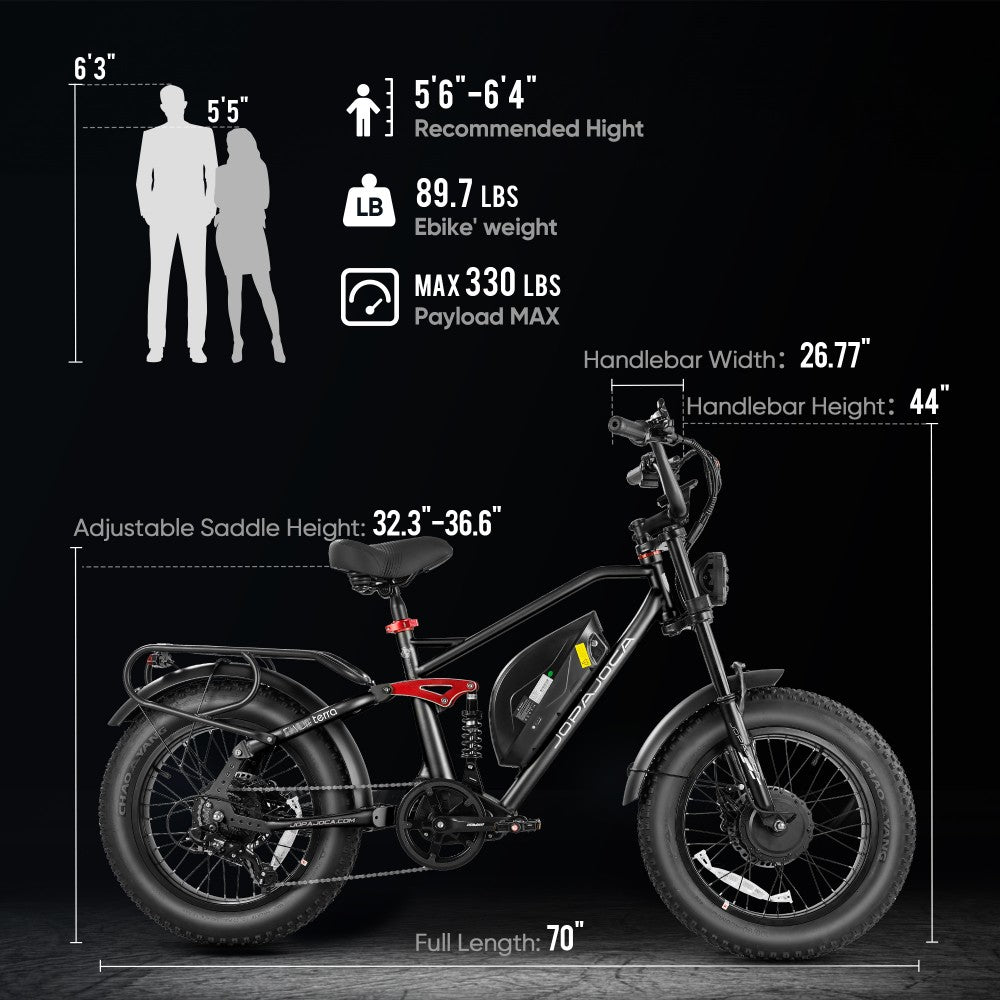

Size & Geometry
Recommended Rider Height: 5'4" - 6'4" or 165CM - 195CM
A - Total Length: 72.05" or 183CM
B - Wheel Base: 48.8" or 124CM
C - Seat Height: 32.3" - 40.2" or 82CM - 102CM
D - Handlebar Height: 42.5" or 108CM
E - Rim Diameter: 16.4" or 42CM
F - Standover: 24.2" or 61.5CM
G - Reach Distance: 22.8" or 58CM
H - Chain Stay Length: 18.9" or 48CM
I - Seat Angle: 74.7°
J - Seat Tube Length: 10.6" or 27CM
K - Bike Width: 28" or 71CM
L - Top Tube Length: 23.6" or 60CM
A - Total Length: 72.05" or 183CM
B - Wheel Base: 48.8" or 124CM
C - Seat Height: 32.3" - 40.2" or 82CM - 102CM
D - Handlebar Height: 42.5" or 108CM
E - Rim Diameter: 16.4" or 42CM
F - Standover: 24.2" or 61.5CM
G - Reach Distance: 22.8" or 58CM
H - Chain Stay Length: 18.9" or 48CM
I - Seat Angle: 74.7°
J - Seat Tube Length: 10.6" or 27CM
K - Bike Width: 28" or 71CM
L - Top Tube Length: 23.6" or 60CM
