| Brand | Coswheel |
| Model | Y16 |
| Max Speed | 45 km/h |
| Max Range | 90 km |
| Motor | 48V 750W |
| Peak Power | 1000W |
| Max Load | 150kg |
| Pedal Assist | 3 Levels |
| Climbing Angle | ≤25° slope |
Coswheel CT20 Electric Bike 1000W 48V25Ah(1200WH)
You have 30 days from receiving your item to request a return.
The Main components are covered by a two-year warranty.
View More>>
Ask a question
Guaranteed Safe Checkout
Coswheel CT20 Electric Bike 1000W 48V25Ah(1200WH)

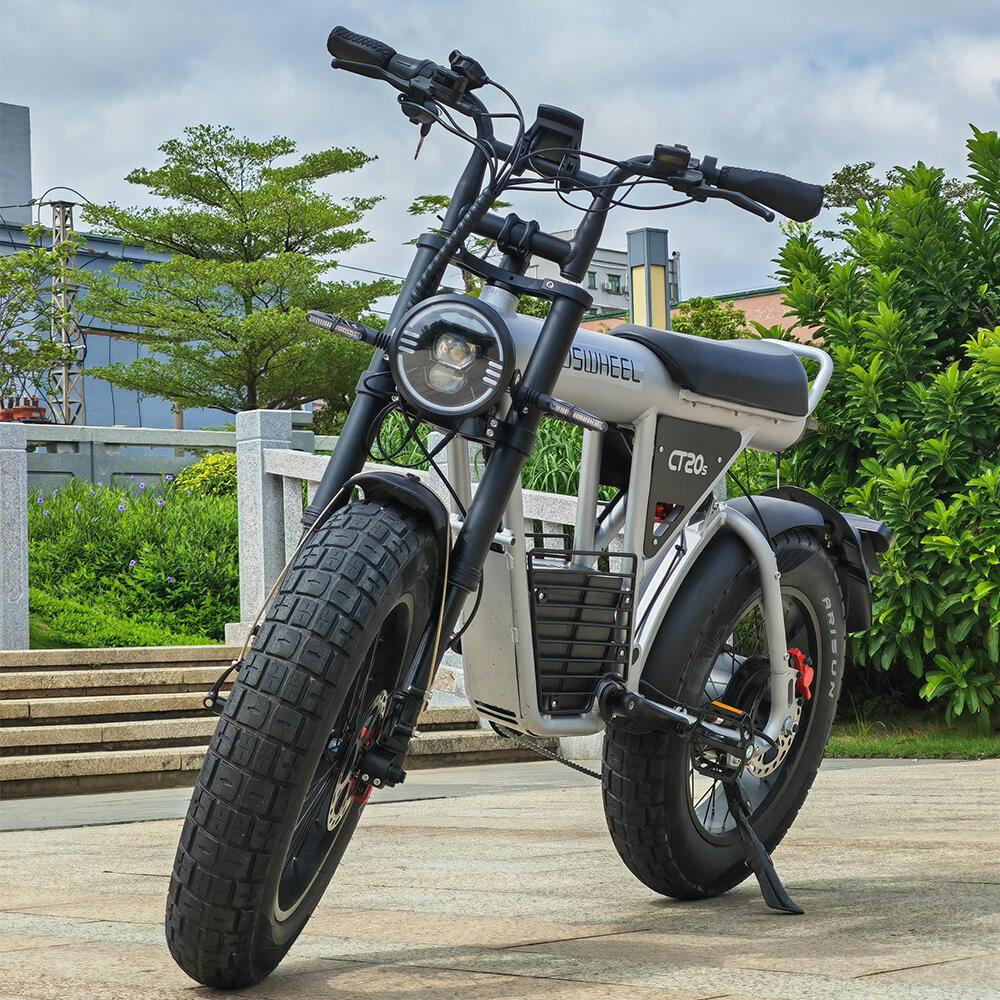

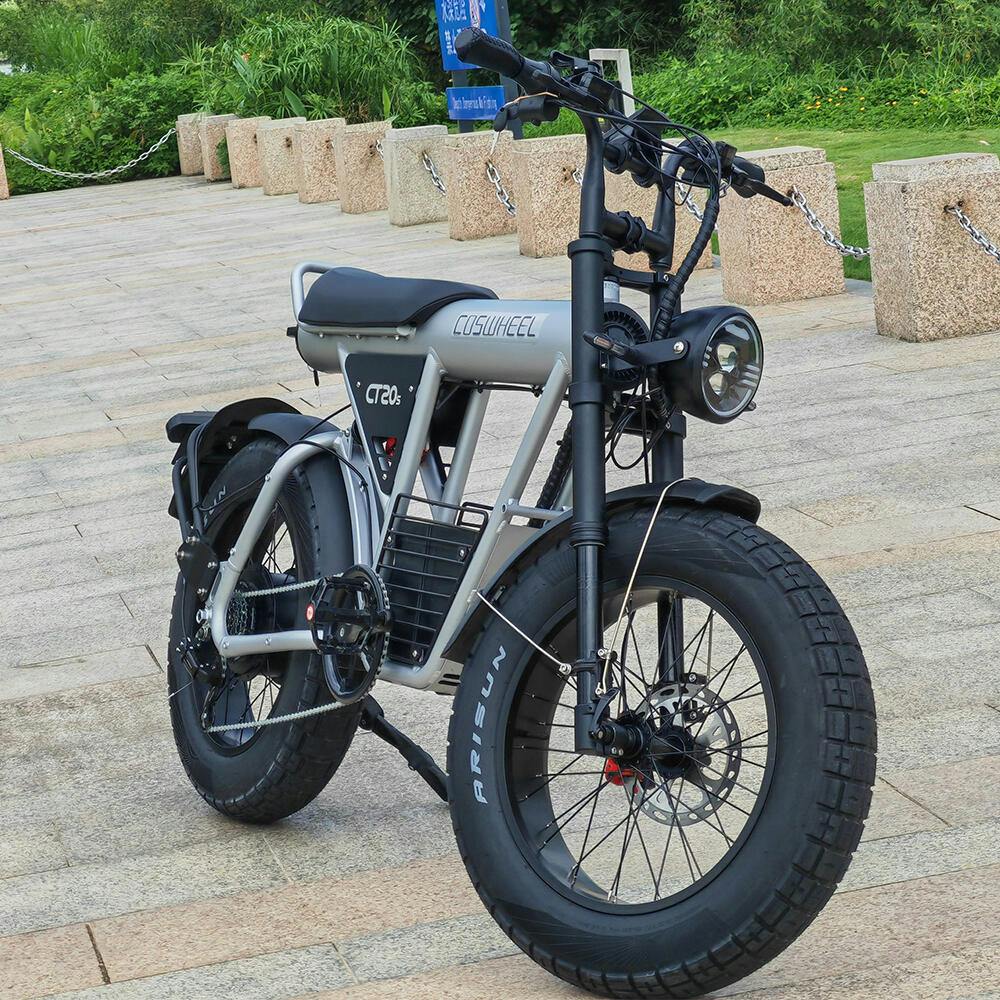

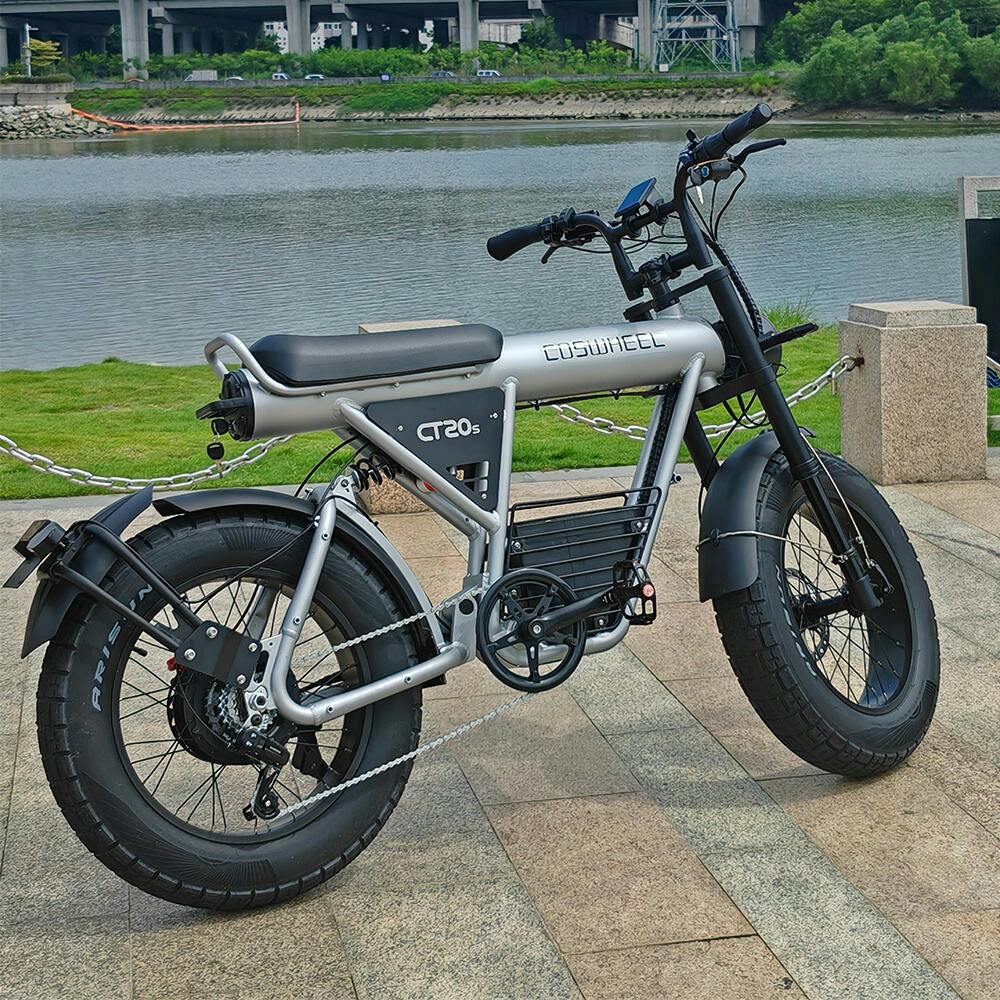

Coswheel CT20 20"*5.0 Fat Tire Electric Bike
1500W High-Performance Motor
The CT20 is powered by a high-torque rear hub motor with a peak output of 1500W and a rated power of 1000W, delivering stronger acceleration and higher speeds for a more exhilarating ride.
7-Speed Shimano Gearing
Equipped with a Shimano 7-speed cassette, the CT20 offers smooth gear transitions and makes climbing hills easier and more efficient.
25Ah Removable Battery
The 25Ah battery is securely mounted on the seat tube with a locking mechanism. This design lowers the center of gravity, allowing for a longer seat and more space for rider movement during cruising.
Built-in USB Charging Port
A 1A USB charging port located beneath the display allows you to conveniently charge your smartphone while riding, keeping you connected and safe even when your phone battery runs low.

Motorcycle-Grade Hydraulic Brakes
Featuring 2-piston hydraulic disc brakes with 3.0mm thick, 180mm rotors, the CT20 delivers exceptional stopping power in all conditions, ensuring safety and control at any speed.

Wide-Beam Flowing Headlight
The CT20 comes with a water-flow-style LED headlight that casts a broader and longer beam, enhancing visibility and safety during night rides.

Comfortable Padded Seat
Ride in comfort with a soft, thick leather saddle designed to absorb shocks and reduce fatigue on longer journeys.
Sturdy Rear Rack
A heavy-duty rear rack comes standard, capable of carrying passengers or cargo. It supports up to 150kg (safe load: 120kg), making it perfect for travel or errands.
Upgraded Thumb Throttle
The 2024 CT20 features an upgraded thumb throttle, replacing the previous grip twist design. It now includes a quick-release mechanism for easier accessory installation and replacement.


| Battery Type | Lithium battery |
| Battery Capacity | 15Ah (720Wh) |
| Voltage | 48V |
| Charging Time | 7–10h |
| Charger Input | 100–240VAC 50/60Hz |
| Charger Output | 48V 3A |
| Removable Battery | Yes |
| Frame Material | Iron Frame |
| Tire Size | All Terrain Tire 16" × 4.0" H5176 30TPI |
| Front Suspension | Double-Crown Front Fork, 630mm length, 135mm gap, 80mm travel |
| Rear Suspension | Dual Shock Absorbers, 185mm spacing, 5mm wire diameter |
| Handlebars | Black, 25.4×640mm×180mm, 17° |
| Chain | Anti-rust, 116 Mesh |
| Rear Derailleur | Single Speed |
| Crank | 46T Double Cover Fish Shape |
| Sensors | Speed Sensor |
| Pedal | Black |
| Brake Type | 160 mm Disc Brakes |
| Headlight | LED 6W |
| Taillight | Yes, flashes when braking |
| Turn Signals | Yes |
| Horn/Bell | Horn |
| Display Type | LCD Display |
| Dashboard Info | Mileage, real-time speed, km/mi, fault code, battery etc. |
| Throttle Type | Grip Twist Throttle |
| Mobile App Support | No |
| Suitable Height | 4'11" - 5'11" (4.9ft-5.9ft) |
| Seat Height | 29.53" (75cm) |
| Bike Height | 39.37" (100cm) |
| Wheelbase | 38.58" (98cm) |
| Handlebar Width | 25.59" (65cm) |
| Bike Weight | ≥97lbs (with battery) |
| Maximum Load | 330lbs (150kg) |
| Safe Load | 265lbs (120kg) |
| Overall Size | 60.24" × 25.59" × 39.37" (153×65×100cm) |
| Package Size | 55.91" × 12.60" × 32.28" (142×32×82cm) |
| Package Contents | 1 x Coswheel Y16 Off-road Moped Style eBike |
| 1 x Charger | |
| 1 x User Manual | |
| 2 x Fender | |
| 1 x Tool Kit |
