Maison TTGO Z5 27.5" Mid-Drive City Electric Bike 250W 36V 18Ah
Fournisseur: TTGO

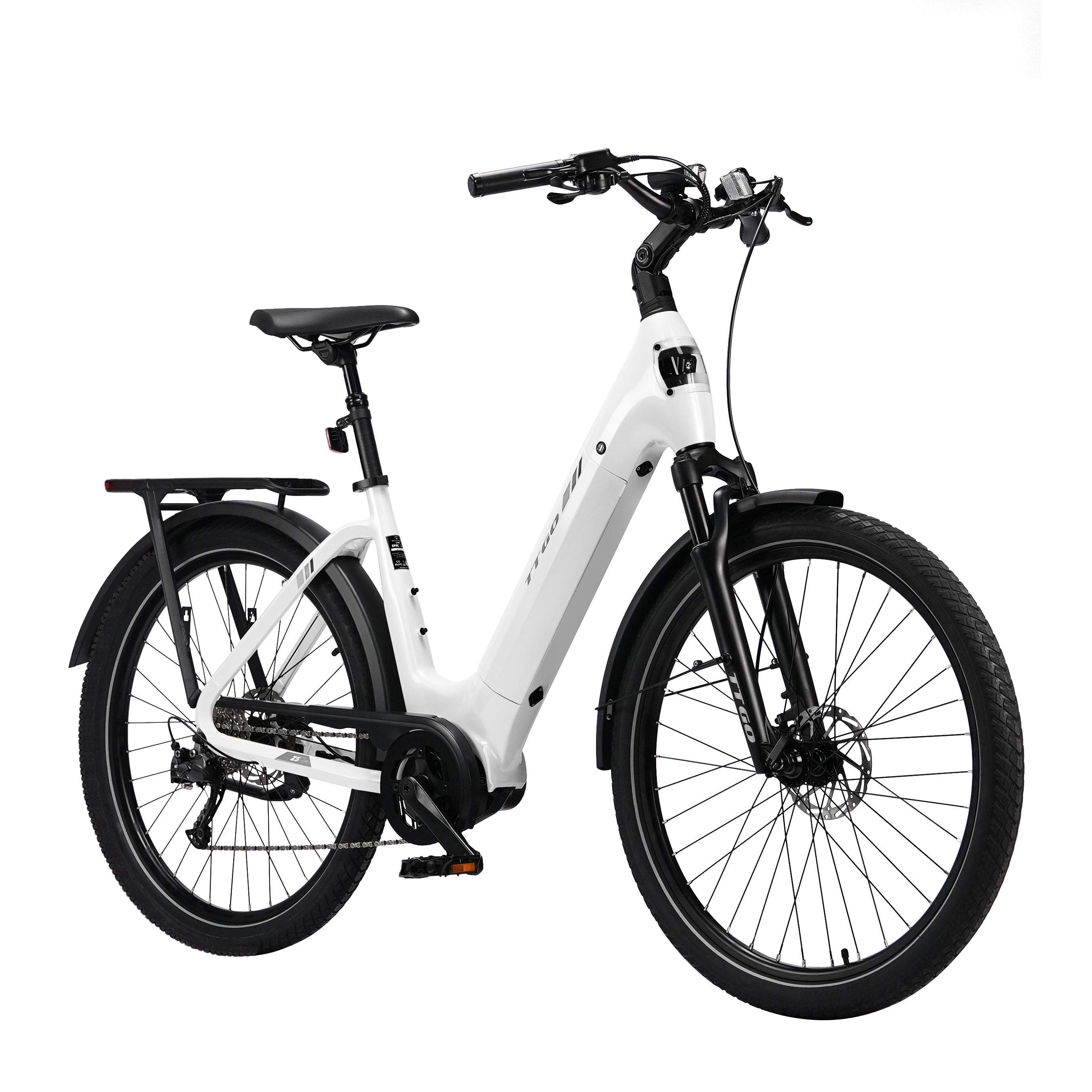

TTGO Z5 27.5" Mid-Drive City Electric Bike 250W 36V 18Ah

Prix de vente €1.299,00

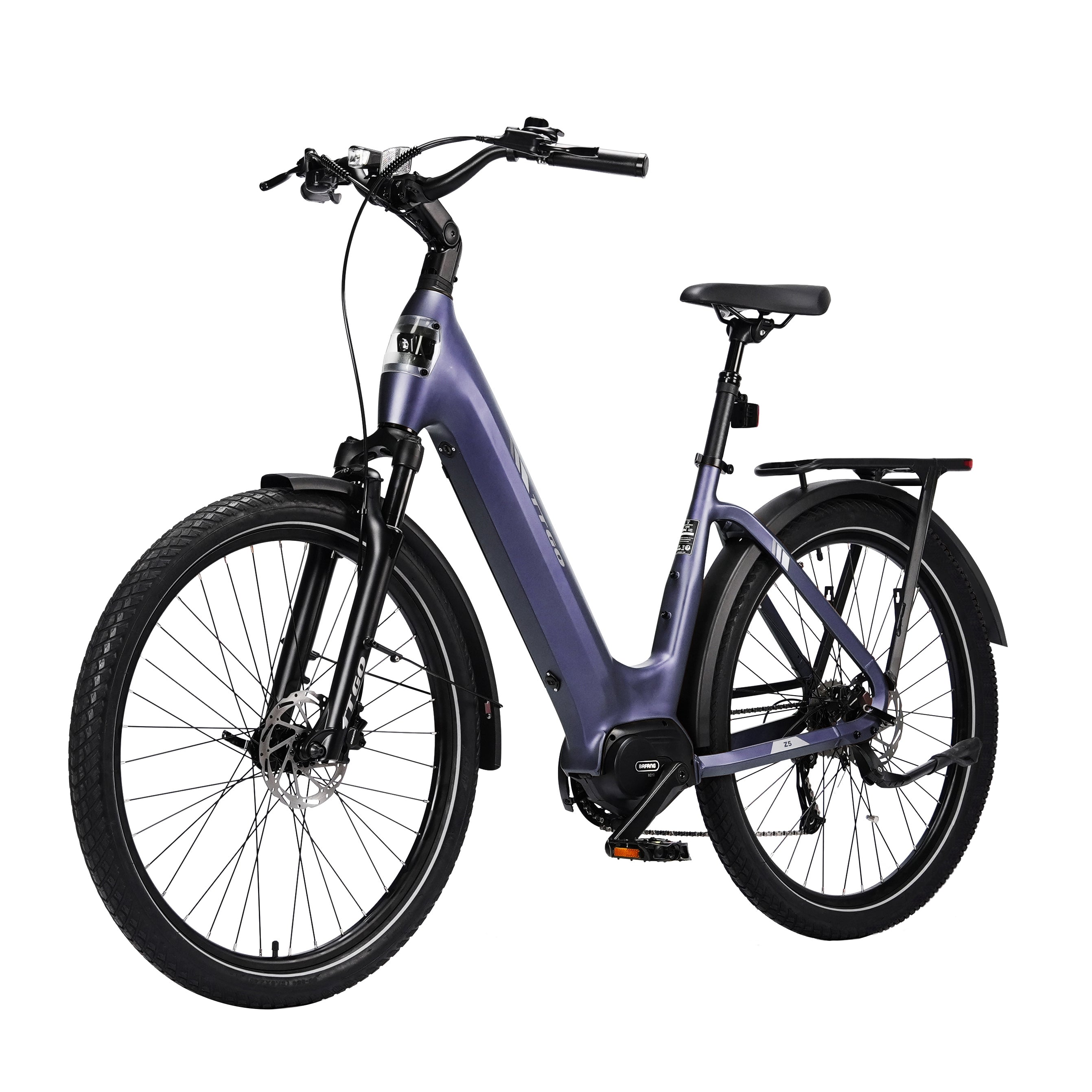

Color: Blue
Ajouter à la liste de souhaits

Order in the next to get it between and (5-7 business days)

Poser une question
Partager

Guaranteed Safe Checkout

Visa
PayPal
Mastercard
American Express
Google Pay
Discover
JCB
Diners Club
TTGO Z5 27.5" Mid-Drive City Electric Bike 250W 36V 18Ah

TTGO Z5 27.5" Mid-Drive City Electric Bike 250W 36V 18Ah

Product Specifications

Product Type Mid-Drive City Electric Bike
Motor 36V 250W Bafang Mid-Drive Motor
Max Effective Torque 75Nm
Sensor Torque Sensor
Battery 36V 18Ah Lithium Battery
Battery Capacity 648Wh
Pedal Assist Range 110–130KM
Default Speed 25KM/H
Brakes Tektro Hydraulic Disc Brakes
Transmission Shimano 9-Speed
Tires CST 27.5" × 2.4"
Frame 27.5" 6061 Aluminum Alloy Frame
Fork Suspension Fork
Suspension Front Suspension Fork + Suspension Seat Post
Seat Post ZOOM Suspension Seat Post
Stem Adjustable Stem
Display LCD Stem Display
Pedal Assist 5 Levels
Charger 42V 3A Charger
Charging Time 6–8 Hours
Battery Waterproof Rating IPX5
Headlight Embedded Enhanced LED Light
Taillight E-mark Taillight
Handlebars Aluminum Alloy
Wheel Rack Aluminum
Pedals Aluminum Frame Pedals
Chain Ring Steel, 1/2" × 11/128" × 116L
Max Load 125KG
Recommended Rider Height 165–195CM
Net Weight 28.5KG
Gross Weight 36.3KG
Carton Size 148 × 25 × 85CM

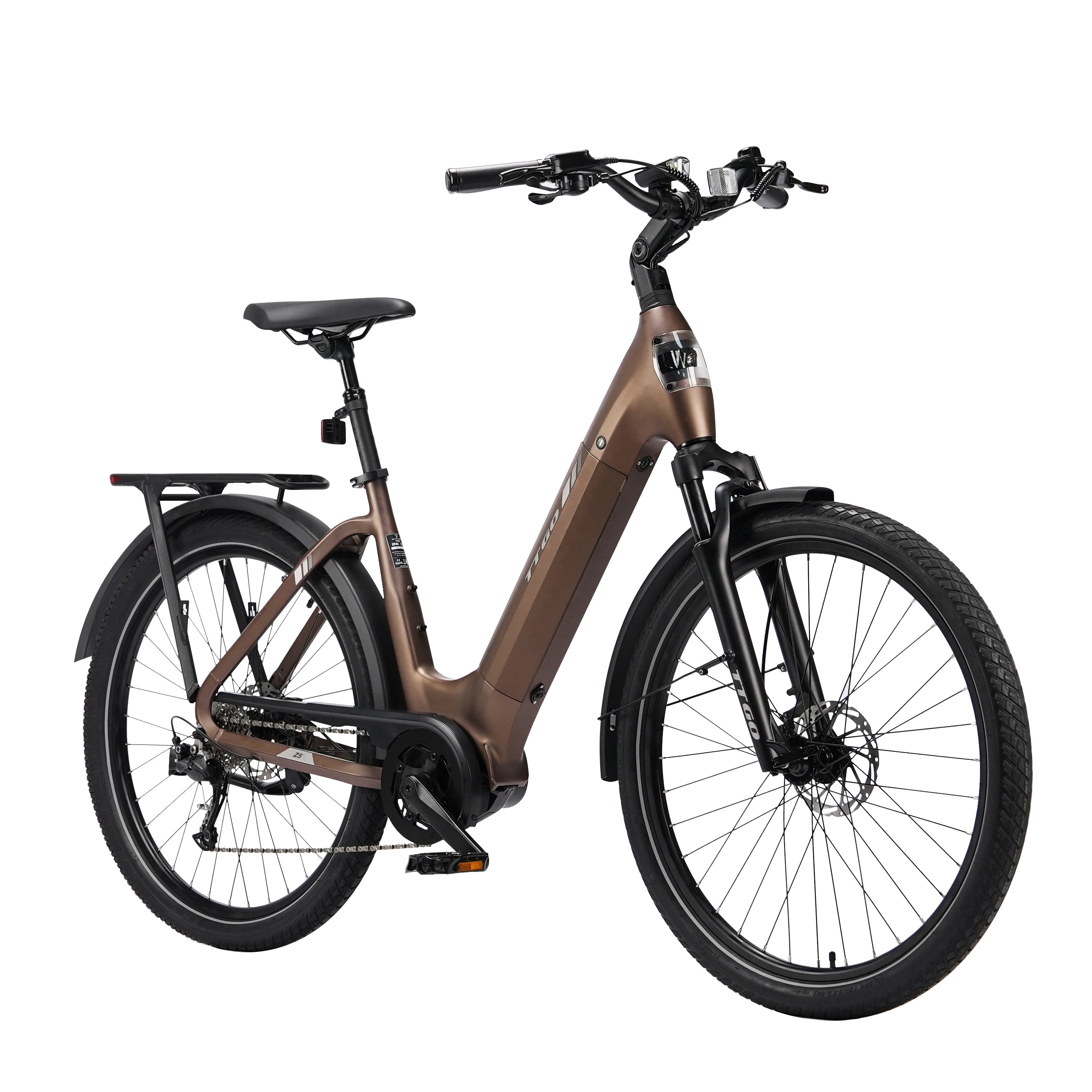

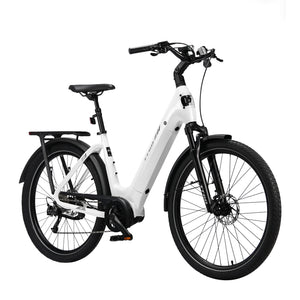

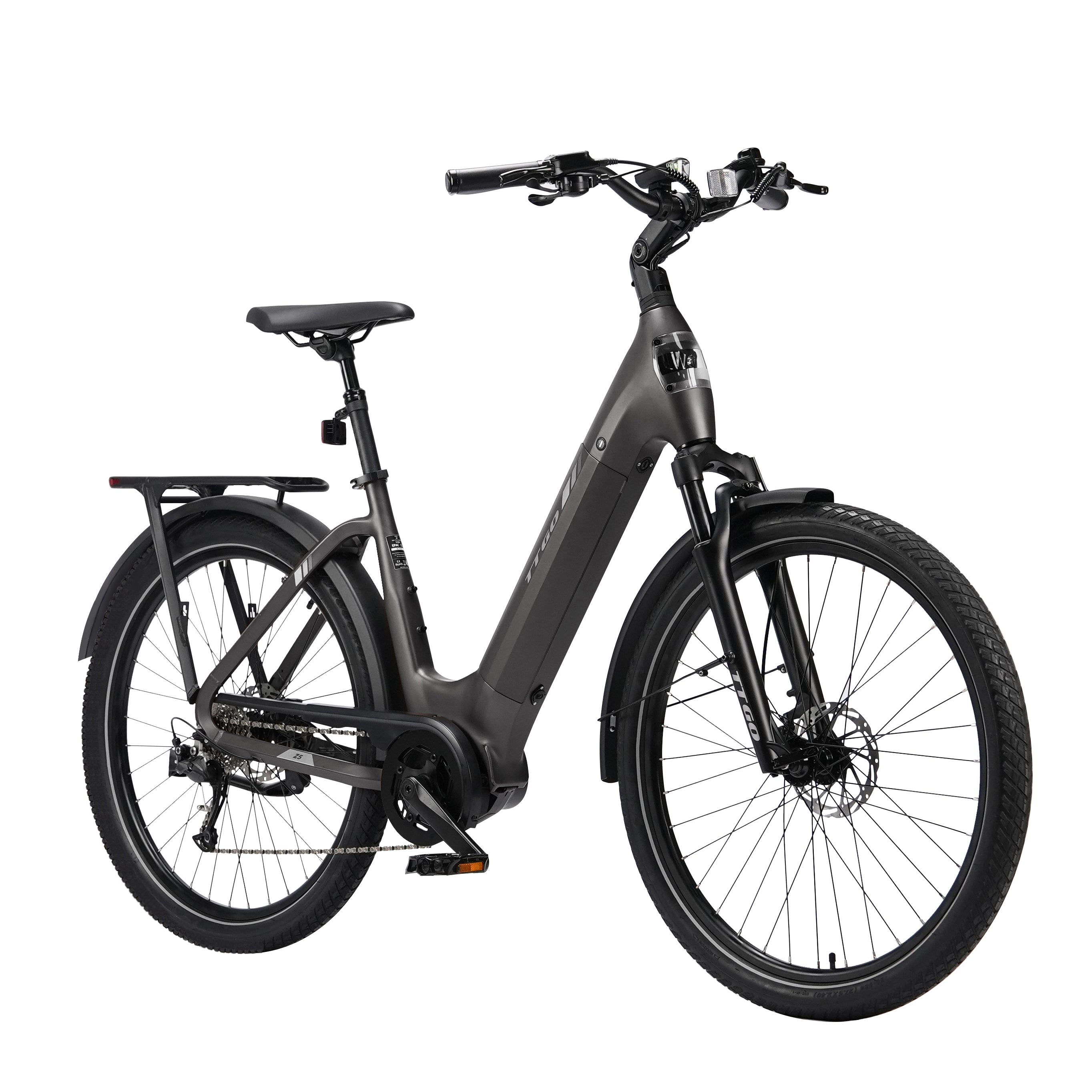

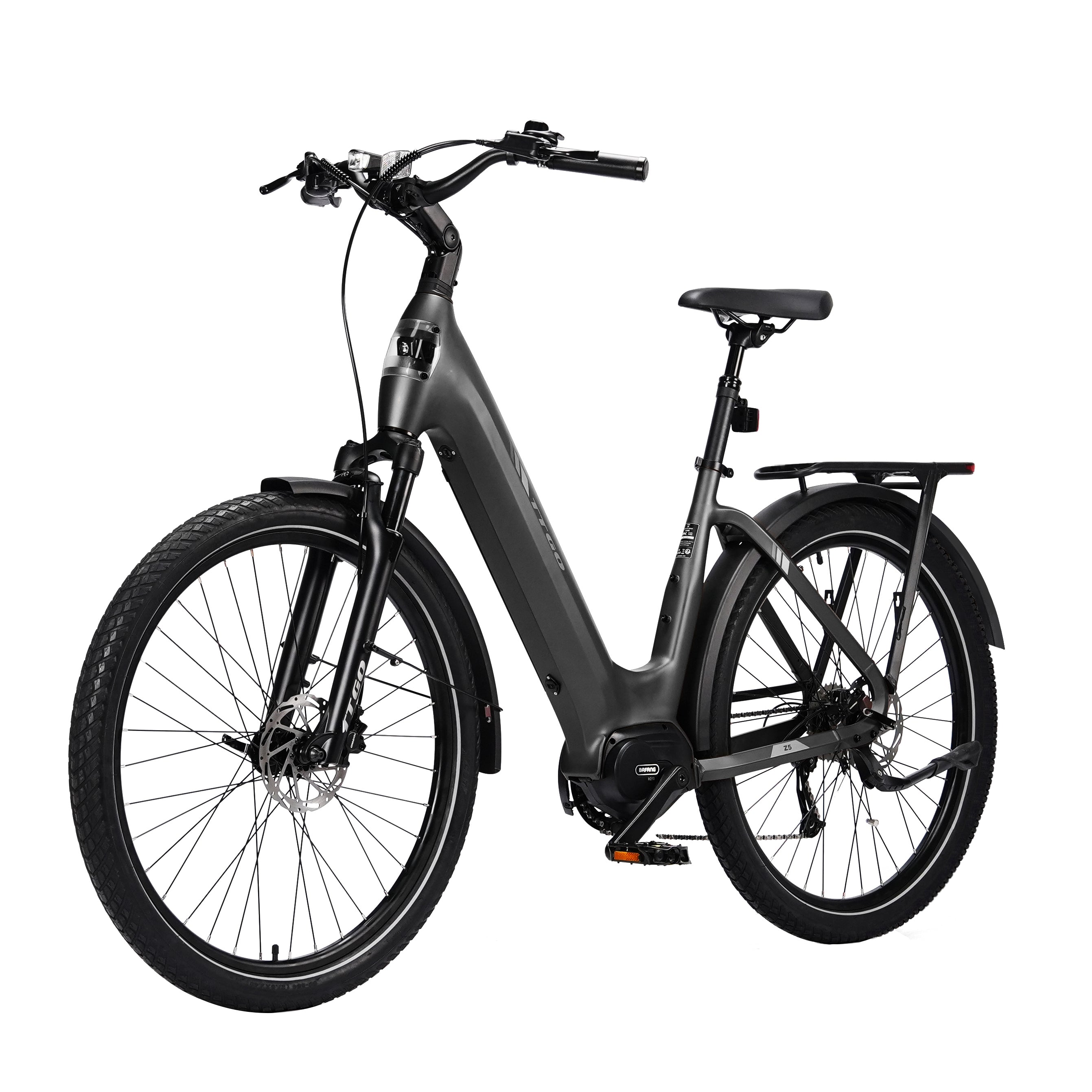

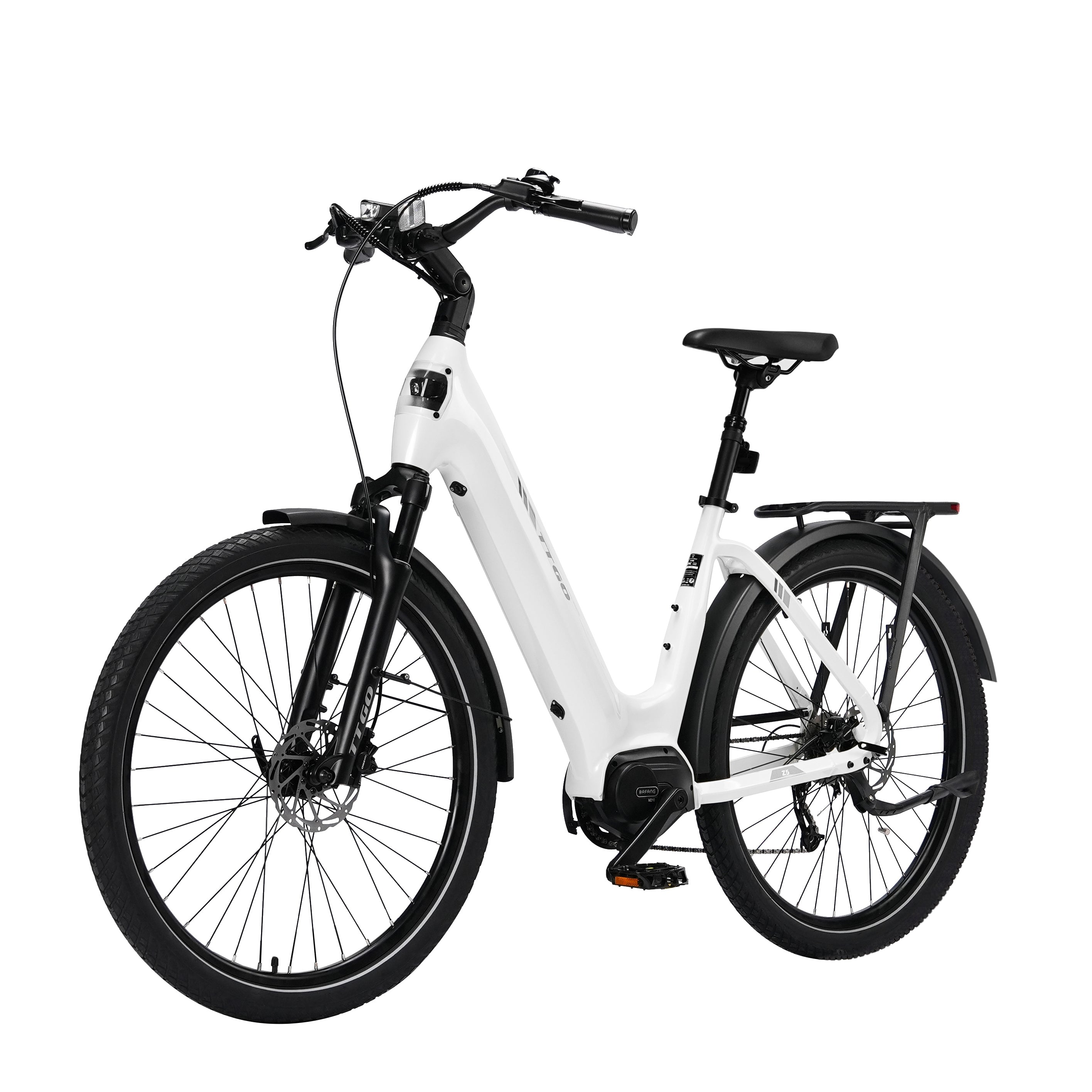

Available Colors Grey / Blue / White / Brown
Overall Length 186CM
Handlebar Height 115–120CM
Wheelbase 125CM
Seat Height 90–104CM
Upper Pipe Length 63CM
Wheel Diameter 71CM
Handlebar Width 65CM
The TTGO Z5 uses a 36V 250W Bafang mid-drive motor with 75Nm torque. This setup delivers smoother power transfer and a more natural riding feel compared with many basic rear hub city eBikes.
The TTGO Z5 offers an estimated pedal-assist range of 110–130KM, depending on rider weight, assist level, terrain, tire pressure, wind, and riding style.
Yes. With a Bafang mid-drive motor, torque sensor, 36V 18Ah battery, Shimano 9-speed drivetrain, Tektro hydraulic disc brakes, and 27.5×2.4 tires, the TTGO Z5 is well suited for daily commuting, longer city rides, and light mixed-road use.
The main difference is its mid-drive system. The TTGO Z5 combines a Bafang mid-drive motor, torque sensor, Shimano 9-speed transmission, hydraulic disc brakes, and suspension comfort features, giving it a more premium and controlled riding experience than standard entry-level city eBikes.

Description

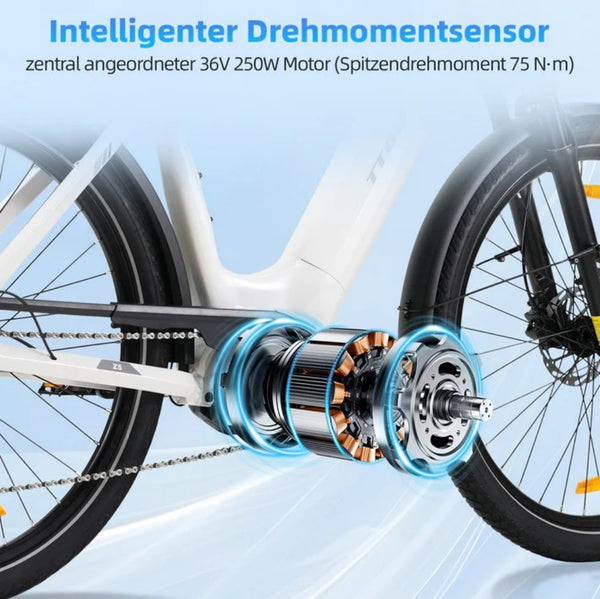

250W Bafang Mid-Drive Motor

The 250W Bafang mid-drive motor delivers smooth pedal assistance with a legal top speed of 25KM/H. Designed as a pedal-assist electric bike, it does not include a throttle.

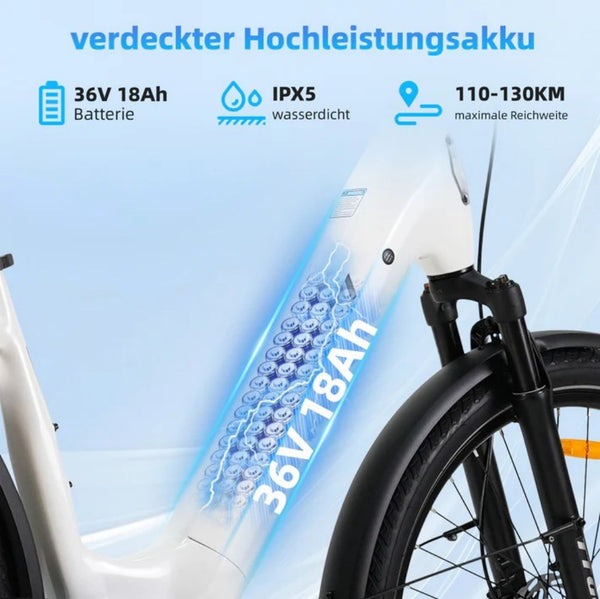

36V 18Ah Long-Range Battery

The 36V 18Ah battery provides up to 120KM pedal-assist range, making it suitable for daily commuting, longer city rides, and weekend trips.

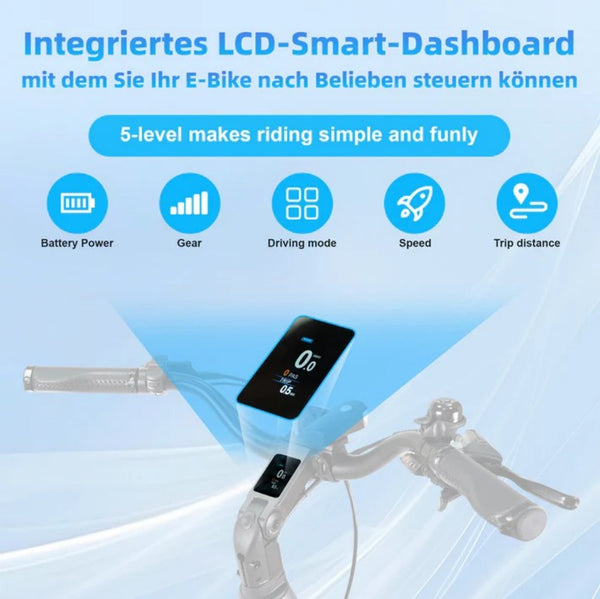

LCD Stem Display

The LCD stem display clearly shows key riding data, including speed, battery level, assist mode, and mileage, helping you stay informed during every ride.

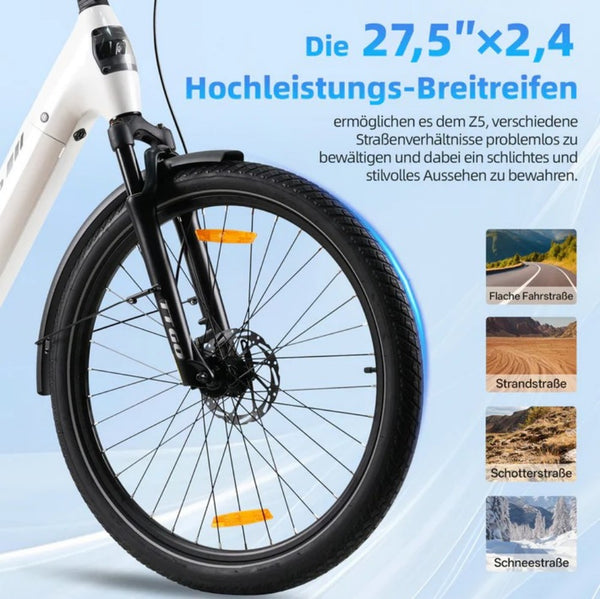

27.5×2.4 CST Wide Tires

CST 27.5×2.4 tires offer better grip, stability, and comfort across city streets, bike lanes, and light mixed-road conditions.

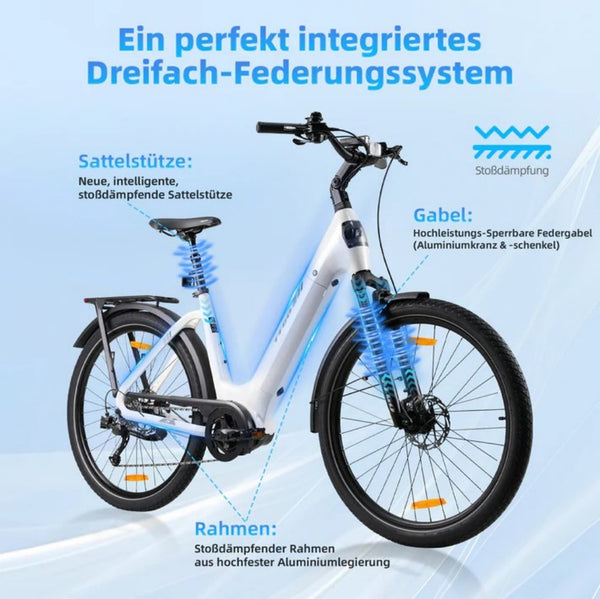

Full Comfort Suspension Setup

Front suspension fork and ZOOM suspension seat post help absorb road vibration, giving you a smoother and more comfortable riding experience.

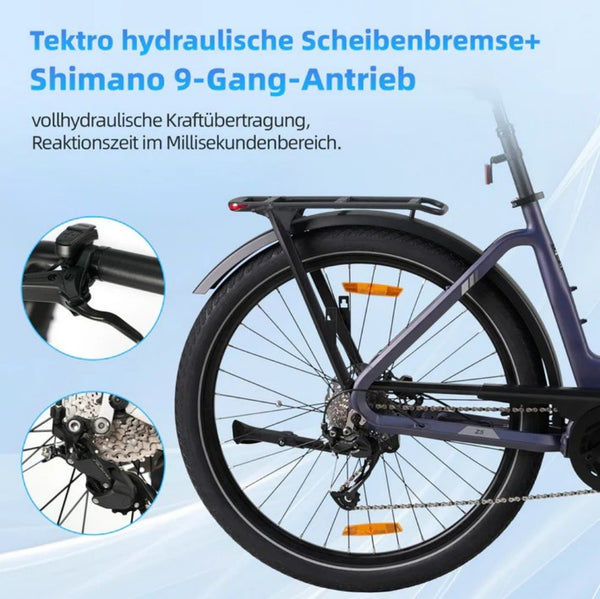

Shimano 9-Speed Drivetrain

Shimano 9-speed gearing provides smoother shifting and better control for flat roads, light climbs, and changing city riding conditions.

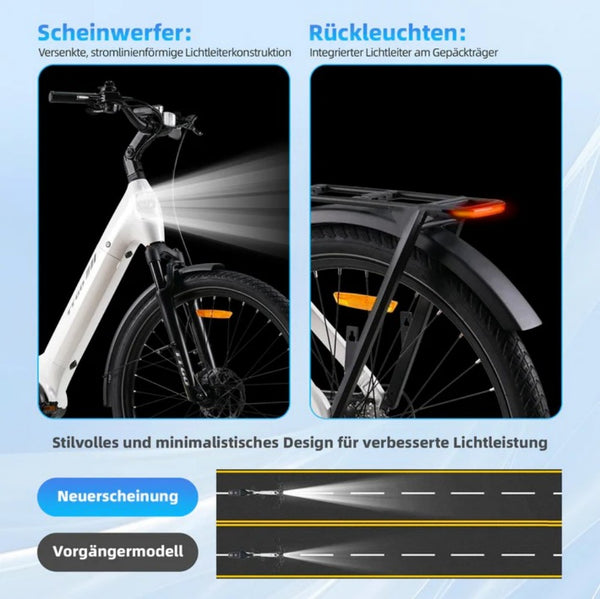

Embedded Front & Rear Lighting

Streamlined embedded headlight design provides brighter front illumination, while the integrated rear rack taillight improves visibility and creates a cleaner, more premium look.

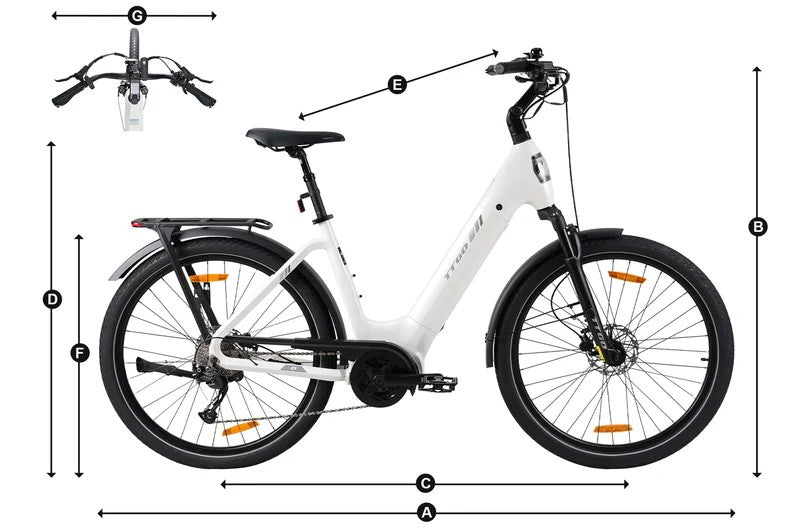

Bike Dimensions

[A] Overall Length 186 CM
[B] Handlebar Height 115–120 CM
[C] Wheelbase 125 CM
[D] Seat Height 90–104 CM
[E] Top Tube Length 63 CM
[F] Wheel Diameter 71 CM
[G] Handlebar Width 65 CM
