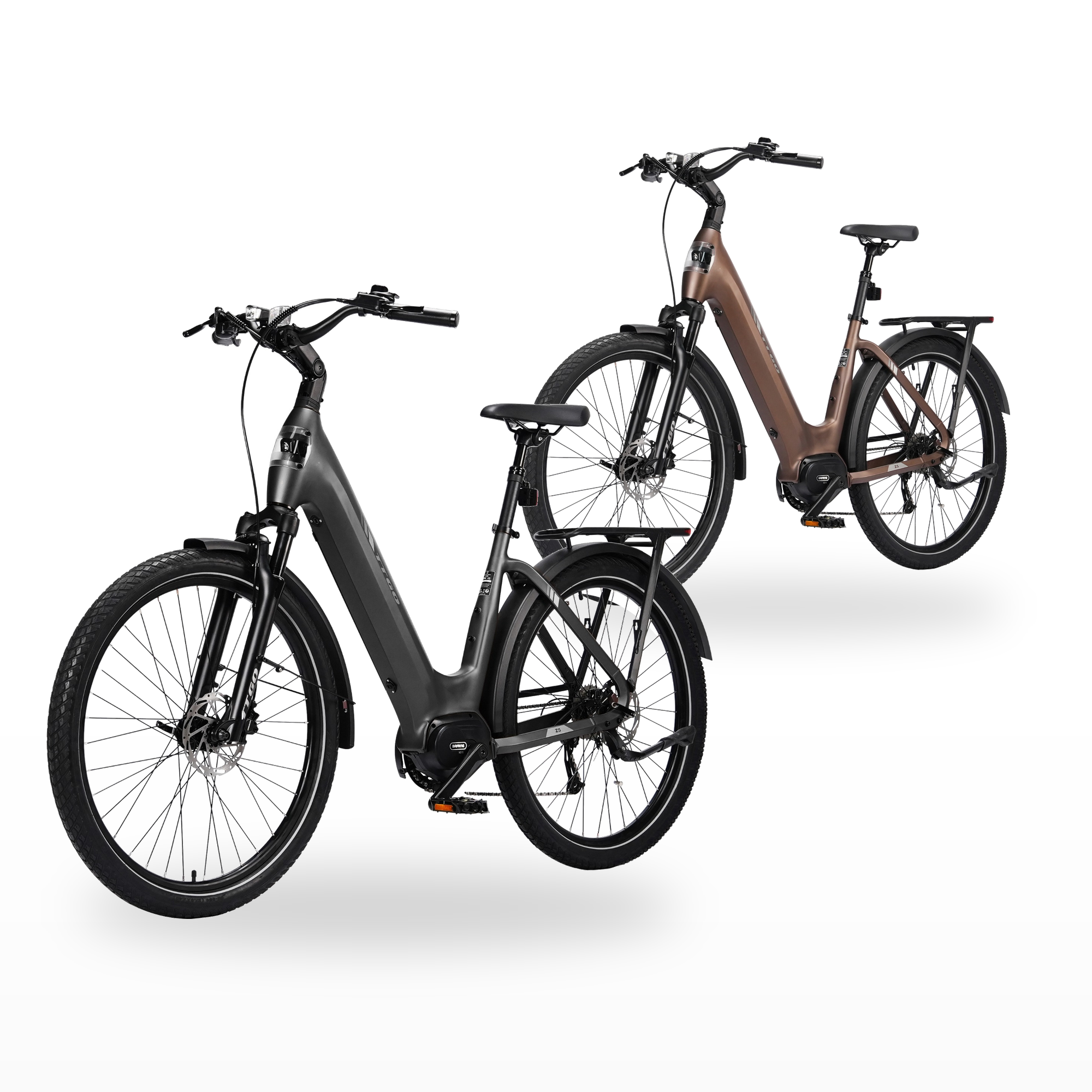

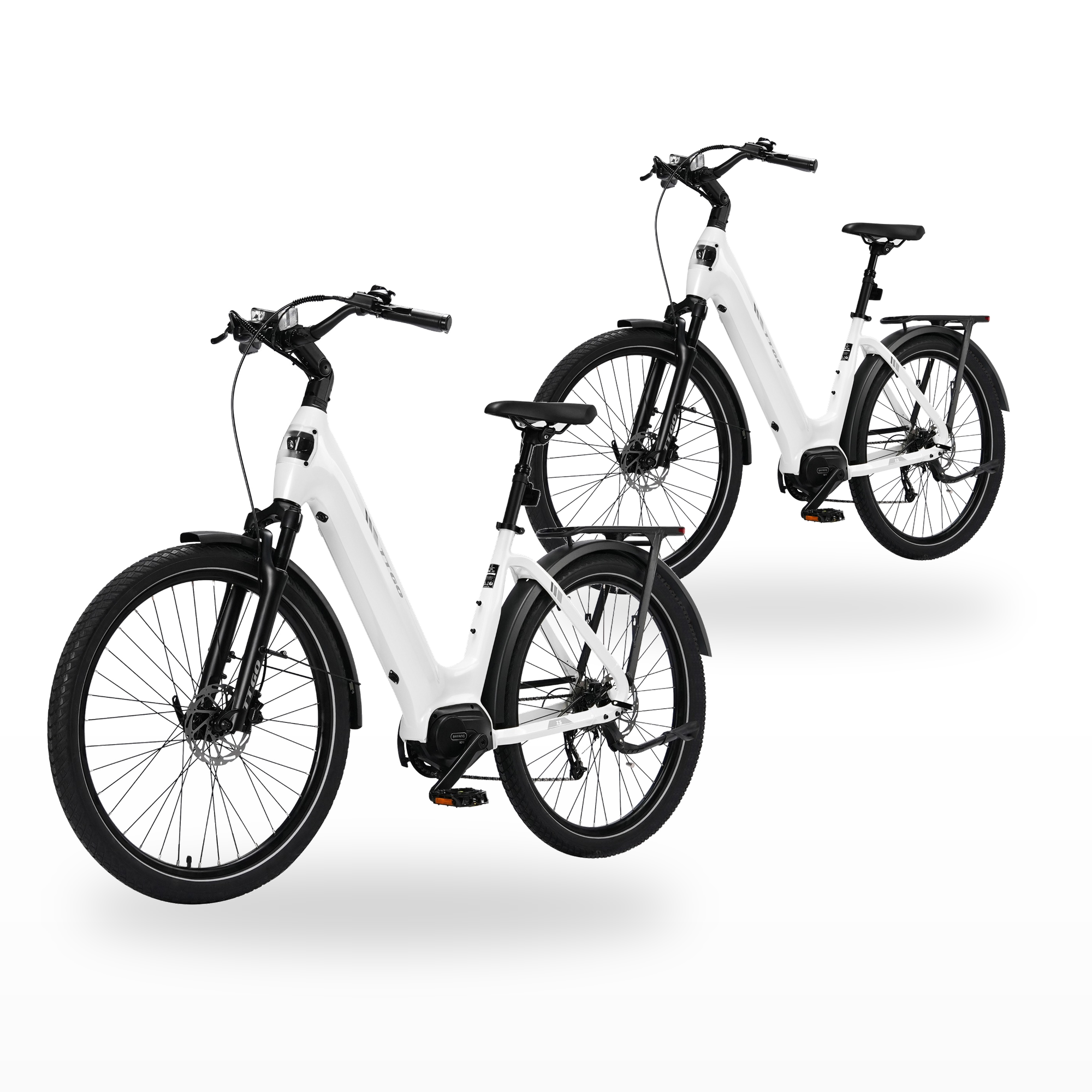

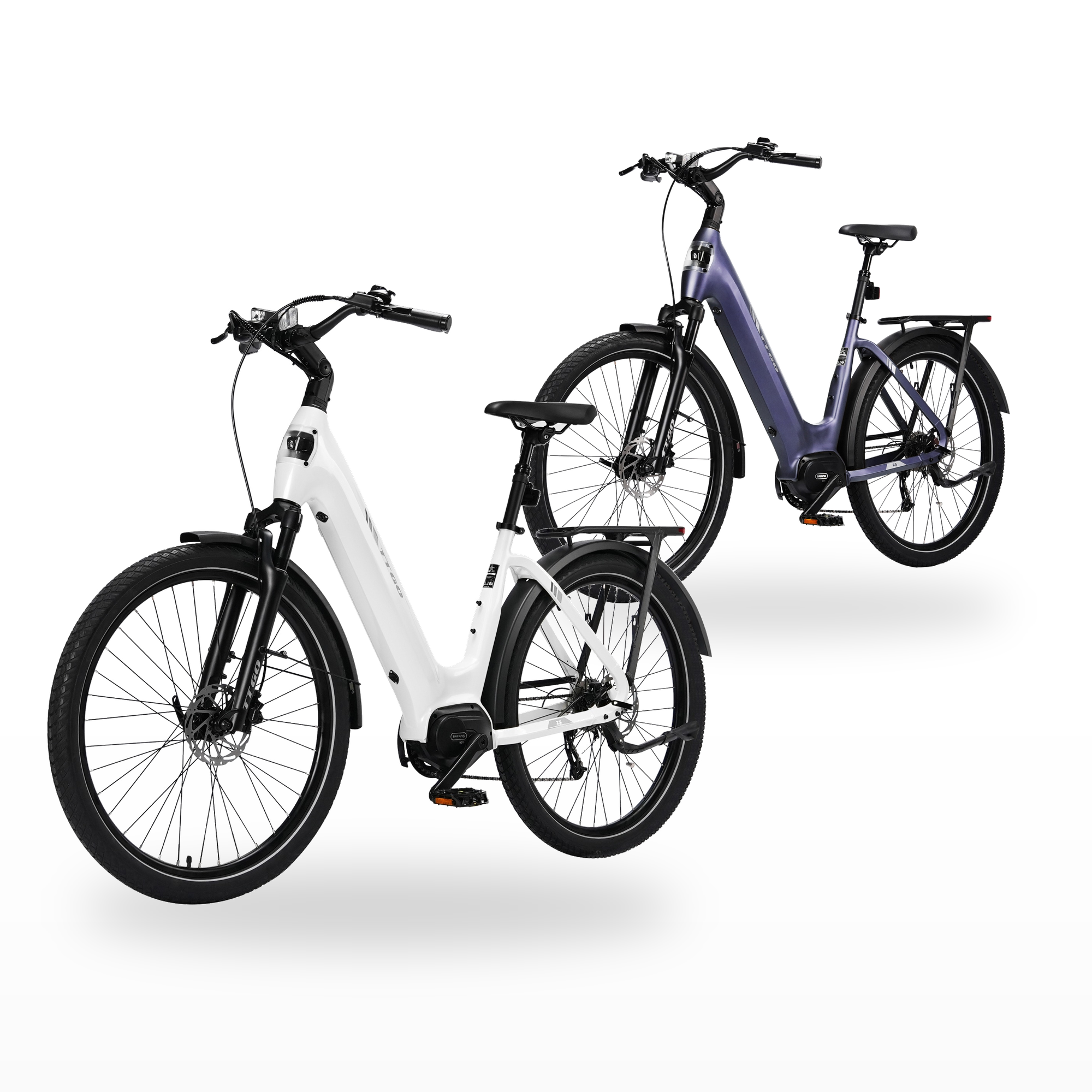

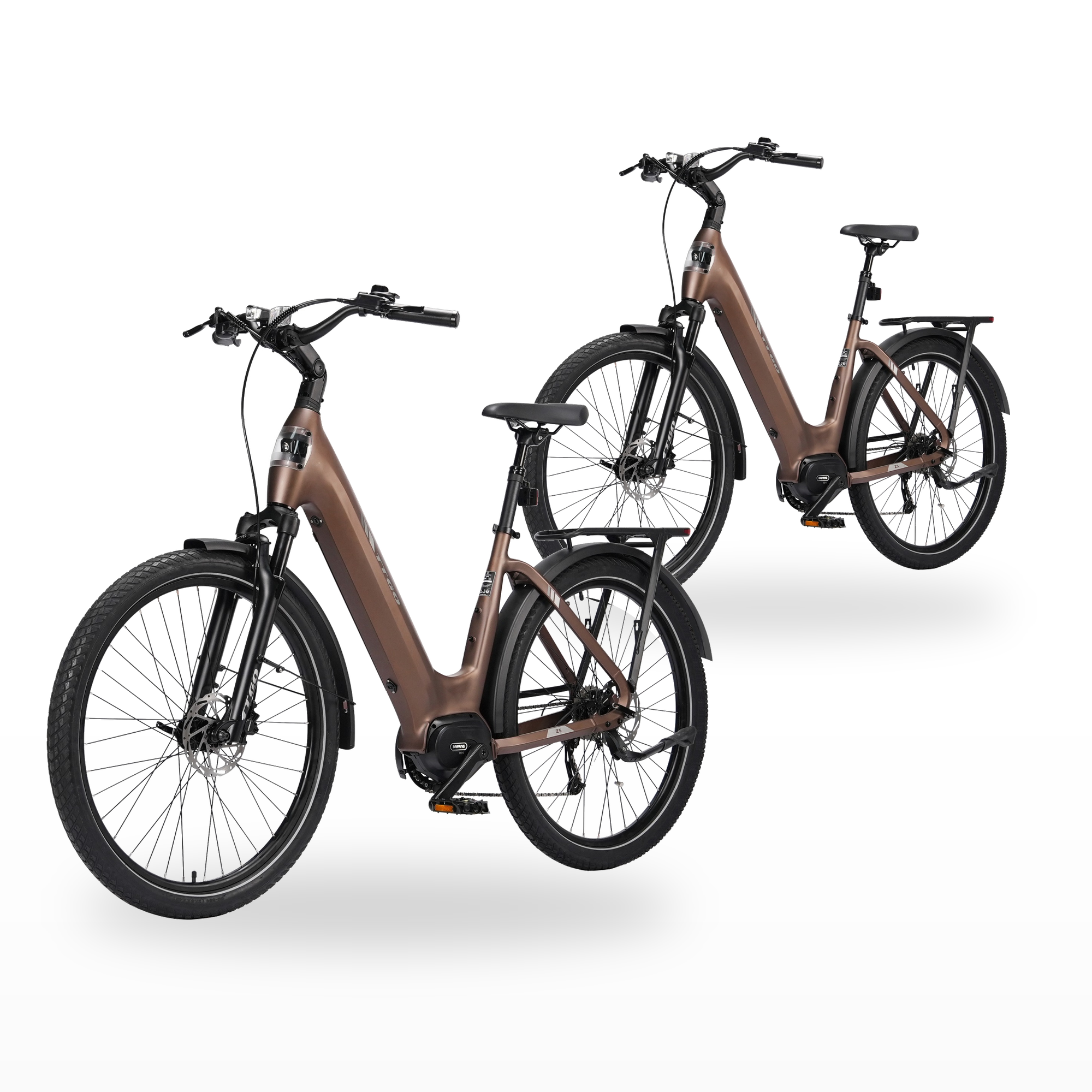

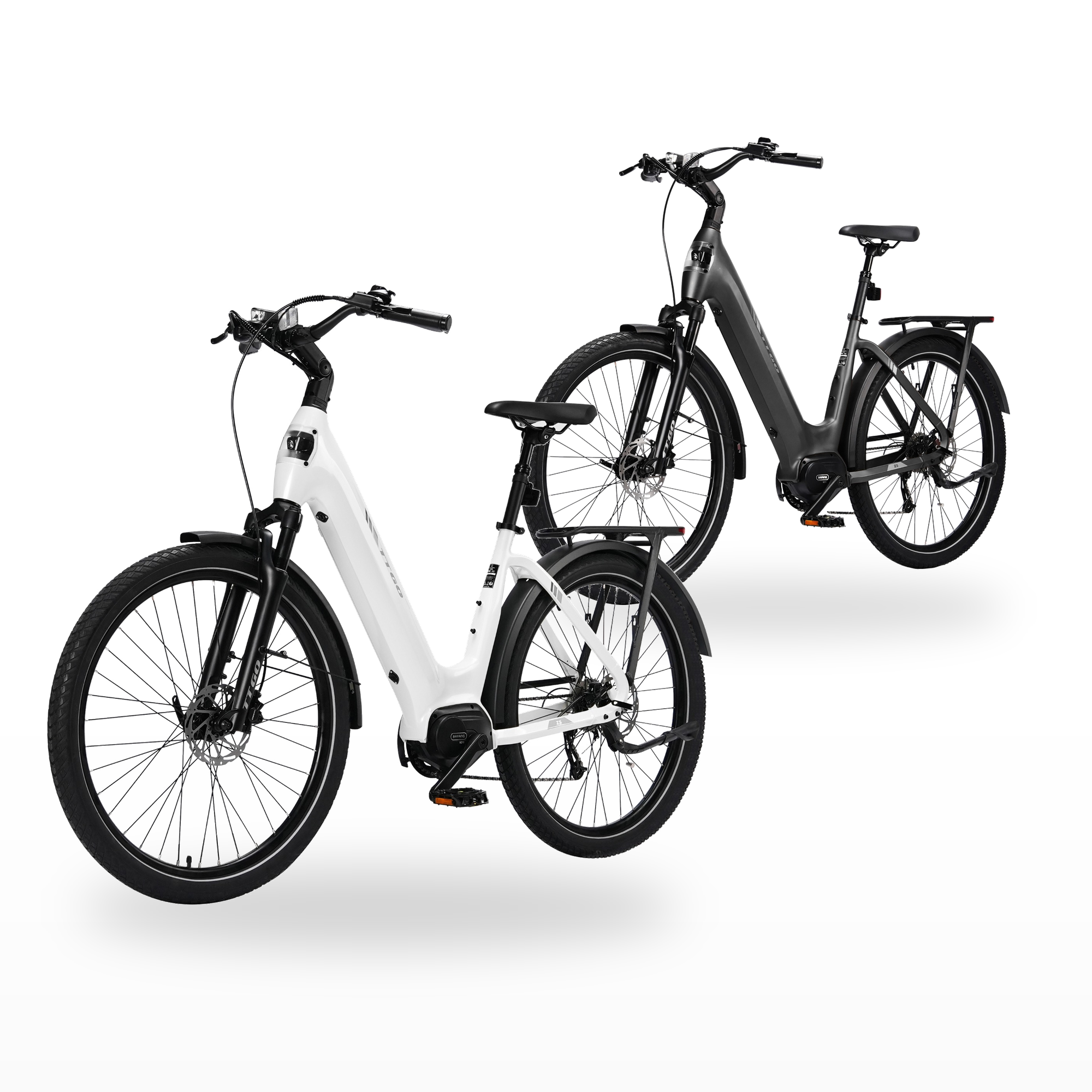

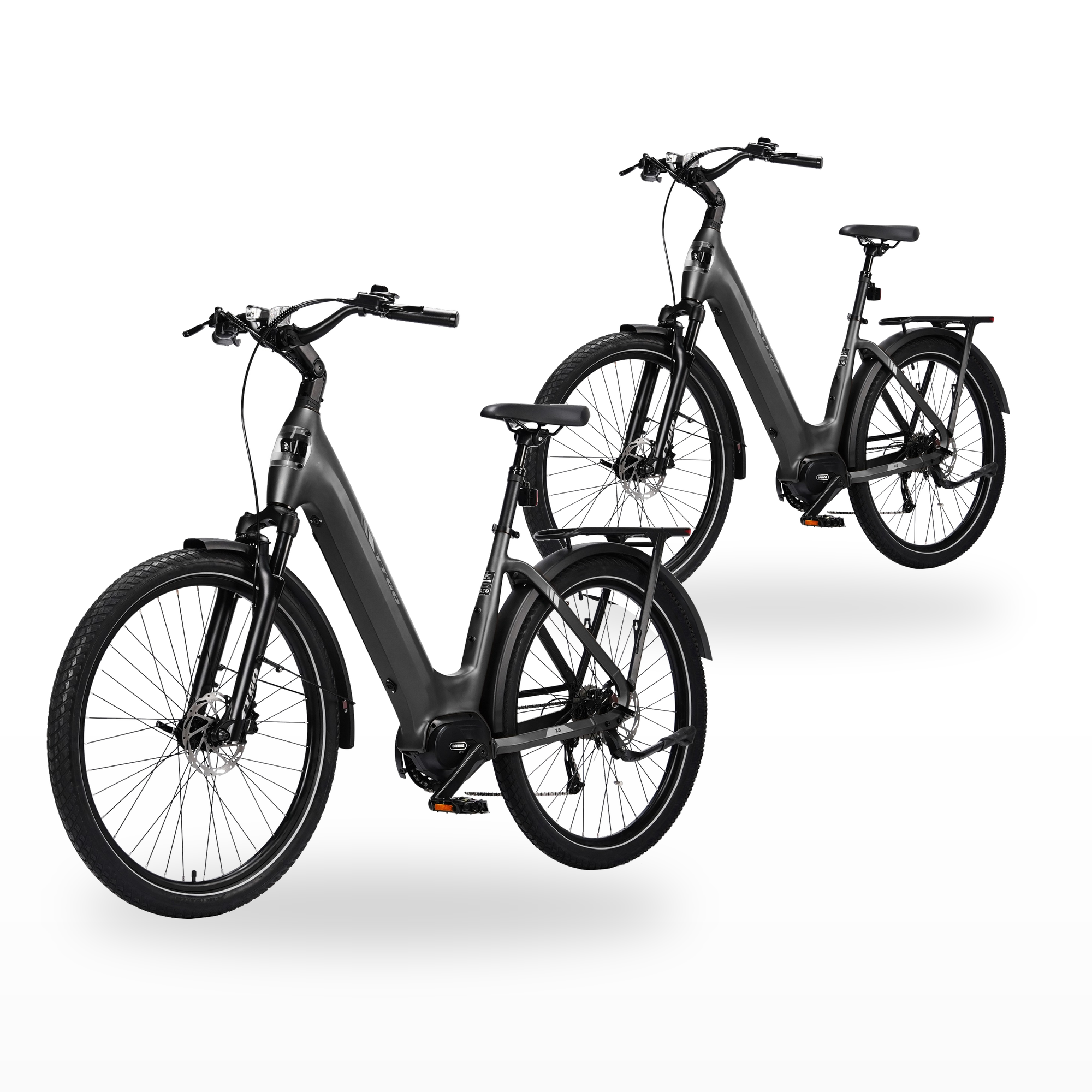

Name: TTGO Z5 27.5" elektrokolo se středovým pohonem City 250W 36V 18Ah
Brand: TTGO
Price: 2549.0 EUR
Availability: InStock

Specifications

Product Specifications

Product Type	Mid-Drive City Electric Bike
Motor	36V 250W Bafang Mid-Drive Motor
Max Effective Torque	75Nm
Sensor	Torque Sensor
Battery	36V 18Ah Lithium Battery
Battery Capacity	648Wh
Pedal Assist Range	110–130KM
Default Speed	25KM/H
Brakes	Tektro Hydraulic Disc Brakes
Transmission	Shimano 9-Speed
Tires	CST 27.5" × 2.4"
Frame	27.5" 6061 Aluminum Alloy Frame
Fork	Suspension Fork
Suspension	Front Suspension Fork + Suspension Seat Post
Seat Post	ZOOM Suspension Seat Post
Stem	Adjustable Stem
Display	LCD Stem Display
Pedal Assist	5 Levels
Charger	42V 3A Charger
Charging Time	6–8 Hours
Battery Waterproof Rating	IPX5
Headlight	Embedded Enhanced LED Light
Taillight	E-mark Taillight
Handlebars	Aluminum Alloy
Wheel Rack	Aluminum
Pedals	Aluminum Frame Pedals
Chain Ring	Steel, 1/2" × 11/128" × 116L
Max Load	125KG
Recommended Rider Height	165–195CM
Net Weight	28.5KG
Gross Weight	36.3KG
Carton Size	148 × 25 × 85CM
Available Colors	Grey / Blue / White / Brown
Overall Length	186CM
Handlebar Height	115–120CM
Wheelbase	125CM
Seat Height	90–104CM
Upper Pipe Length	63CM
Wheel Diameter	71CM
Handlebar Width	65CM

What motor does the TTGO Z5 electric bike use?

The TTGO Z5 uses a 36V 250W Bafang mid-drive motor with 75Nm torque. This setup delivers smoother power transfer and a more natural riding feel compared with many basic rear hub city eBikes.

How far can the TTGO Z5 ride on one charge?

The TTGO Z5 offers an estimated pedal-assist range of 110–130KM, depending on rider weight, assist level, terrain, tire pressure, wind, and riding style.

Is the TTGO Z5 suitable for city commuting and longer rides?

Yes. With a Bafang mid-drive motor, torque sensor, 36V 18Ah battery, Shimano 9-speed drivetrain, Tektro hydraulic disc brakes, and 27.5×2.4 tires, the TTGO Z5 is well suited for daily commuting, longer city rides, and light mixed-road use.

What makes the TTGO Z5 different from a regular city eBike?

The main difference is its mid-drive system. The TTGO Z5 combines a Bafang mid-drive motor, torque sensor, Shimano 9-speed transmission, hydraulic disc brakes, and suspension comfort features, giving it a more premium and controlled riding experience than standard entry-level city eBikes.

Description

250W Bafang Mid-Drive Motor

The 250W Bafang mid-drive motor delivers smooth pedal assistance with a legal top speed of 25KM/H. Designed as a pedal-assist electric bike, it does not include a throttle.

36V 18Ah Long-Range Battery

The 36V 18Ah battery provides up to 120KM pedal-assist range, making it suitable for daily commuting, longer city rides, and weekend trips.

LCD Stem Display

The LCD stem display clearly shows key riding data, including speed, battery level, assist mode, and mileage, helping you stay informed during every ride.

27.5×2.4 CST Wide Tires

CST 27.5×2.4 tires offer better grip, stability, and comfort across city streets, bike lanes, and light mixed-road conditions.

Full Comfort Suspension Setup

Front suspension fork and ZOOM suspension seat post help absorb road vibration, giving you a smoother and more comfortable riding experience.

Shimano 9-Speed Drivetrain

Shimano 9-speed gearing provides smoother shifting and better control for flat roads, light climbs, and changing city riding conditions.

Embedded Front & Rear Lighting

Streamlined embedded headlight design provides brighter front illumination, while the integrated rear rack taillight improves visibility and creates a cleaner, more premium look.

[A] Overall Length	186 CM
[B] Handlebar Height	115–120 CM
[C] Wheelbase	125 CM
[D] Seat Height	90–104 CM
[E] Top Tube Length	63 CM
[F] Wheel Diameter	71 CM
[G] Handlebar Width	65 CM

TTGO Z5 27.5" elektrokolo se středovým pohonem City 250W 36V 18Ah
