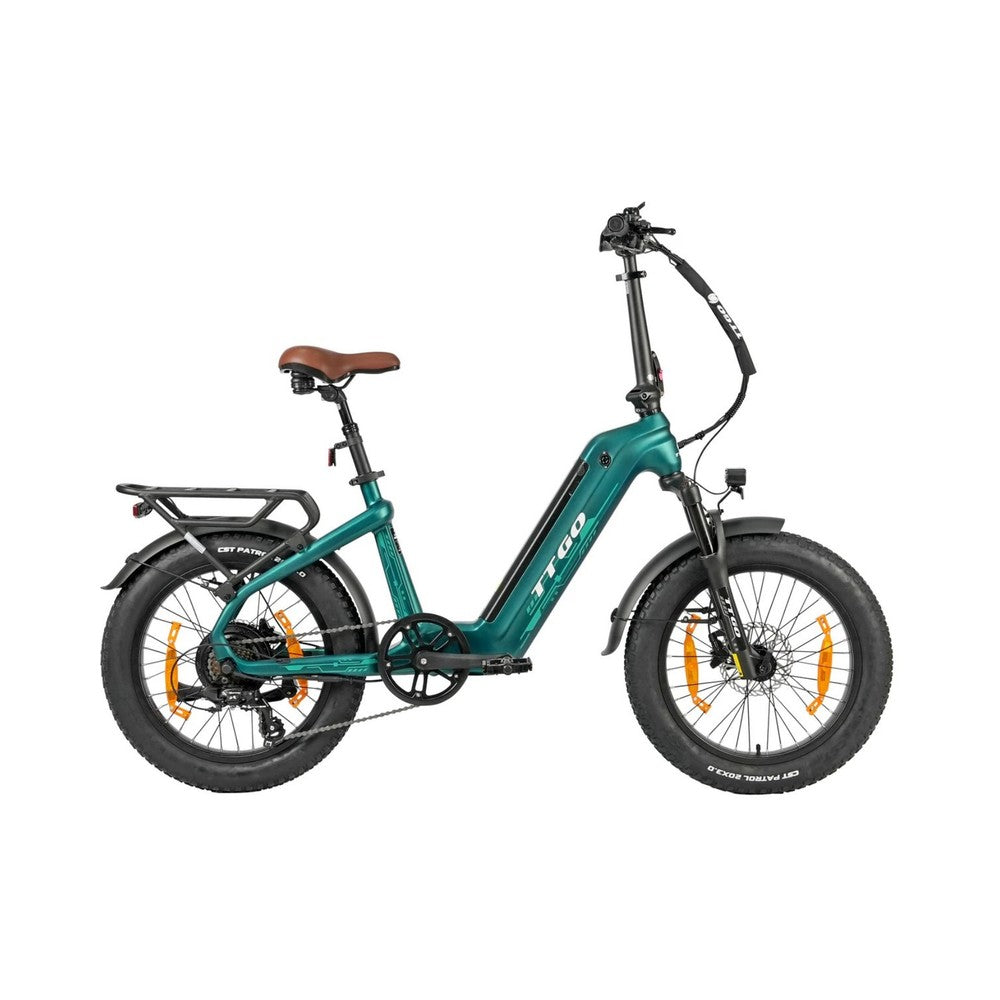

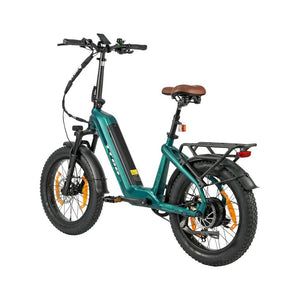

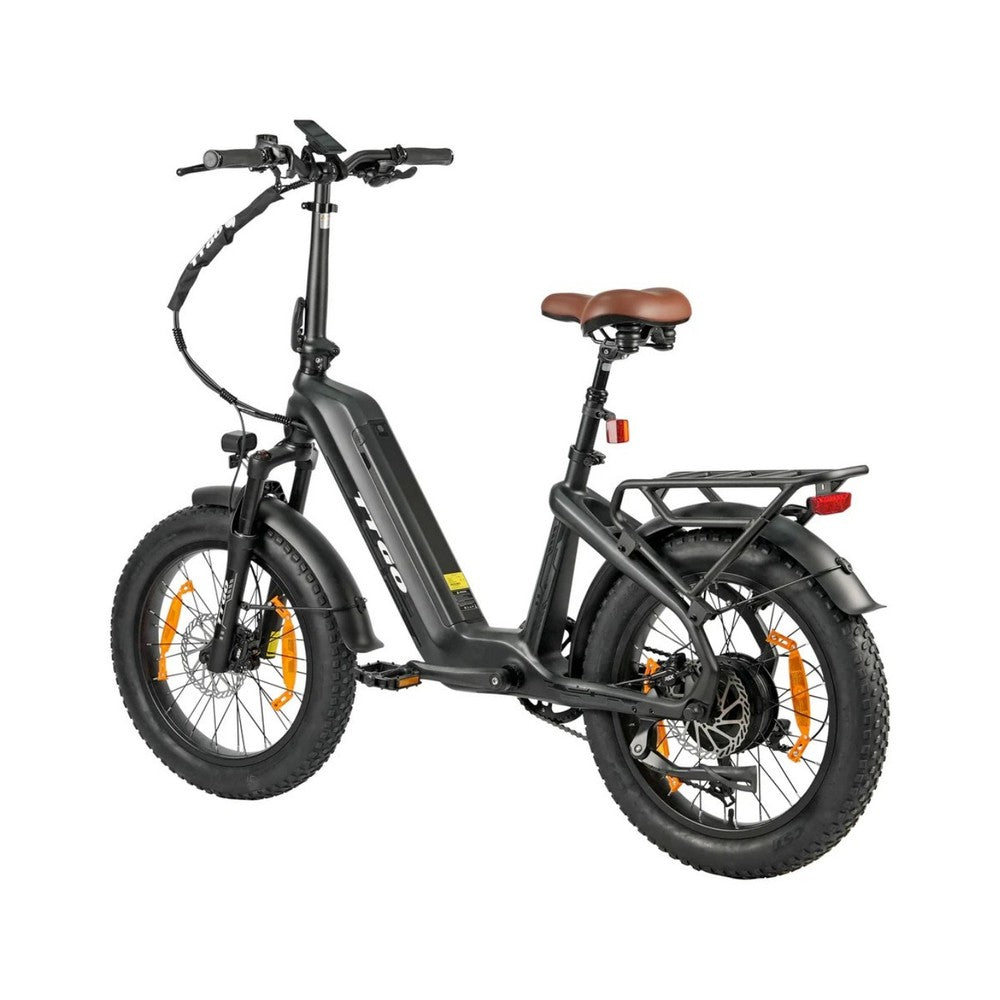

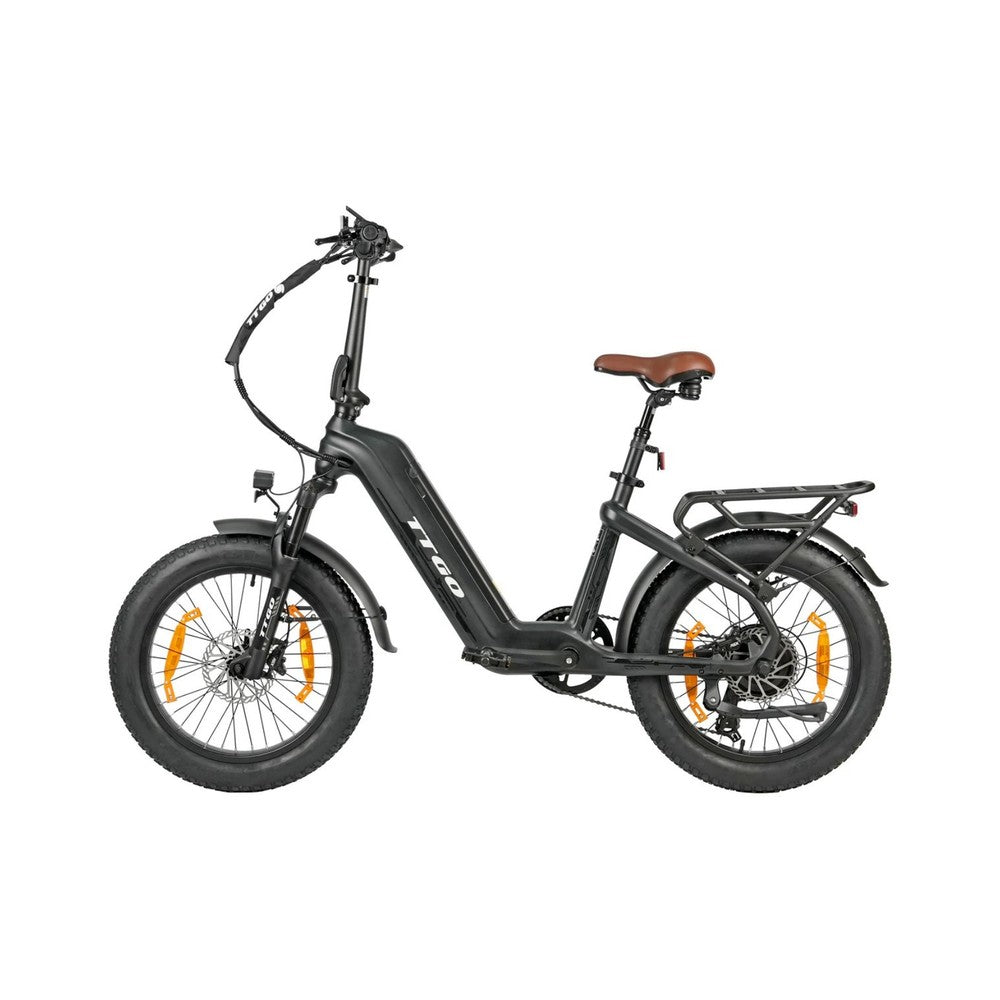

Domů TTGO F8 20" elektrokola s uhlíkovým vláknem 250W 48V 18Ah
Prodejce: TTGO

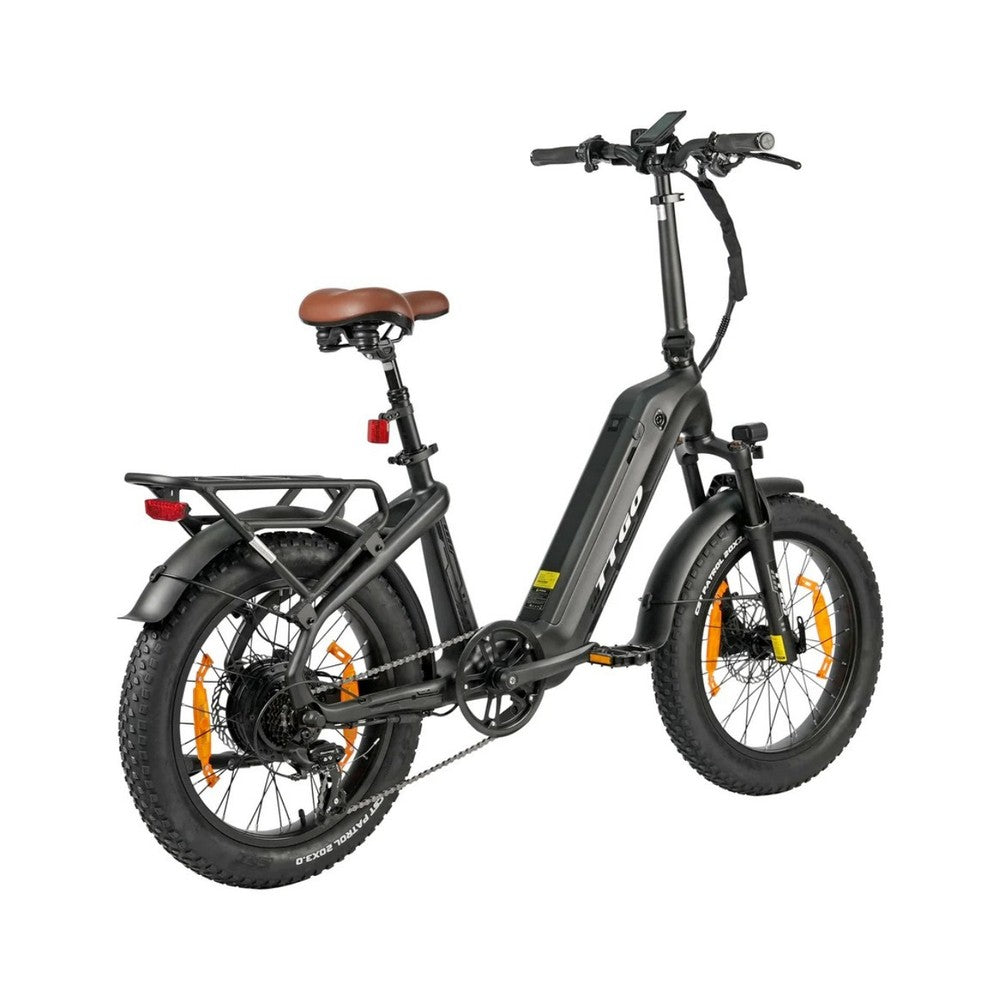

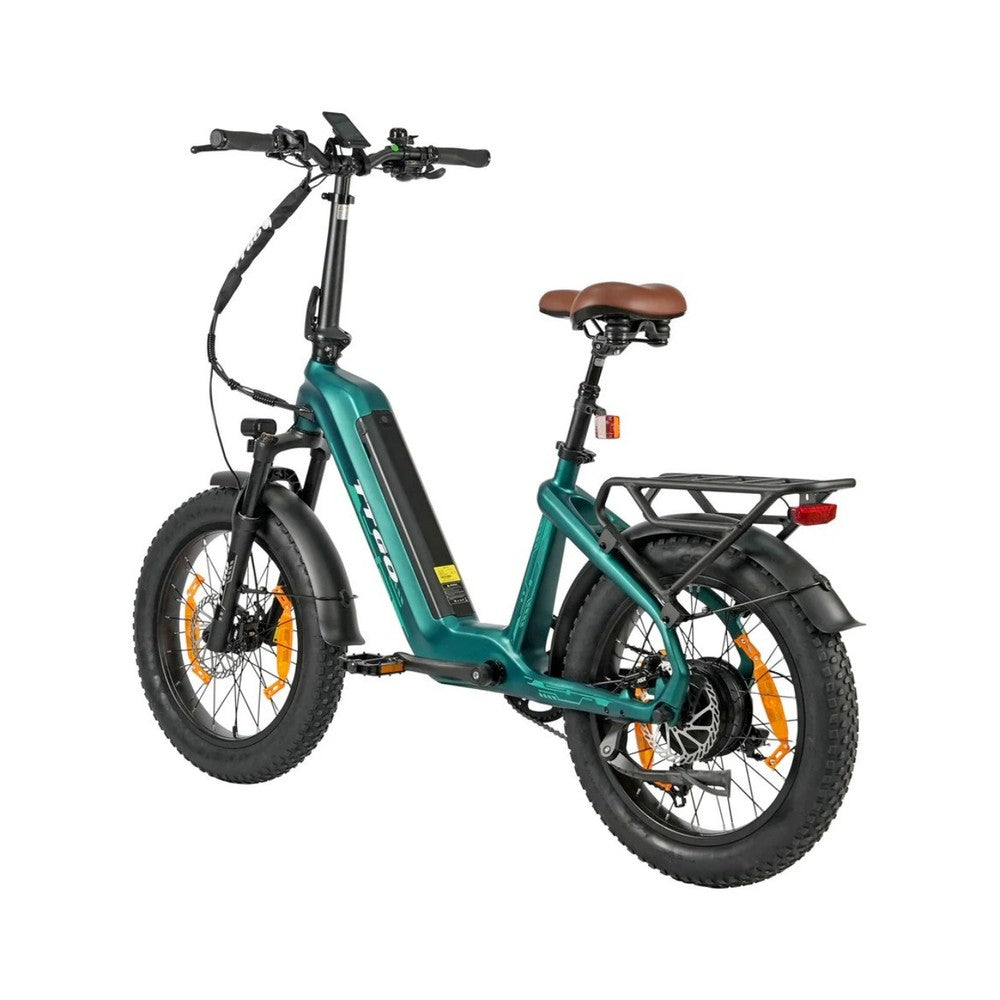

TTGO F8 20" elektrokola s uhlíkovým vláknem 250W 48V 18Ah

Výprodejová cena €1.049,00
Barva: Black
Přidat do seznamu přání

Order in the next to get it between and (2-7 business days)

Položte otázku
Sdílet

Guaranteed Safe Checkout

Visa
PayPal
Mastercard
Przelewy24
Klarna
American Express
Google Pay
Trustly
TTGO F8 20" elektrokola s uhlíkovým vláknem 250W 48V 18Ah

TTGO F8 20" elektrokola s uhlíkovým vláknem 250W 48V 18Ah

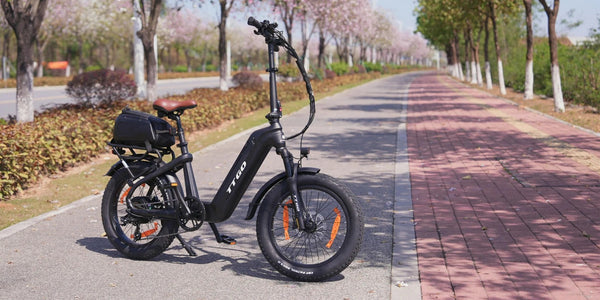

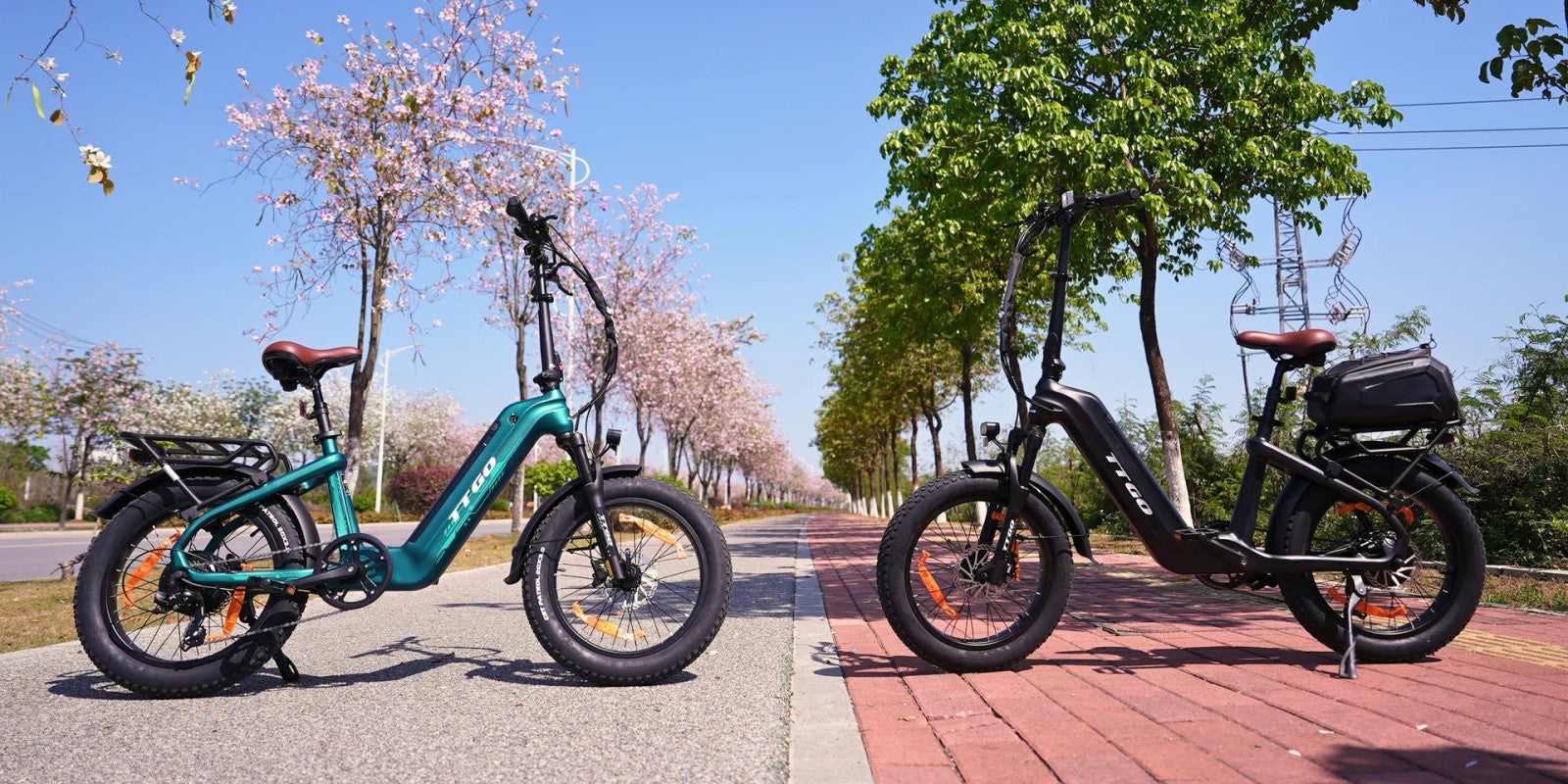

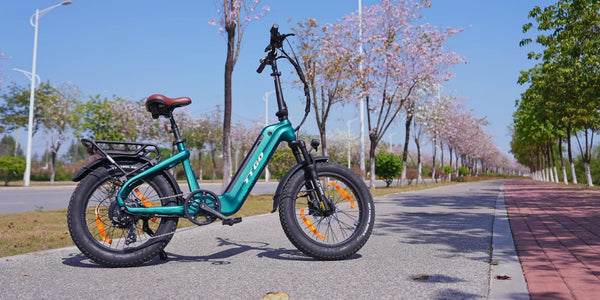

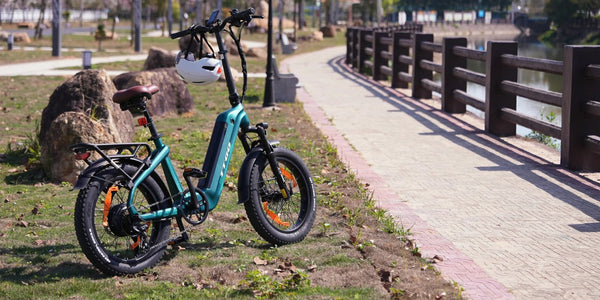

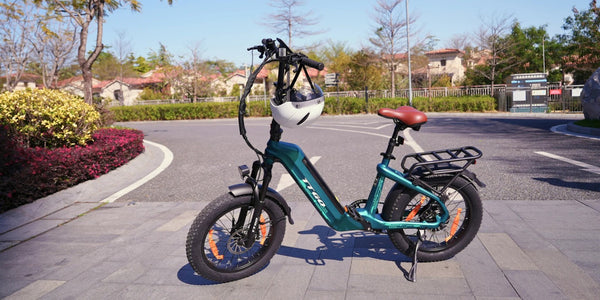

Real Ride Gallery

A Closer Look in Real Scenes

Explore real photos that show the bike’s design, riding setup, comfort details, and daily-use features.
ttgo-f8-carbon-fiber-electric-bike
1  /  5
Product Details

Built for Comfortable Everyday Riding

Explore the motor, battery, display, suspension, tires, brakes, lighting, and fit details that shape the riding experience.

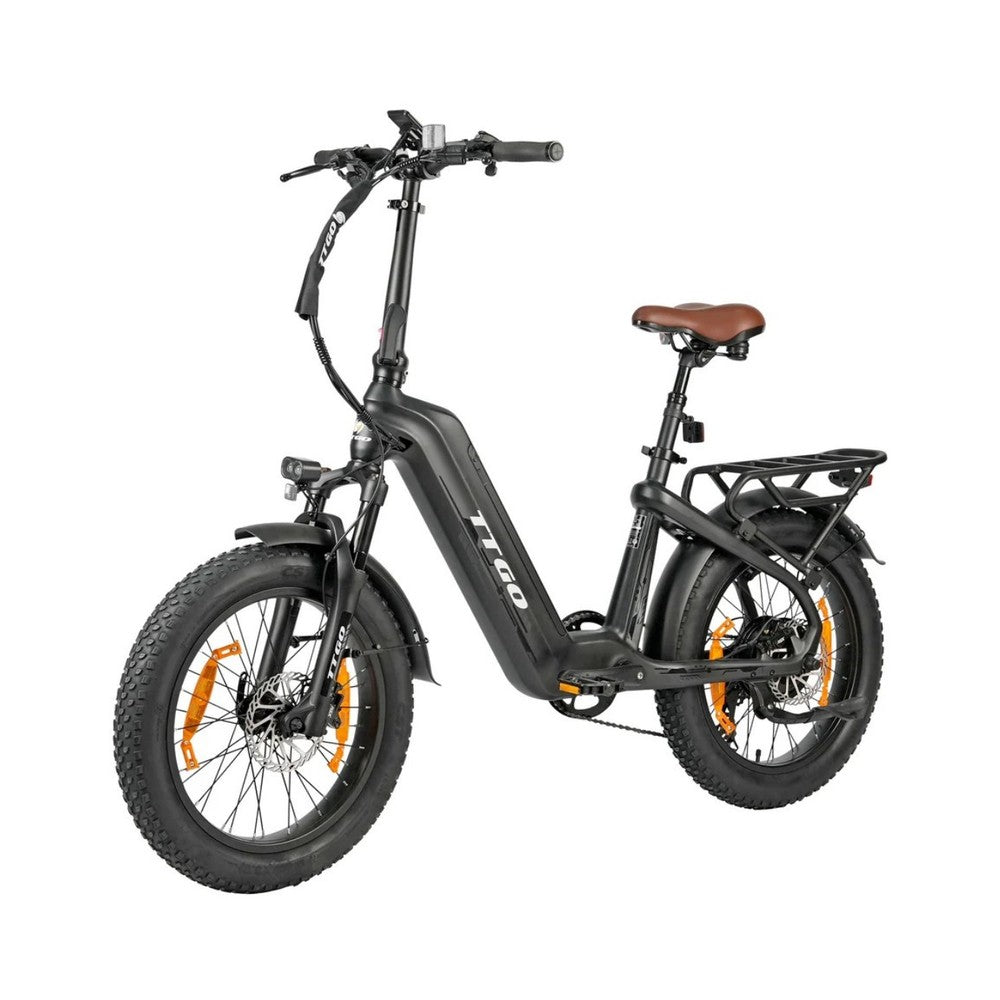

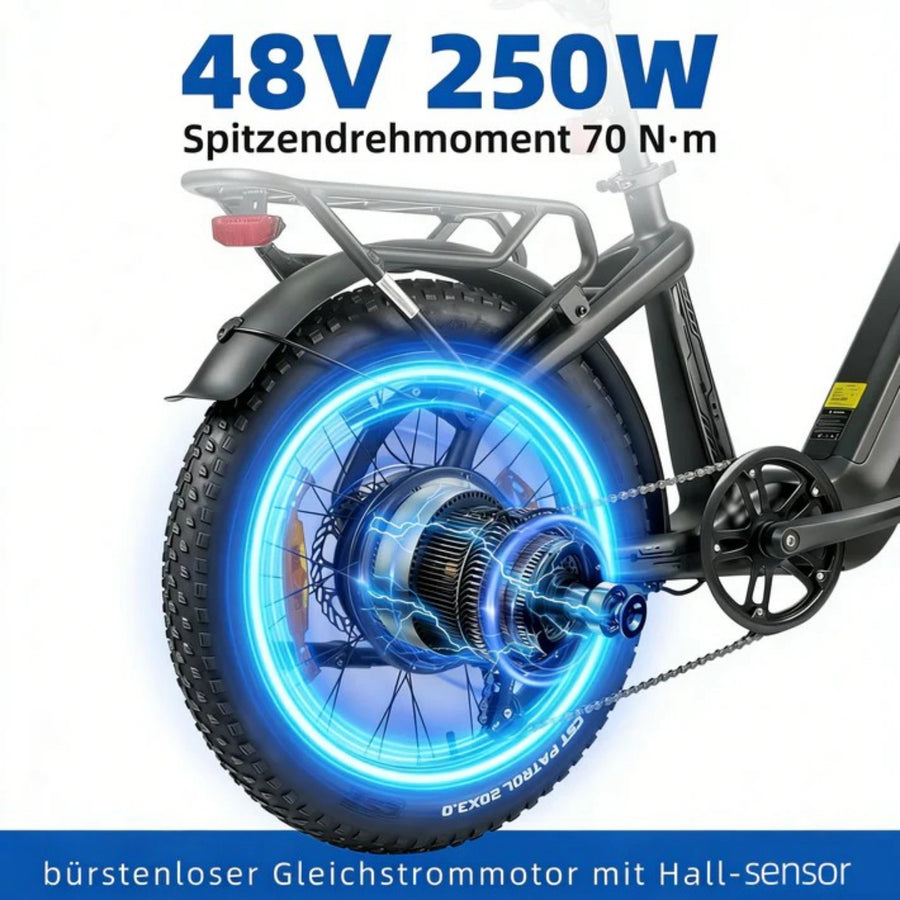

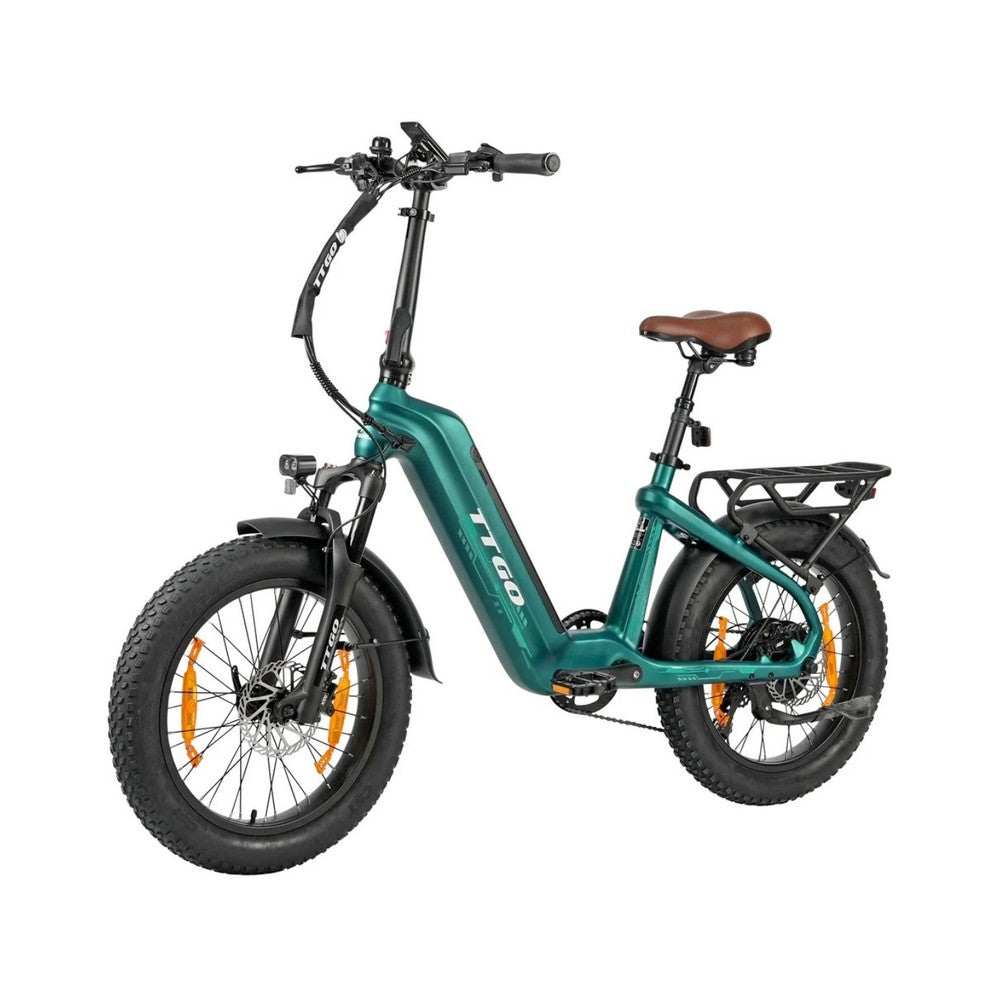

48V 250W Motor with 70Nm Torque

48V 250W Motor with 70Nm Torque

The 48V 250W rear motor provides quiet, steady assistance with 70Nm torque, helping with daily riding, gentle climbs, and longer routes.

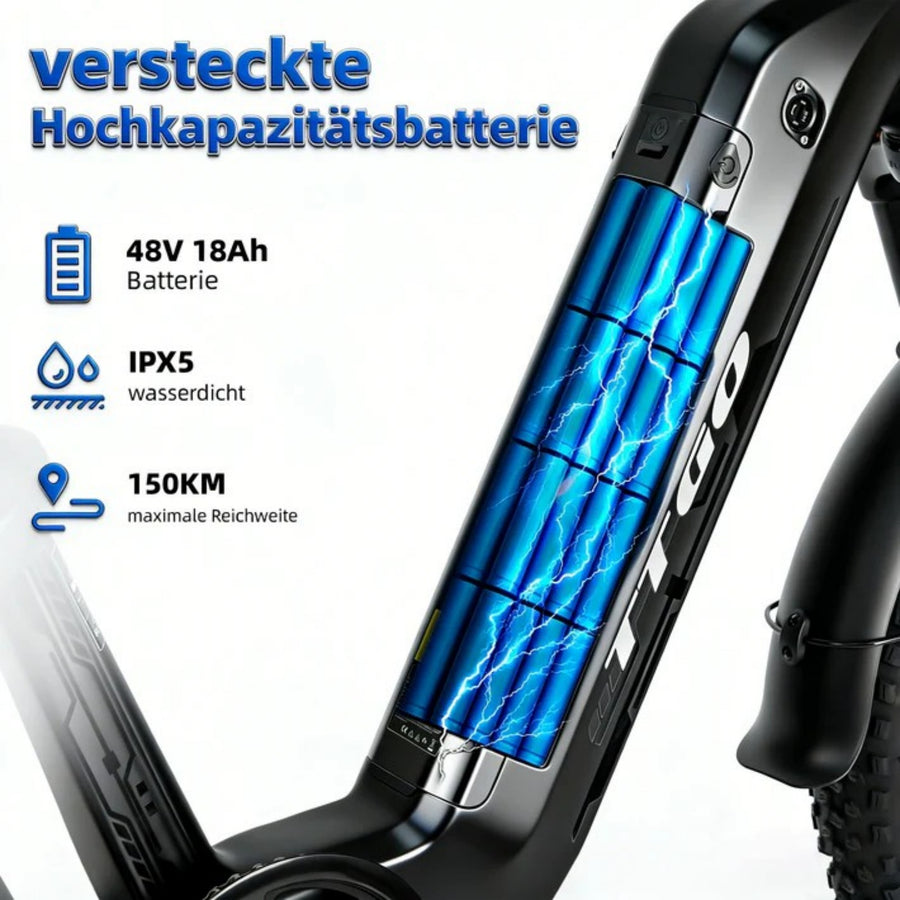

48V 18Ah Hidden Battery

48V 18Ah Hidden Battery

The hidden 48V 18Ah battery supports long-distance pedal assistance, while the IPX5 design helps protect it from splashes during everyday riding.

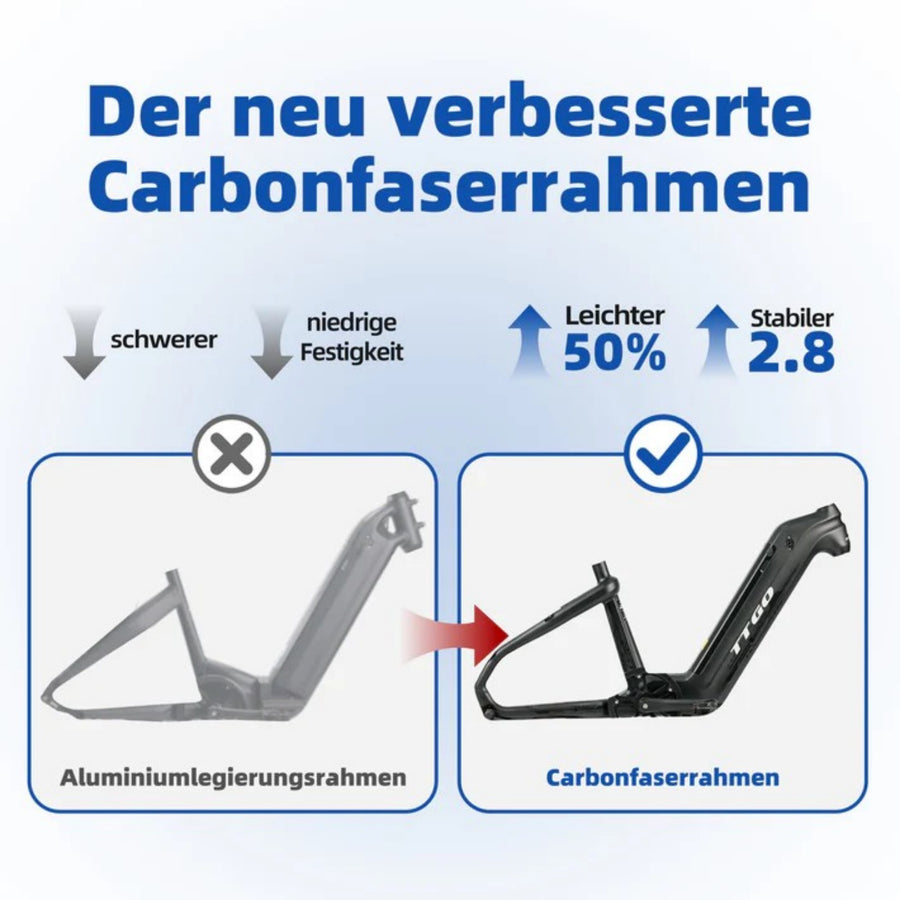

Lightweight Carbon Fiber Frame

Lightweight Carbon Fiber Frame

The upgraded carbon fiber frame helps reduce bike weight while improving strength and comfort, giving the F8 a lighter and more responsive ride.

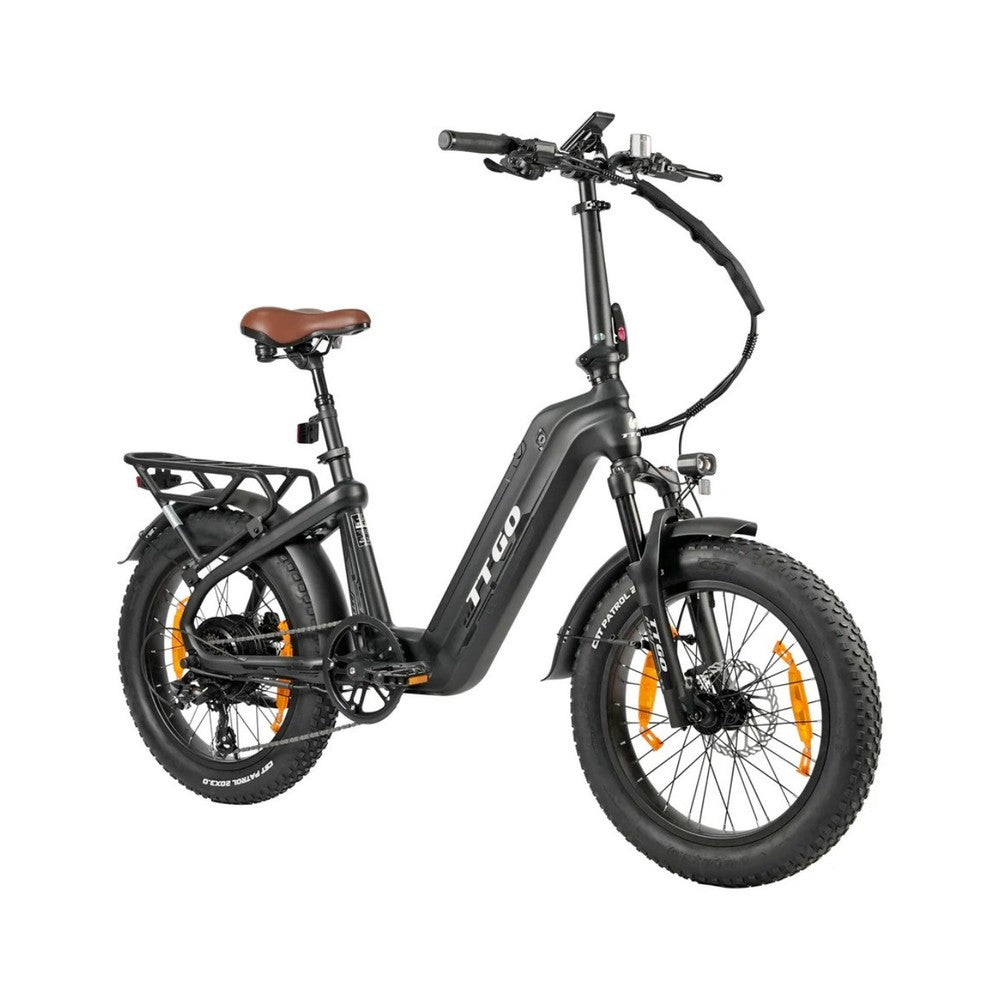

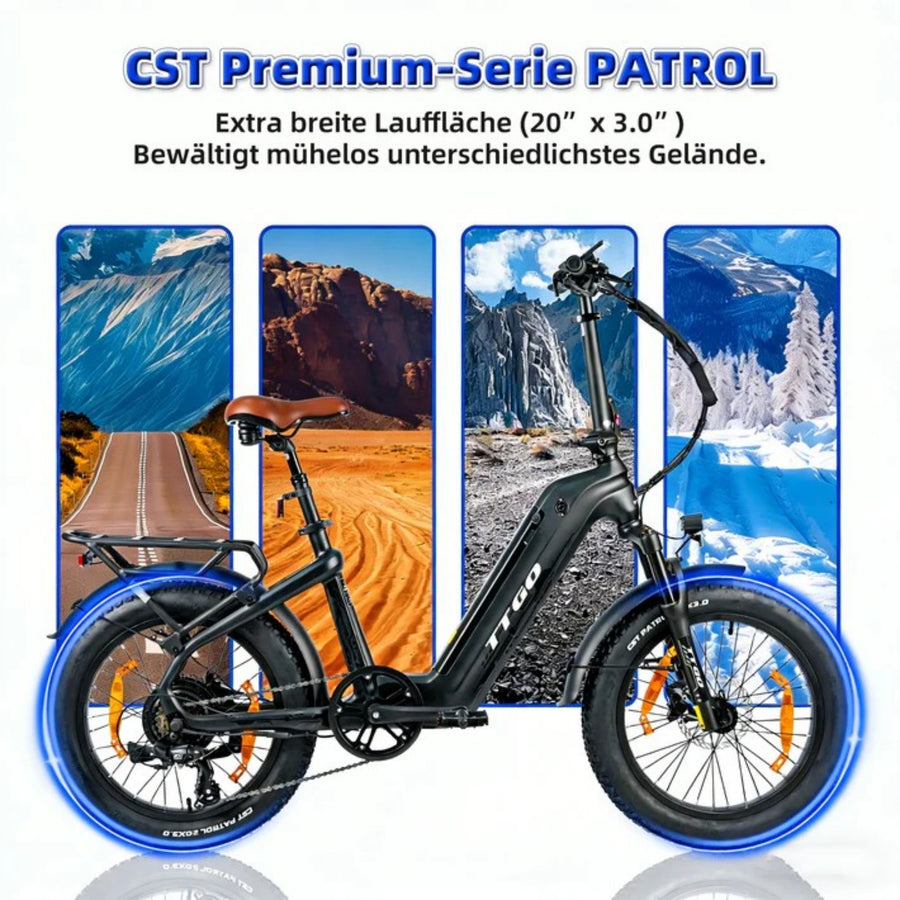

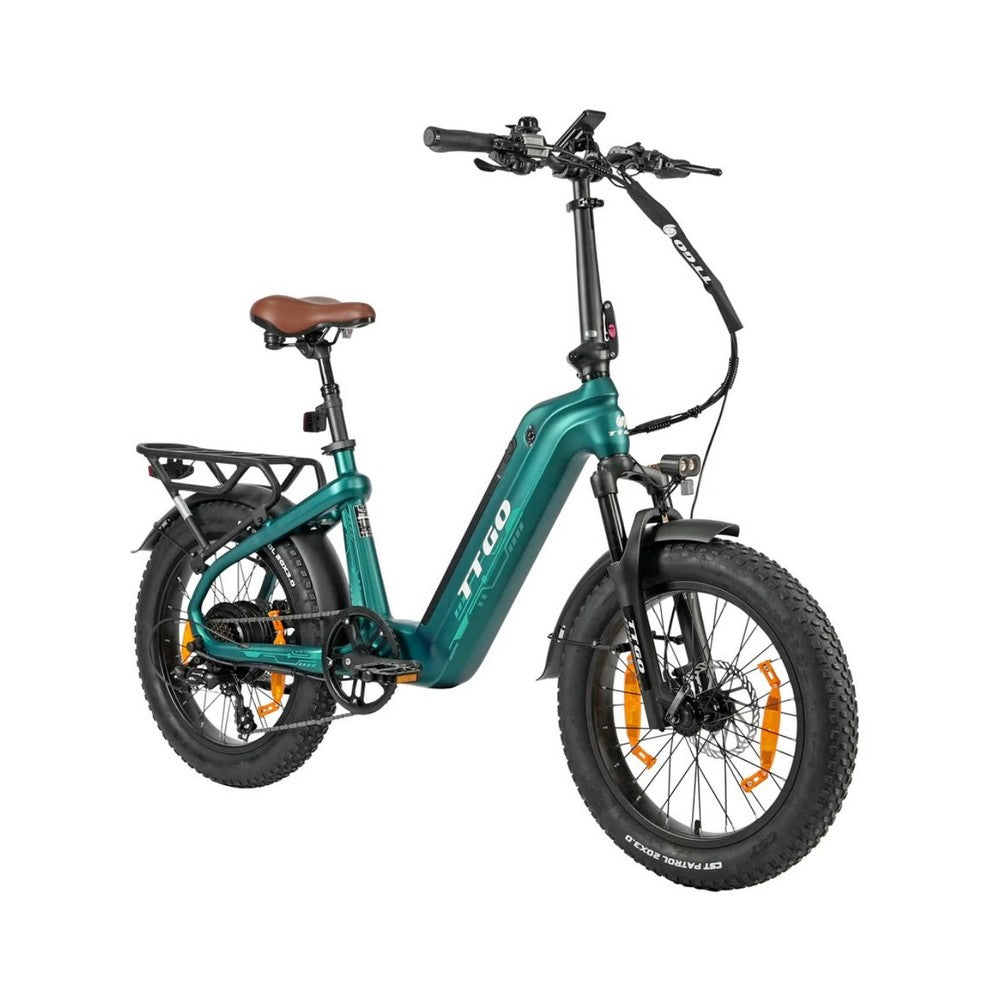

CST 20×3.0 Wide Tires

CST 20×3.0 Wide Tires

CST 20×3.0 tires offer extra grip, stability, and comfort across city roads, gravel paths, and light mixed-terrain riding conditions.

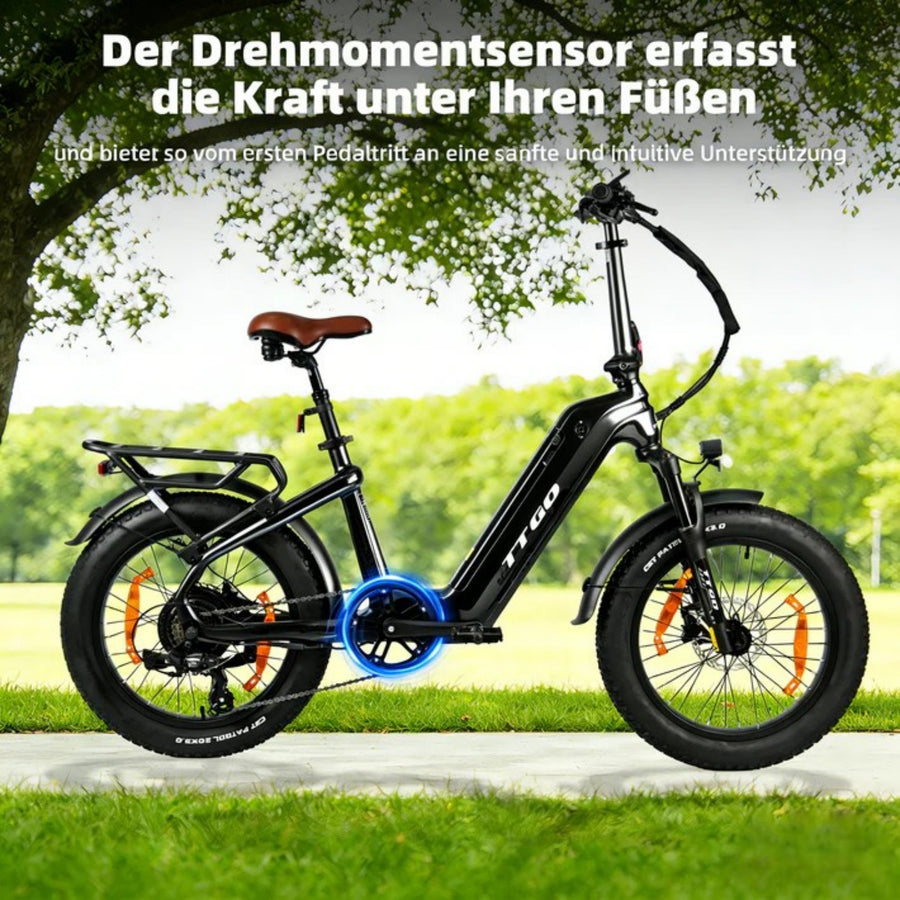

Natural Torque Sensor Assistance

Natural Torque Sensor Assistance

The torque sensor reads your pedaling force and delivers support smoothly from the first pedal stroke, making the ride feel more natural.

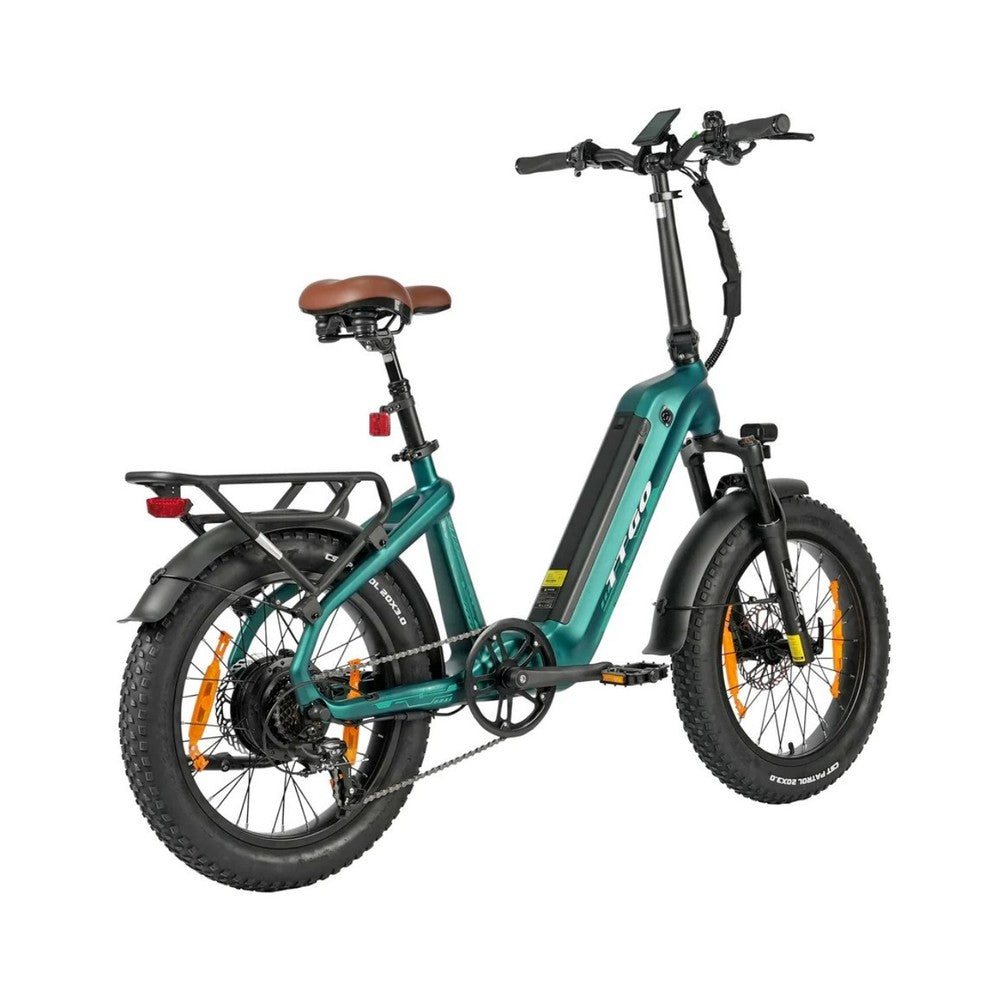

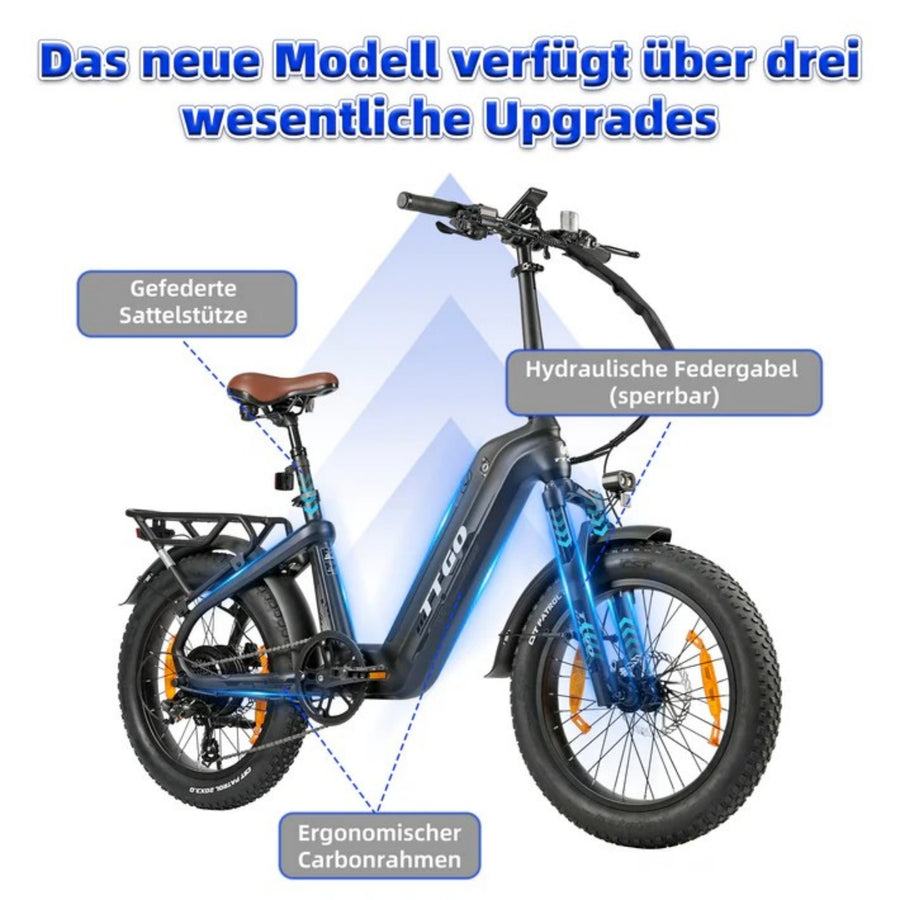

Three Comfort-Focused Upgrades

Three Comfort-Focused Upgrades

The carbon fiber frame, lockable suspension fork, and suspension seat post work together to make daily rides smoother, lighter, and more comfortable.

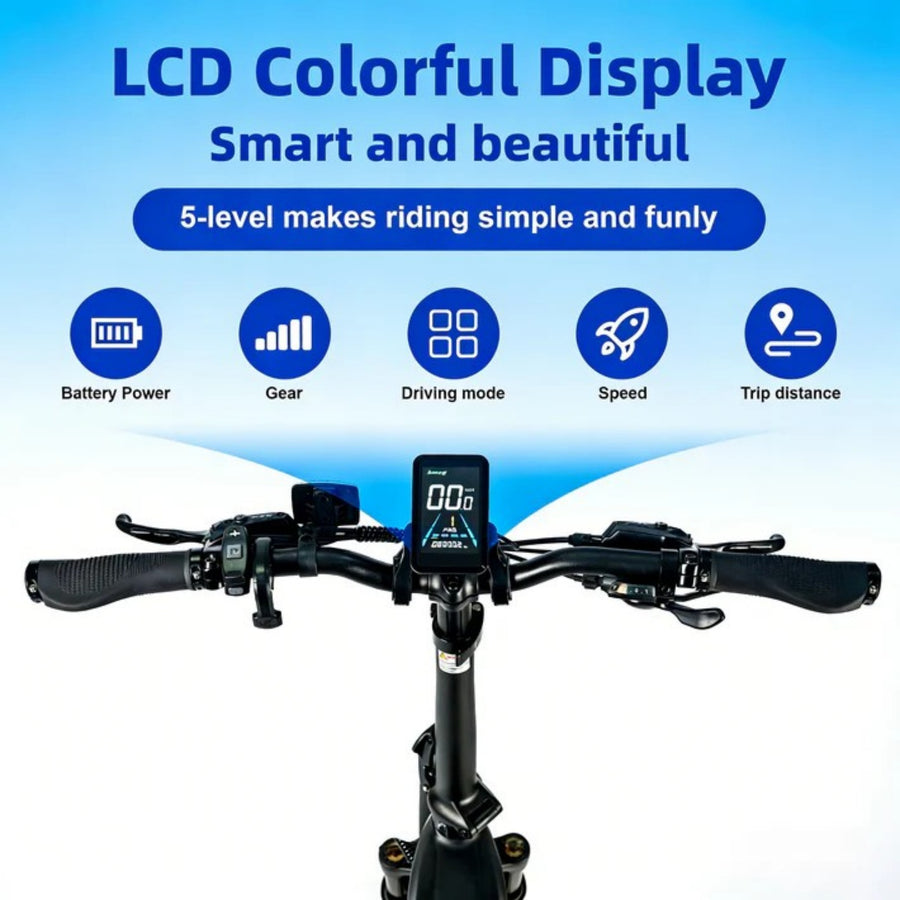

Color LCD Riding Display

Color LCD Riding Display

The color LCD display shows battery level, speed, assist level, riding mode, and trip distance clearly, making every ride easier to manage.

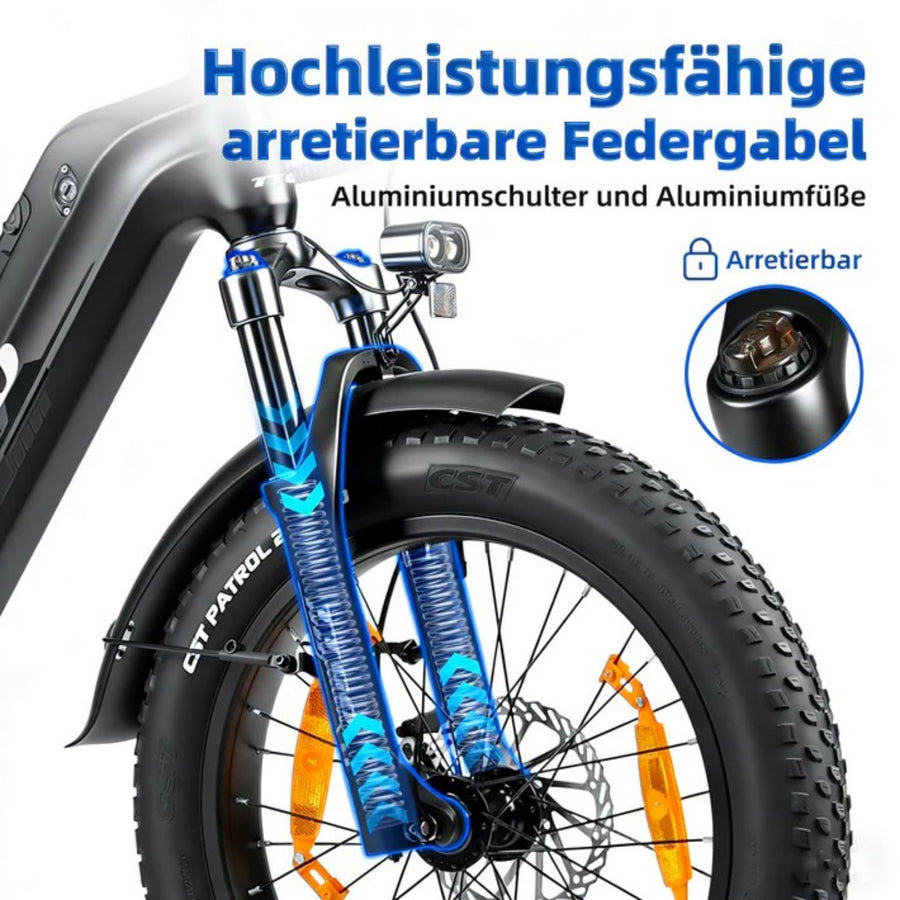

Lockable Suspension Fork

Lockable Suspension Fork

The lockable front suspension fork helps absorb bumps on uneven roads, while the lockout function keeps pedaling more efficient on smooth city streets.

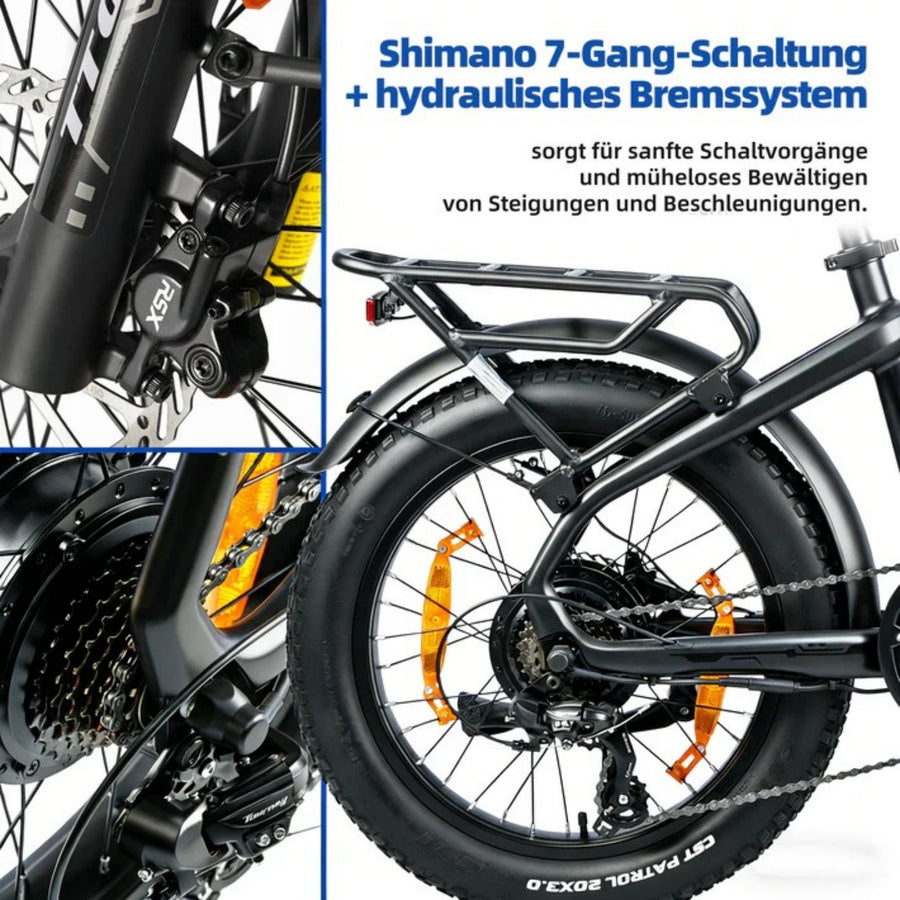

Shimano 7-Speed with Hydraulic Brakes

Shimano 7-Speed with Hydraulic Brakes

Shimano 7-speed gearing helps you ride comfortably across different roads, while hydraulic disc brakes provide smooth and reliable stopping control.

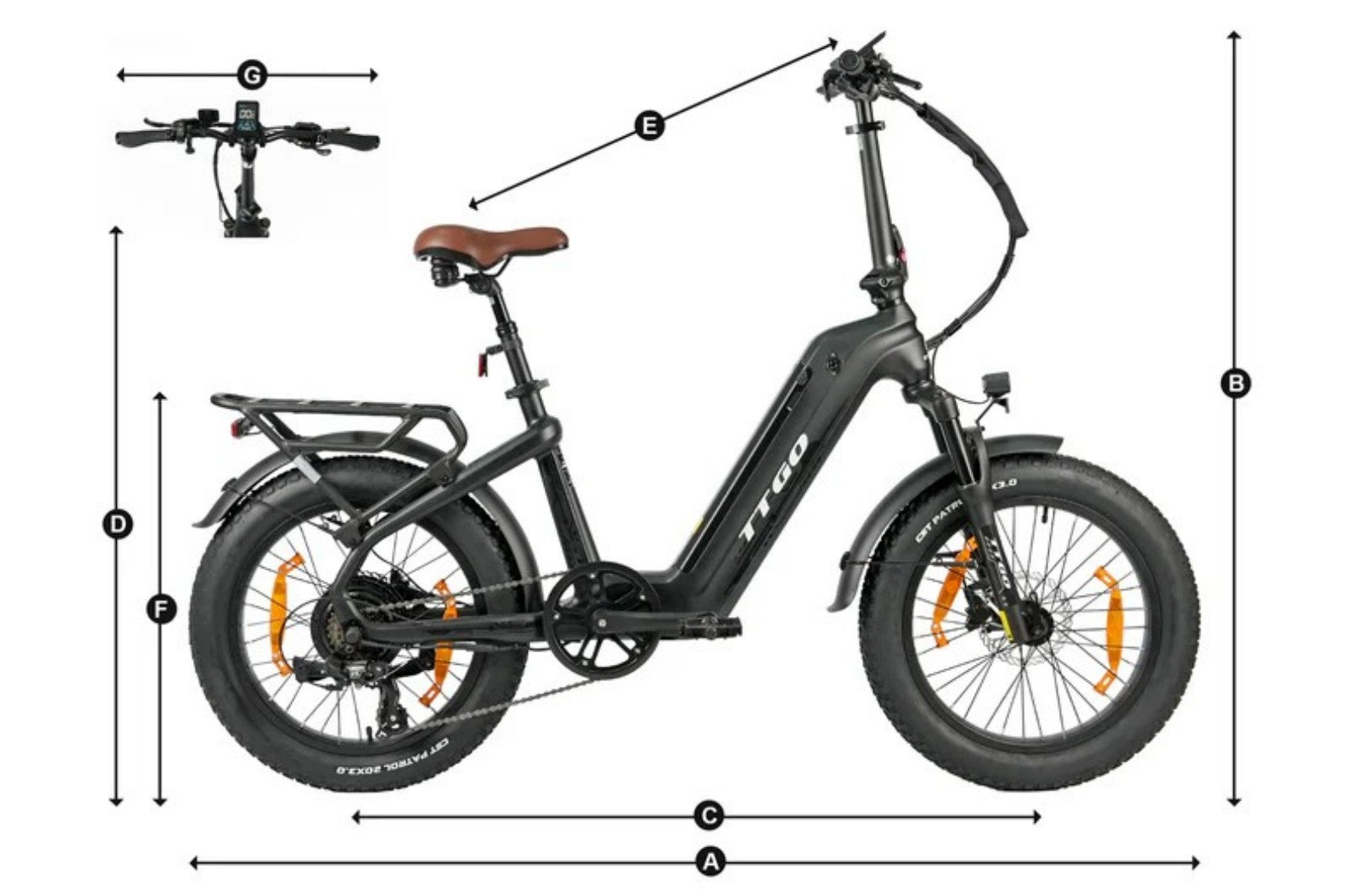

Bike Dimensions

[A] Overall Length 167 CM
[B] Handlebar Height 119–129 CM
[C] Wheelbase 110 CM
[D] Seat Height 78–98 CM
[E] Top Tube Length 63 CM
[F] Wheel Diameter 55 CM
[G] Handlebar Width 65 CM

Specifications

Technical Specifications

Review the key specifications, components, dimensions, and packing details before ordering.

Motor

48V 250W Rear Motor

Battery

48V 18Ah / 864Wh

Range

Up to 150 km

Tire Size

CST 20" × 3.0"

Brakes

Hydraulic Disc Brakes

Frame

Carbon fiber

Performance & Riding
Product Model
TTGO F8
Product Type
Carbon Fiber Electric Bike
Default Speed
25 km/h
Pedal Assist Range
Up to 150 km
Torque
70 Nm
Sensor
Torque Sensor
Pedal Assist
5 Levels
Transmission
Shimano 7-Speed
Suspension
Lockable Front Suspension Fork + Suspension Seat Post
Riding Use
City / Commuting / Leisure / Light Mixed Road
E-Bike System
Motor
48V 250W Rear Motor
Motor Type
Brushless Rear Hub Motor
Battery
48V 18Ah Concealed Battery
Battery Capacity
864Wh
Battery Waterproof Rating
IPX5
Display
LCD Display
Charger
54.6V 3A Charger
Charging Time
6–8 Hours
Headlight
Embedded Enhanced LED Headlight
Taillight
E-Mark Taillight
Bike Components
Frame
20" Carbon Fiber Frame
Fork
Suspension Fork with Lockout
Tires
CST 20" × 3.0"
Brakes
Hydraulic Disc Brakes
Derailleur
Shimano 7-Speed
Seat Post
ZOOM Suspension Seat Post
Handlebar
Aluminum Alloy Handlebar
Rear Rack
Aluminum Rear Rack
Pedals
Aluminum Frame Pedals
Chainring
Steel, 1/2" × 3/32" × 104L
Seat
Comfort Saddle
Weight, Load & Package
Bike Weight
27 kg
Gross Weight
36 kg
Max Load
150 kg
Recommended Rider Height
165–195 cm
Package Size
140 × 29 × 70 cm
Overall Length
167 cm
Handlebar Height
119–129 cm
Wheelbase
110 cm
Seat Height
78–98 cm
Top Tube Length
63 cm
Wheel Diameter
55 cm
Handlebar Width
65 cm

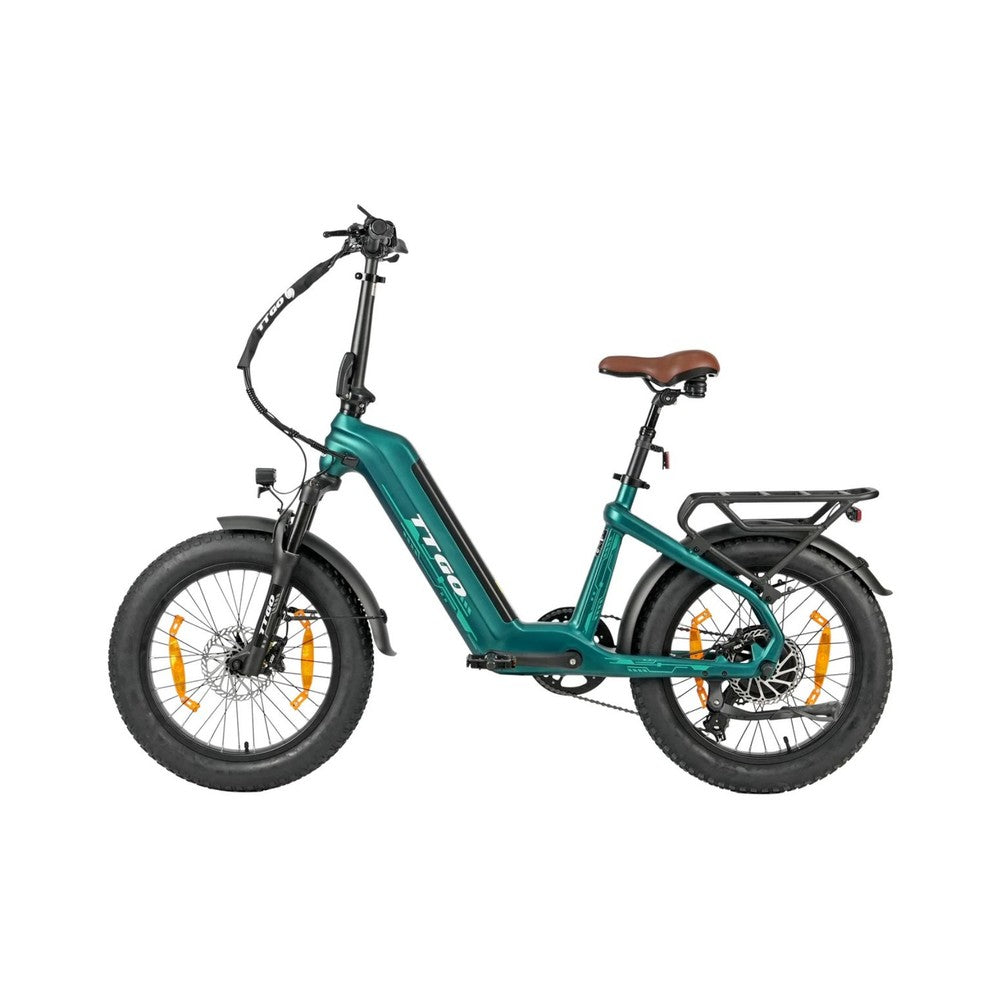

Available Colors
Black / Green
Specifications may vary slightly depending on production batch and measurement method.
Brand Collection

More from TTGO elektrokolo

Compare similar models by riding style, comfort, battery, wheel size, and everyday use.
View Collection
TTGO C3 HZ-28ST 28" Městské elektrokolo 250W 36V 20Ah

TTGO C3 HZ-28ST 28" Městské elektrokolo 250W 36V 20Ah

€799,00
TTGO C3 SE 28" Elektrické městské kolo 250W 36V 18Ah Shimano 7- Zrychli na 120KM Rozsah

TTGO C3 SE 28" Elektrické městské kolo 250W 36V 18Ah Shimano 7- Zrychli na 120KM Rozsah

€899,00
TTGO C2 Pro 26" Elektrické městské kolo 36V 18Ah Shimano 7- Zrychli na 120KM Rozsah

TTGO C2 Pro 26" Elektrické městské kolo 36V 18Ah Shimano 7- Zrychli na 120KM Rozsah

€699,00
černé dospělé elektrické kolo s košíkem

TTGO C2 Elektrické městské kolo 36V 250W 14.5Ah (TTGO YY-26ST)

€599,00
Before You Buy

Helpful Answers

Quick answers about delivery, returns, warranty, support, VAT, and choosing the right electric ride for everyday travel in Europe.

Yes.

According to EU laws and regulations, TTGO electric bicycles are limited to a maximum speed of 25 km/h. The speed limit can be unlocked for use on private property only, where permitted by local regulations.

The TTGO F8 is a 20-inch carbon fiber electric bike designed for city commuting, leisure riding, and comfortable daily travel.

The TTGO F8 offers up to 150 km of pedal-assist range, depending on rider weight, assist level, terrain, tire pressure, weather, and riding style.

Yes. The TTGO F8 uses a torque sensor, which helps the motor respond more naturally to your pedaling effort for smoother and more efficient assistance.

A carbon fiber frame helps make the TTGO F8 lighter, easier to handle, and more comfortable for daily riding. Compared with heavier metal frames, carbon fiber can also absorb some road vibration, giving the bike a smoother feel on city streets and longer rides.

Lehké elektrokolo z uhlíkových vláken pro každodenní pohodlí

Kompaktní 20-inch elektrokolo postavené s rámem z uhlíkových vláken, baterií s dlouhým dojezdem a asistencí senzorů plynulého točivého momentu.

TTGO F8 je určen pro jezdce, kteří chtějí lehčí, pohodlnější a rafinovanější elektrokolo pro každodenní dojíždění a volnočasové jízdy. Jeho rám z uhlíkových vláken pomáhá snižovat hmotnost a zároveň udržuje kolo stabilní a snadno se s ním manipuluje při každodenním používání.

Poháněn a 48V 250W zadní motor s 70Nm točivý moment, F8 poskytuje hladkou pomoc při pedálech pro městské ulice, cyklostezky, jemné stoupání a pohodové víkendové jízdy. Snímač točivého momentu přirozeně reaguje na vaše úsilí o šlapání, takže jízda se cítí intuitivnější než základní snímač rychlosti elektrokola.

S 48V 18Ah baterie, až 150KM rozsah šlapání, 20×3.0 pneumatiky CST, hydraulické kotoučové brzdy, Shimano 7-rychlostní převodovka, uzamykatelná odpružená vidlice, sedlovací sloupek se sedadlem sezotu ZOOM a LCD zobrazení, TTGO F8 kombinuje lehký design s praktickým každodenním jízdním komfortem.
