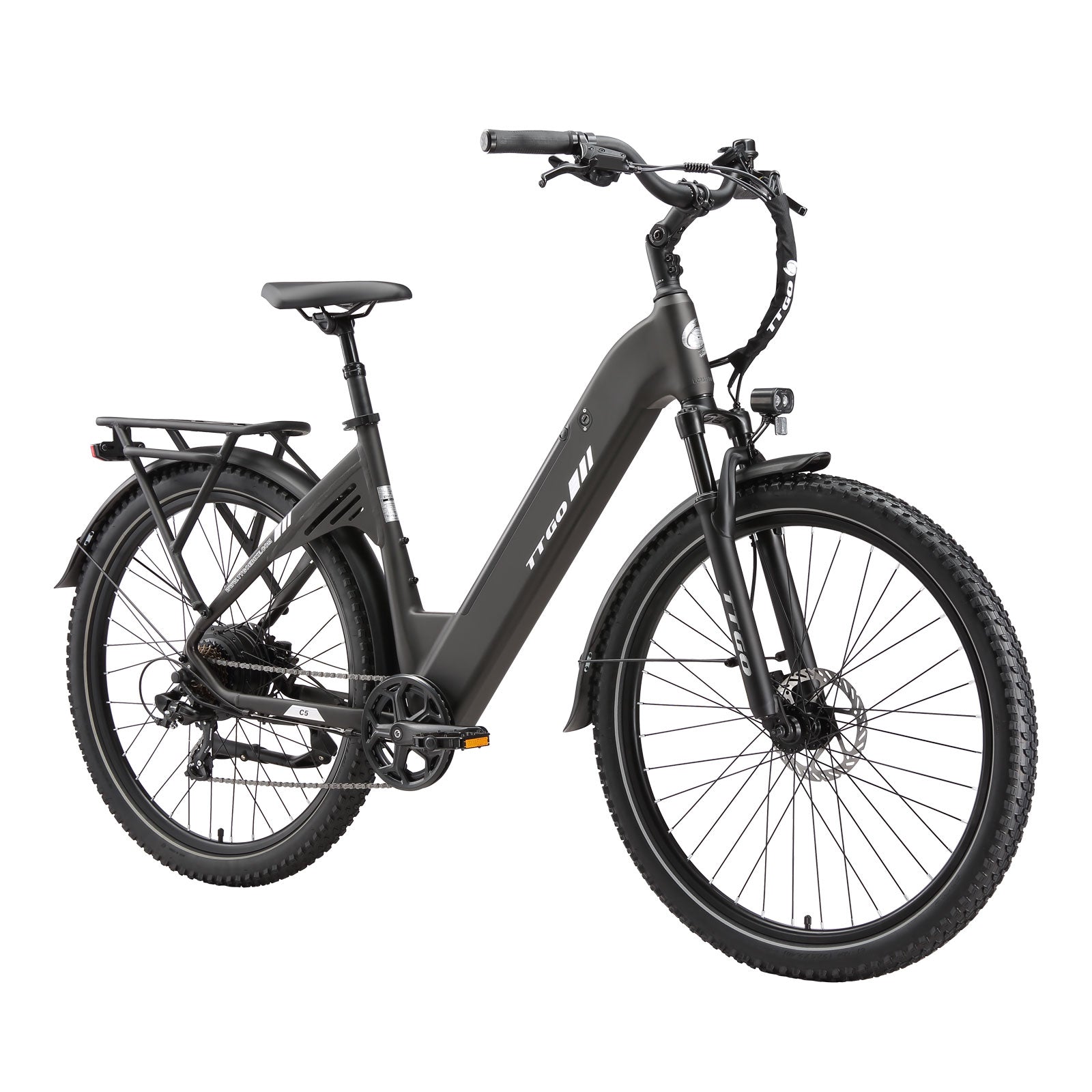

Dom TTGO C5 27.5" Step-Through City Electric Bike 250W 48V 13.5Ah
Sprzedawca: TTGO

TTGO C5 27.5" Step-Through City Electric Bike 250W 48V 13.5Ah

Cena regularna €1.099,00 Cena sprzedaży €929,00
15 % ZNIŻKI
Color: White
Dodaj do listy życzeń

Order in the next to get it between and (5-7 business days)

Zadaj pytanie
Udział

Guaranteed Safe Checkout

Visa
PayPal
Mastercard
American Express
Google Pay
Discover
JCB
Diners Club
Klarna

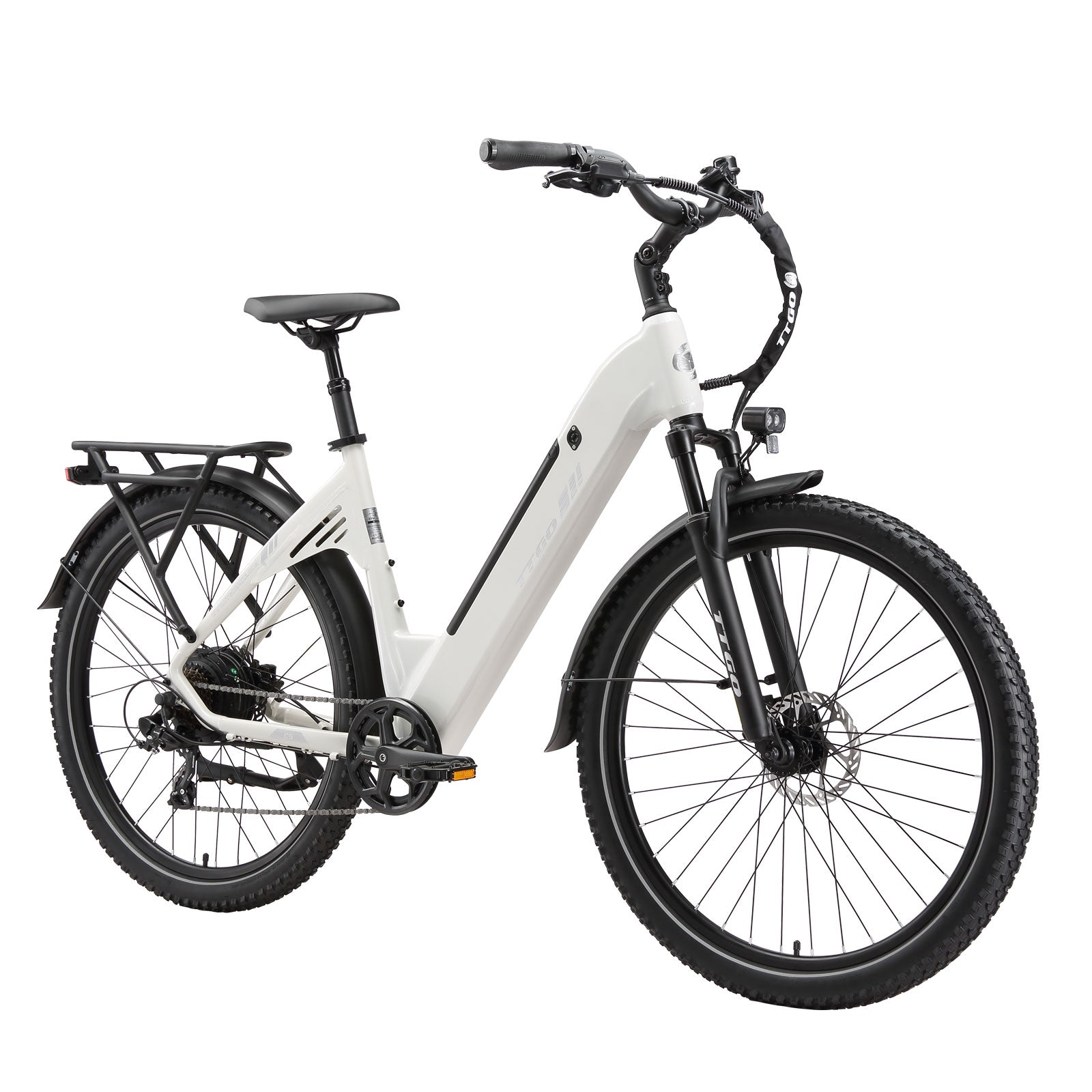

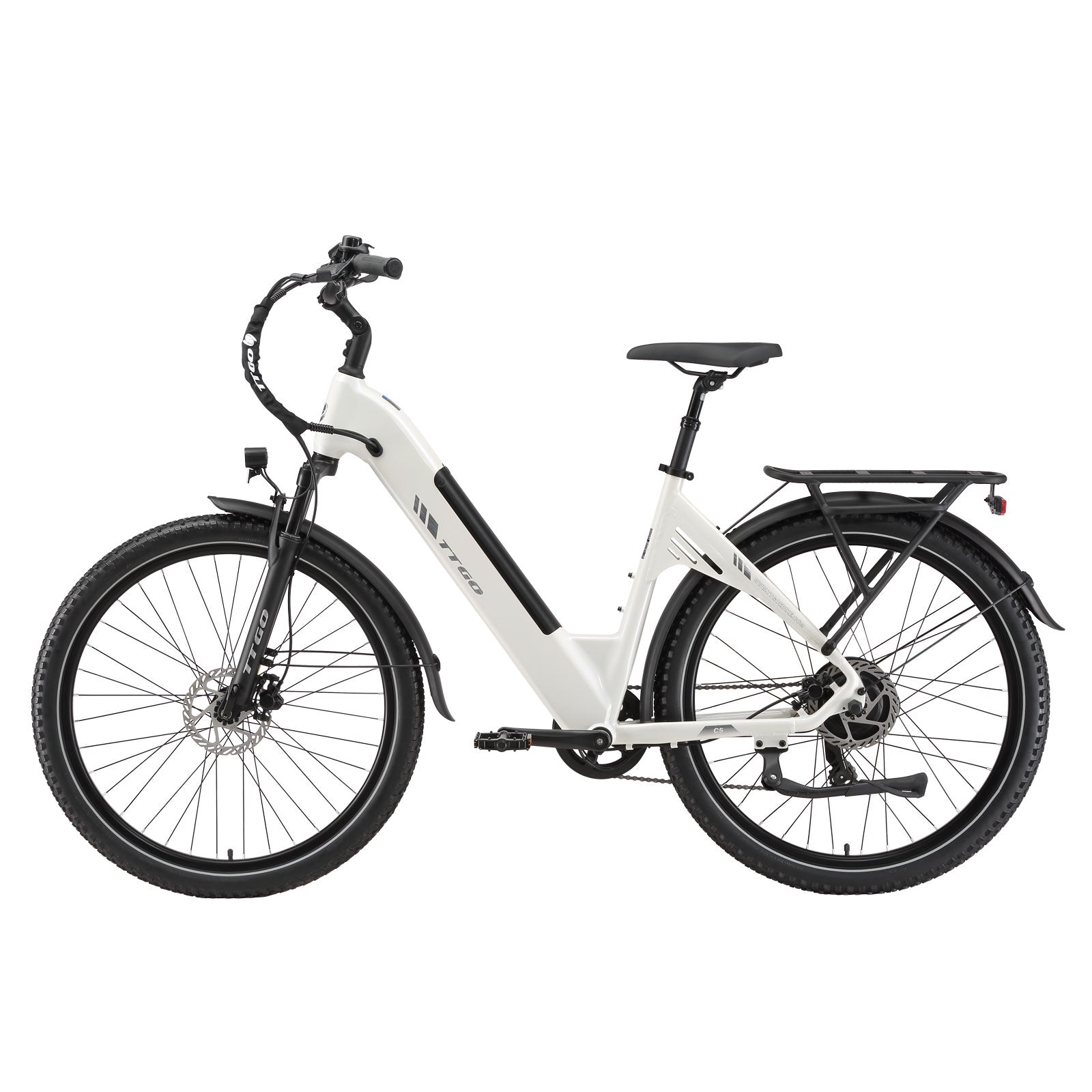

TTGO C5 27.5" Step-Through City Electric Bike 250W 48V 13.5Ah

TTGO C5 27.5" Step-Through City Electric Bike 250W 48V 13.5Ah
Real Ride Gallery

A Closer Look in Real Scenes

Explore real photos that show the bike’s design, riding setup, comfort details, and daily-use features.
ttgo-c5-step-through-electric-bike-for-european-riders
1  /  5
Product Details

Built for Comfortable Everyday Riding

Explore the motor, battery, display, suspension, tires, brakes, lighting, and fit details that shape the riding experience.

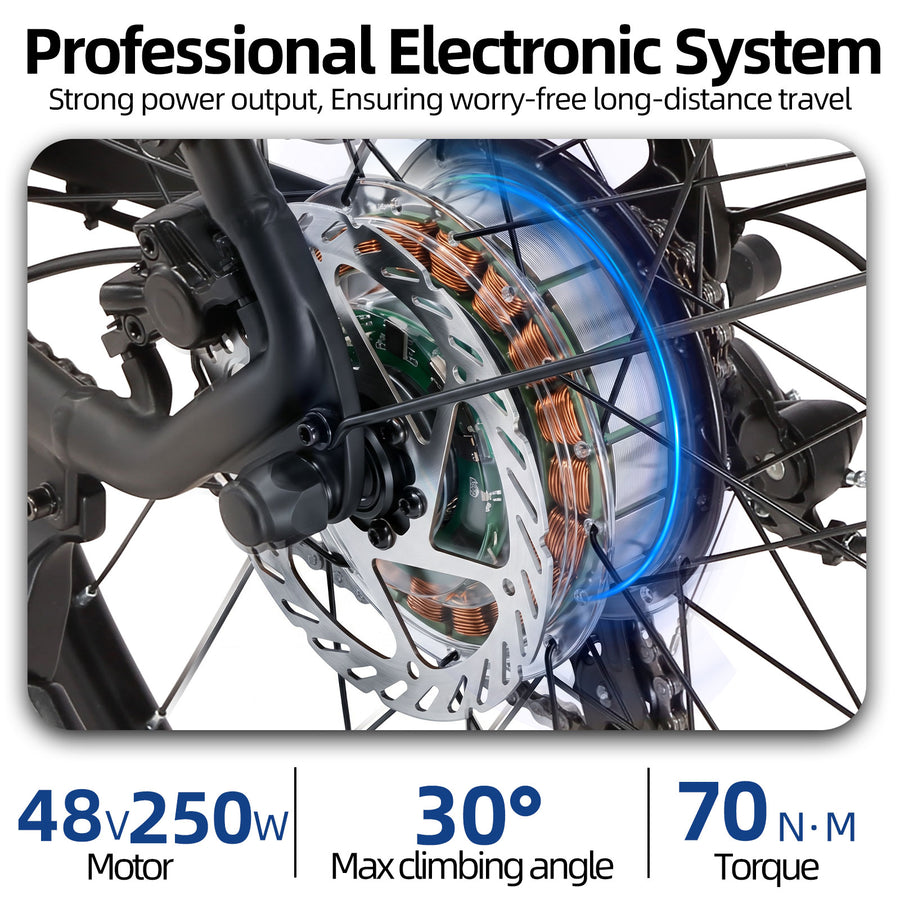

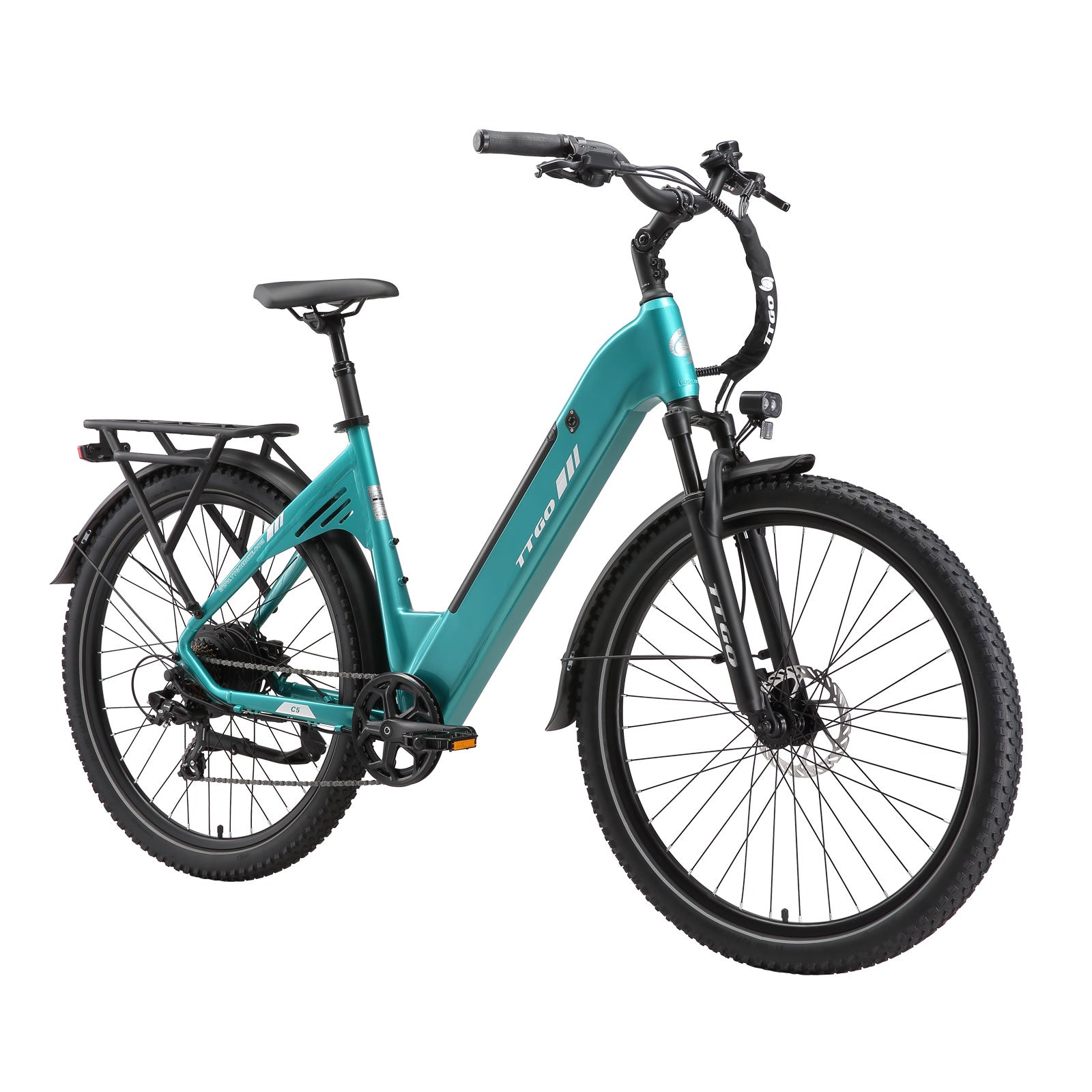

48V 250W Motor with 70Nm Torque

48V 250W Motor with 70Nm Torque

The 48V 250W motor delivers smooth pedal assistance for city riding, daily commuting, and gentle climbs. With up to 70Nm torque, the TTGO C5 offers steady support without feeling overly aggressive, making it suitable for comfortable everyday electric bike use.

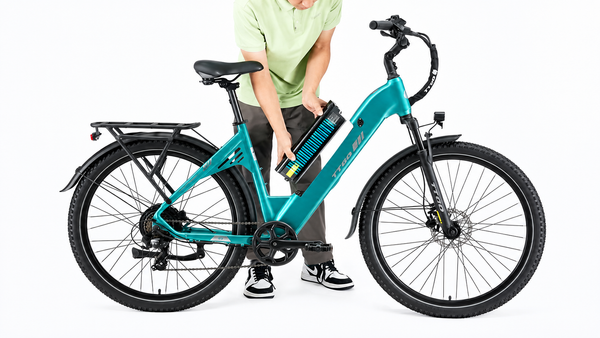

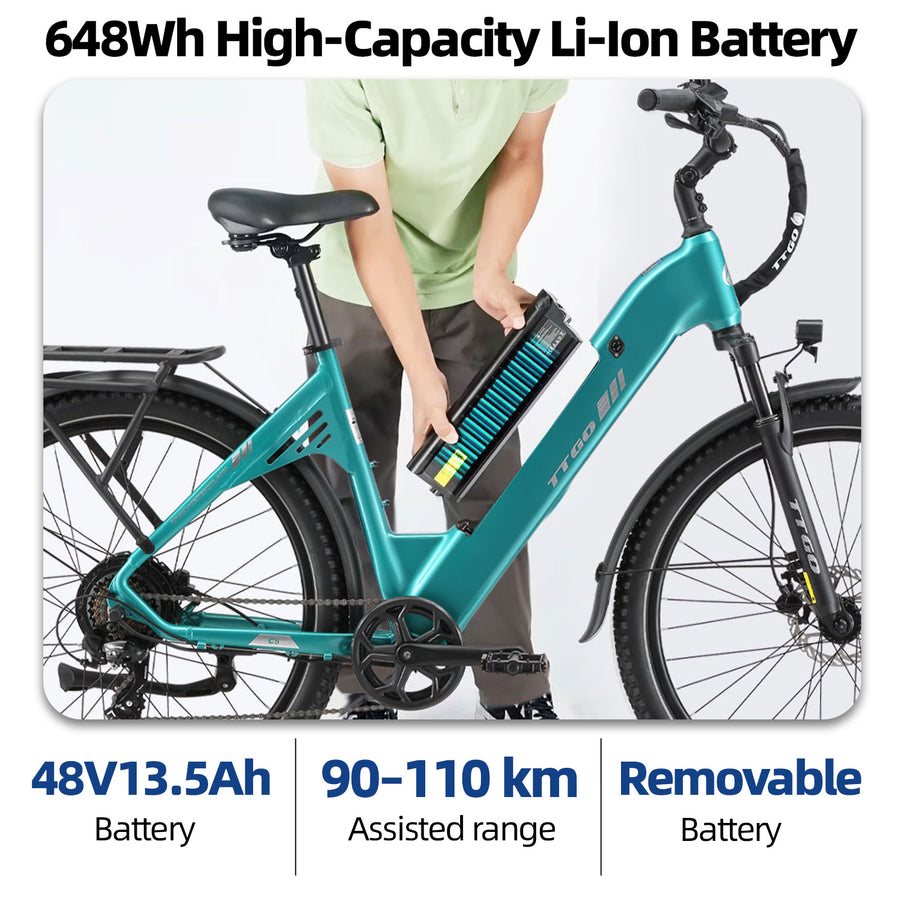

648Wh Removable Battery

648Wh Removable Battery

The 48V 13.5Ah removable lithium battery provides 648Wh capacity and supports an assisted range of up to 90–110 km depending on riding conditions. The removable design makes charging more convenient at home, in the office, or wherever it is easier for you.

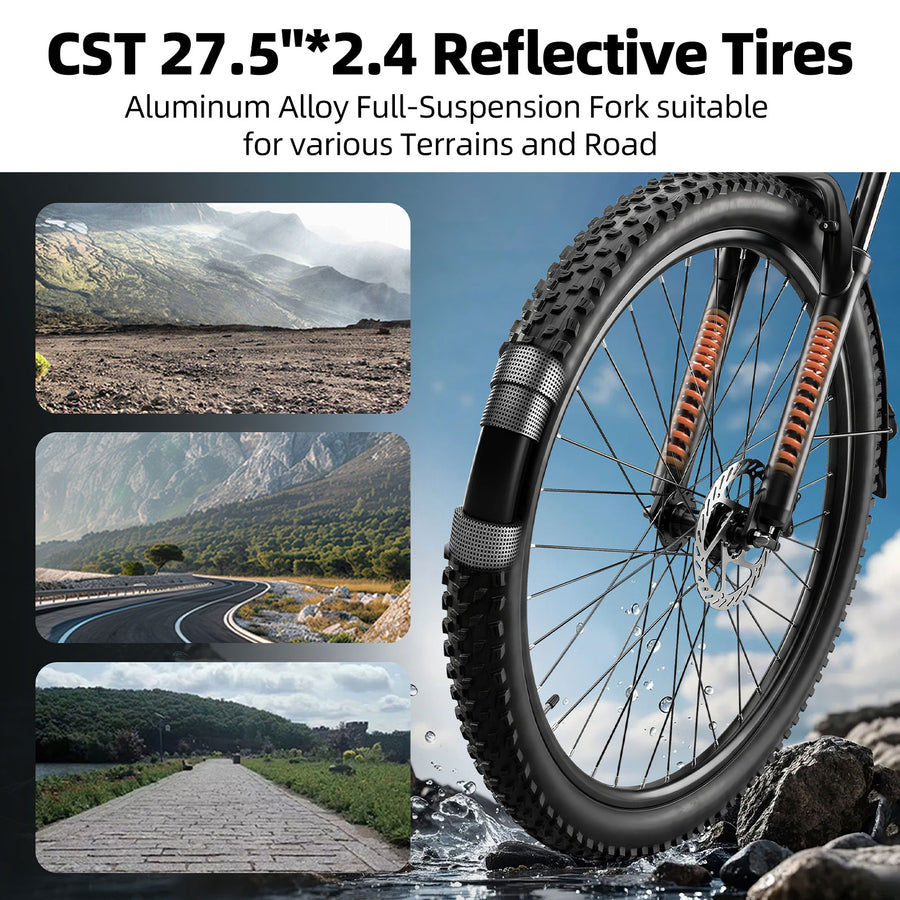

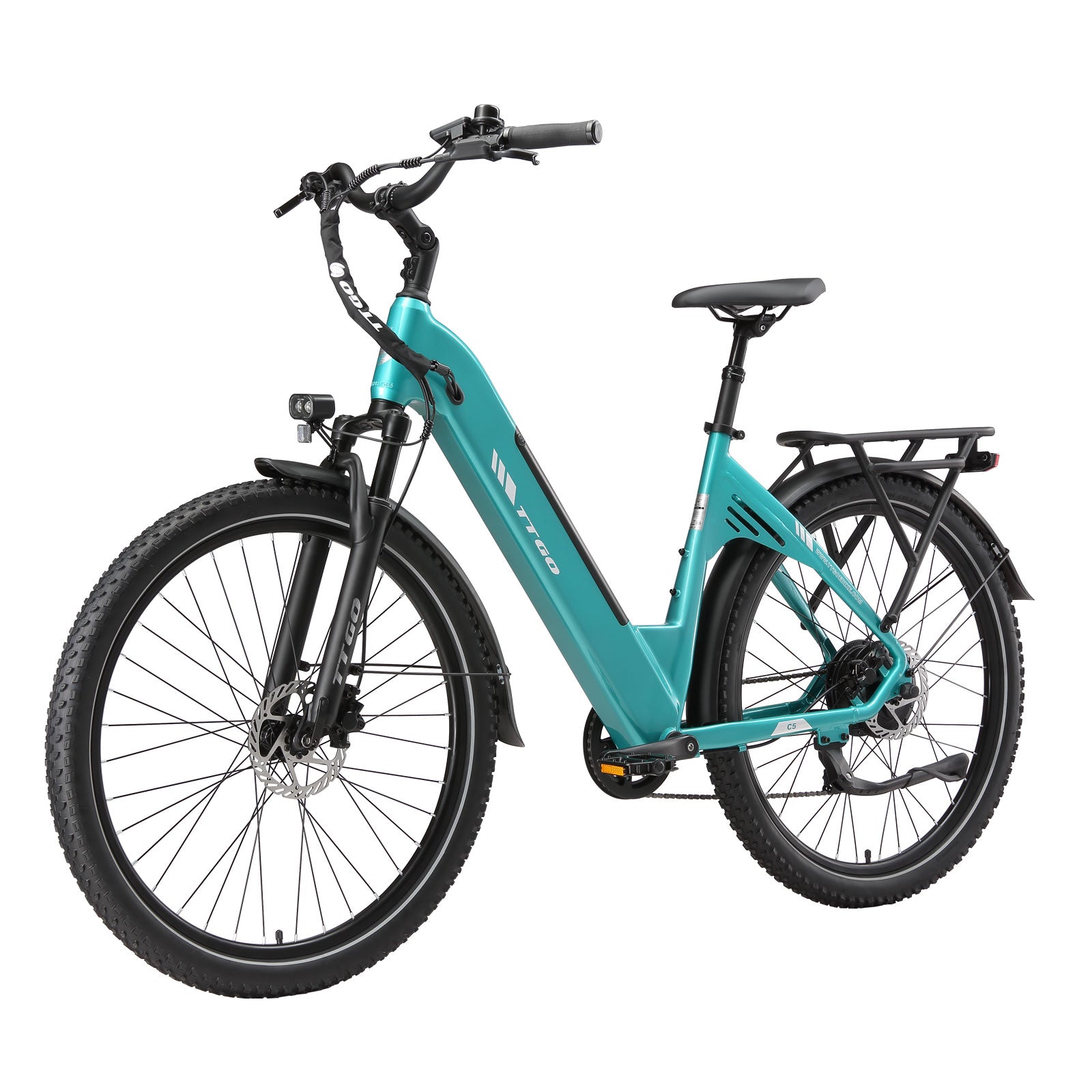

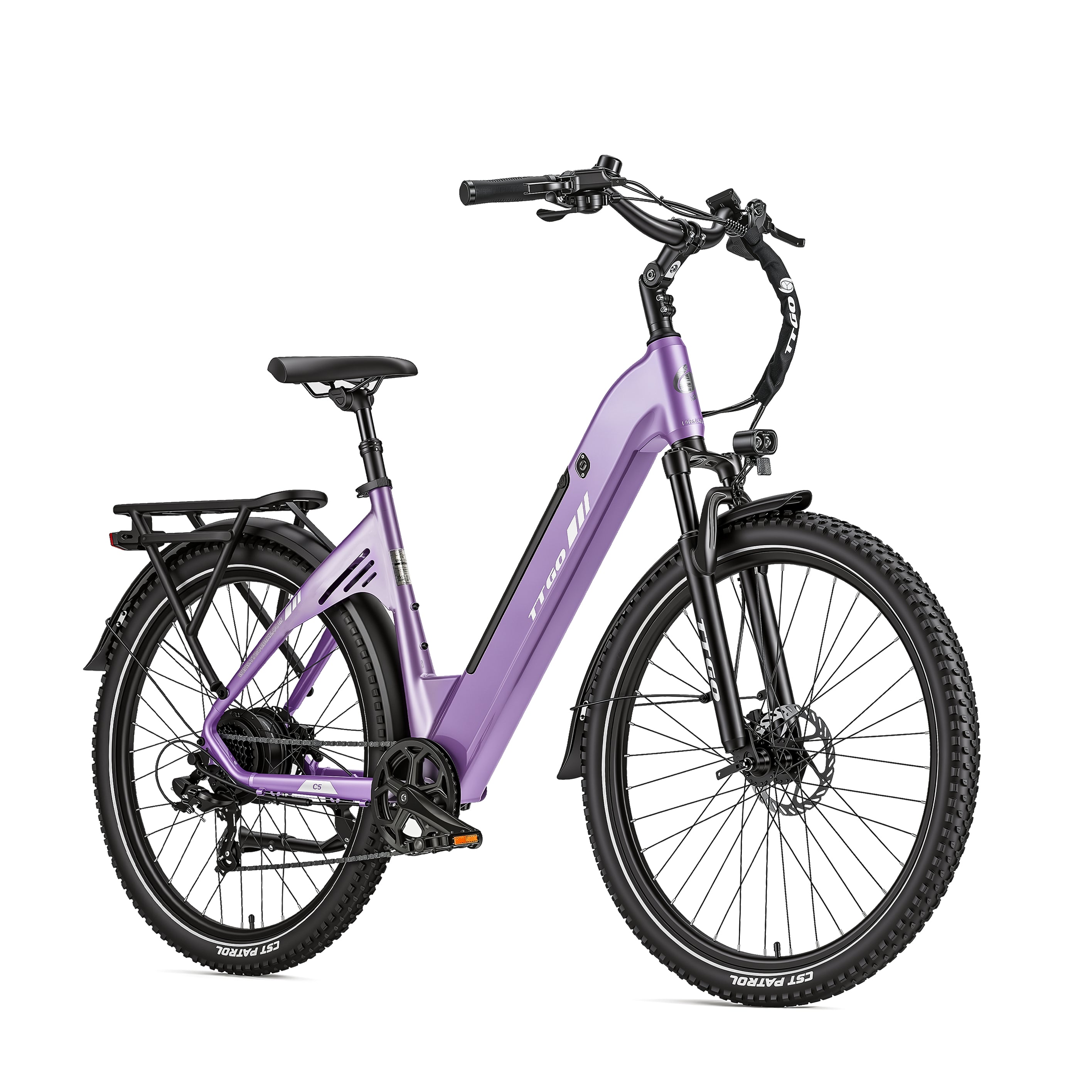

CST 27.5×2.4 Reflective Tires

CST 27.5×2.4 Reflective Tires

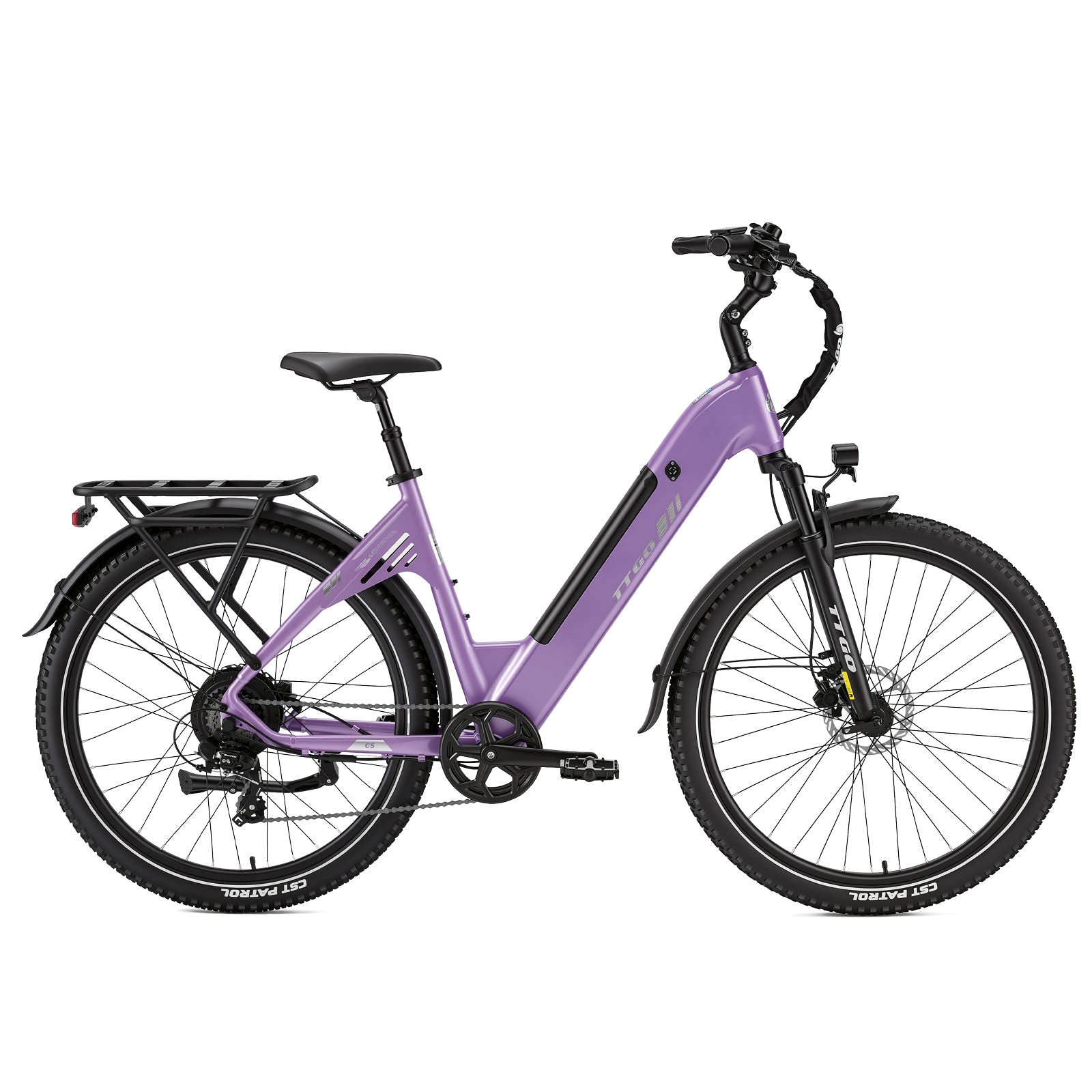

CST 27.5×2.4 reflective tires provide a wider contact area for better grip, stability, and comfort on city roads, gravel paths, and uneven surfaces. Paired with an aluminum alloy suspension fork, the TTGO C5 is built to handle daily commuting and light mixed-terrain riding more smoothly.

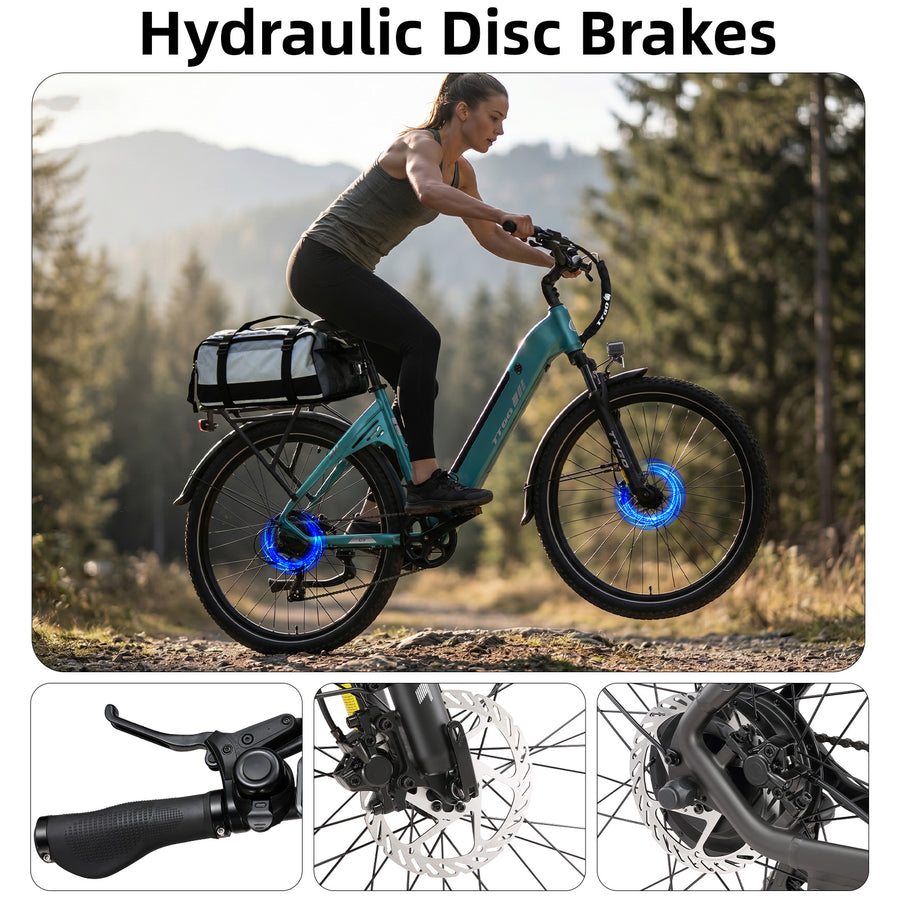

Hydraulic Disc Brakes

Hydraulic Disc Brakes

Hydraulic disc brakes give the TTGO C5 more responsive and consistent stopping power than basic braking systems. Whether you are riding through city traffic, downhill roads, or wet streets, the brakes help improve control and confidence during everyday rides.

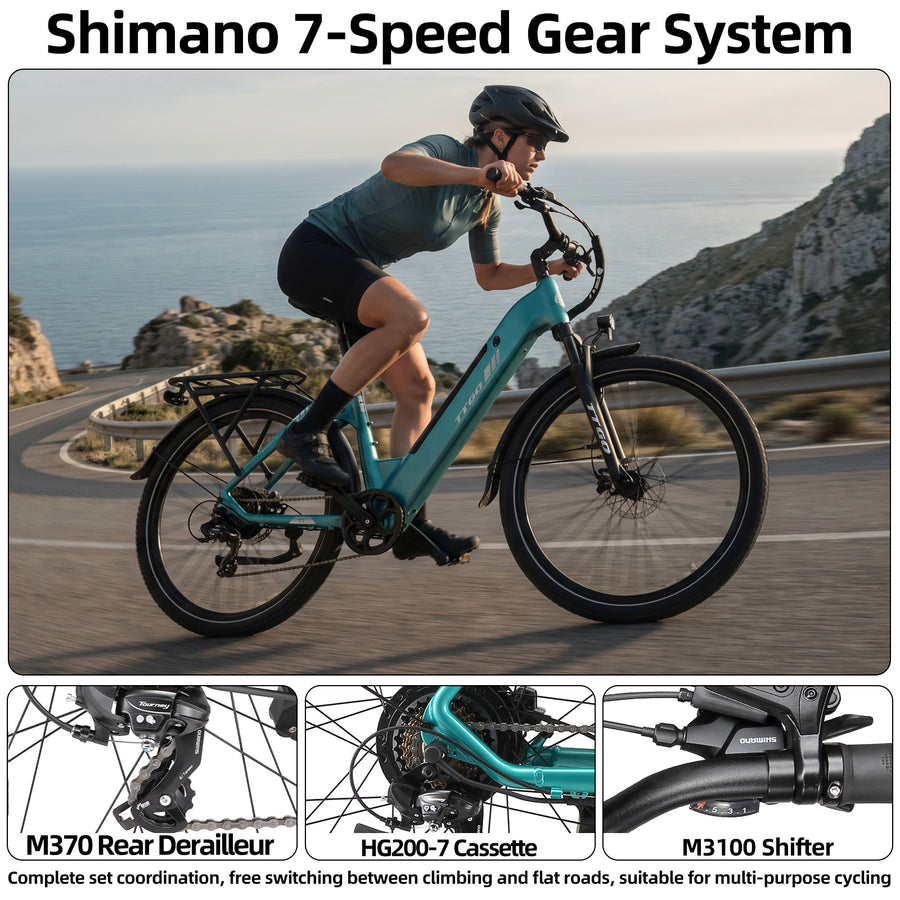

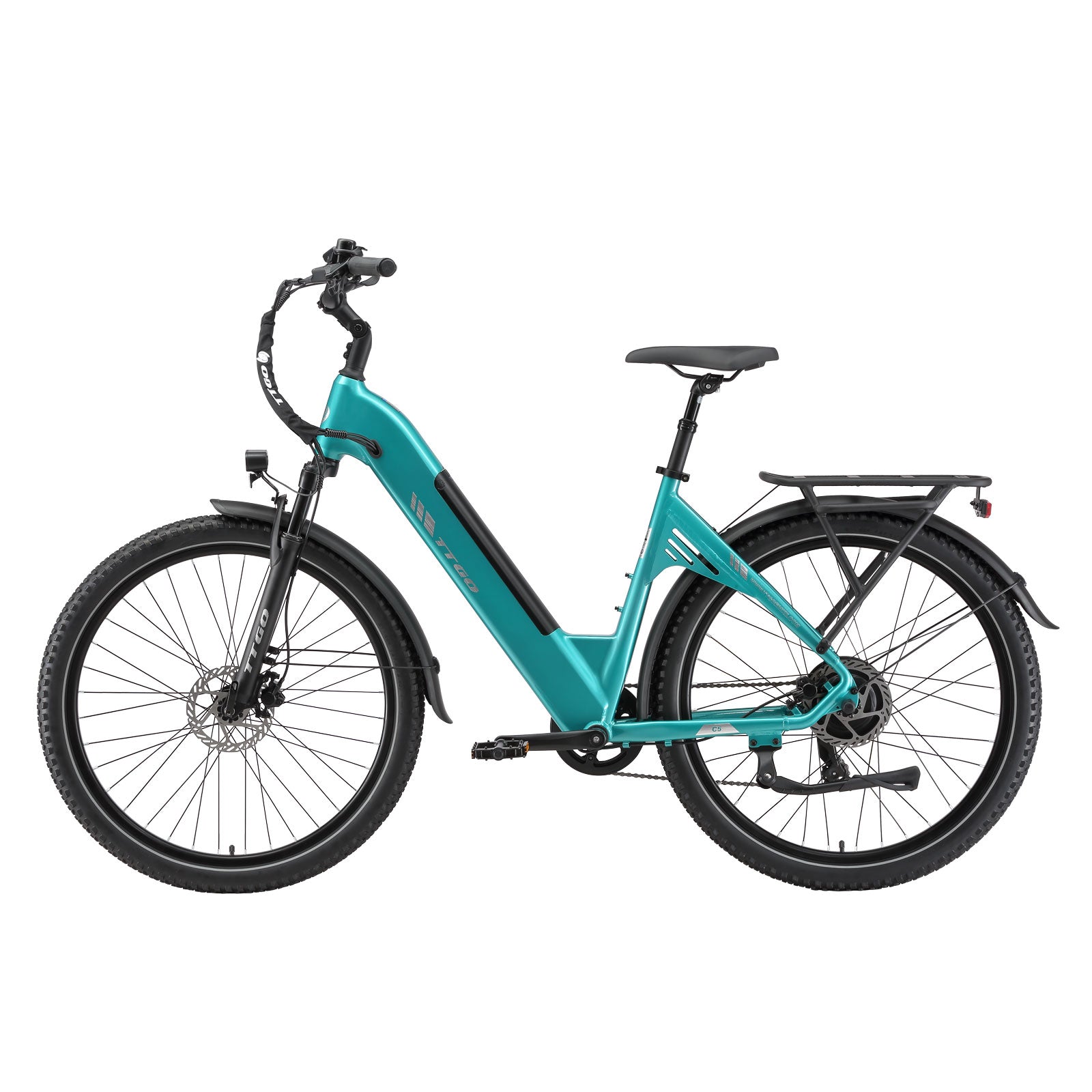

Shimano 7-Speed Gear System

Shimano 7-Speed Gear System

The Shimano 7-speed gear system makes it easier to adjust your riding pace across flat roads, gentle climbs, and changing city routes. It works together with the electric assist system to make commuting and longer leisure rides feel smoother and more flexible.

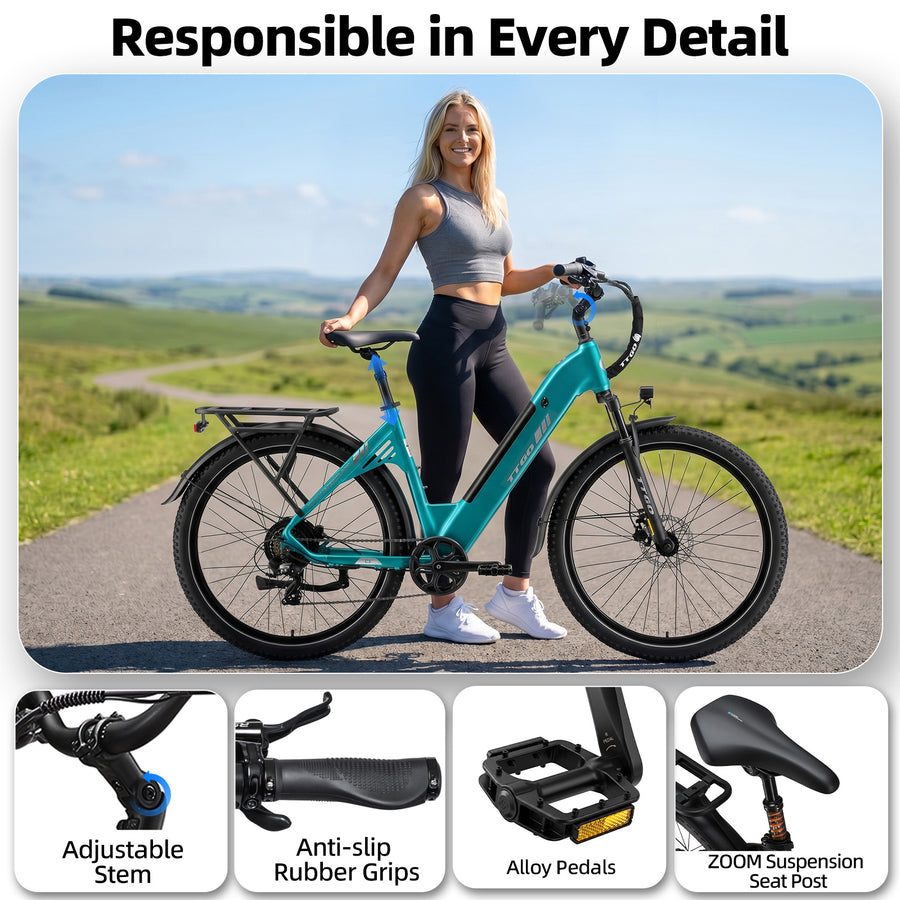

Responsible in Every Detail

Responsible in Every Detail

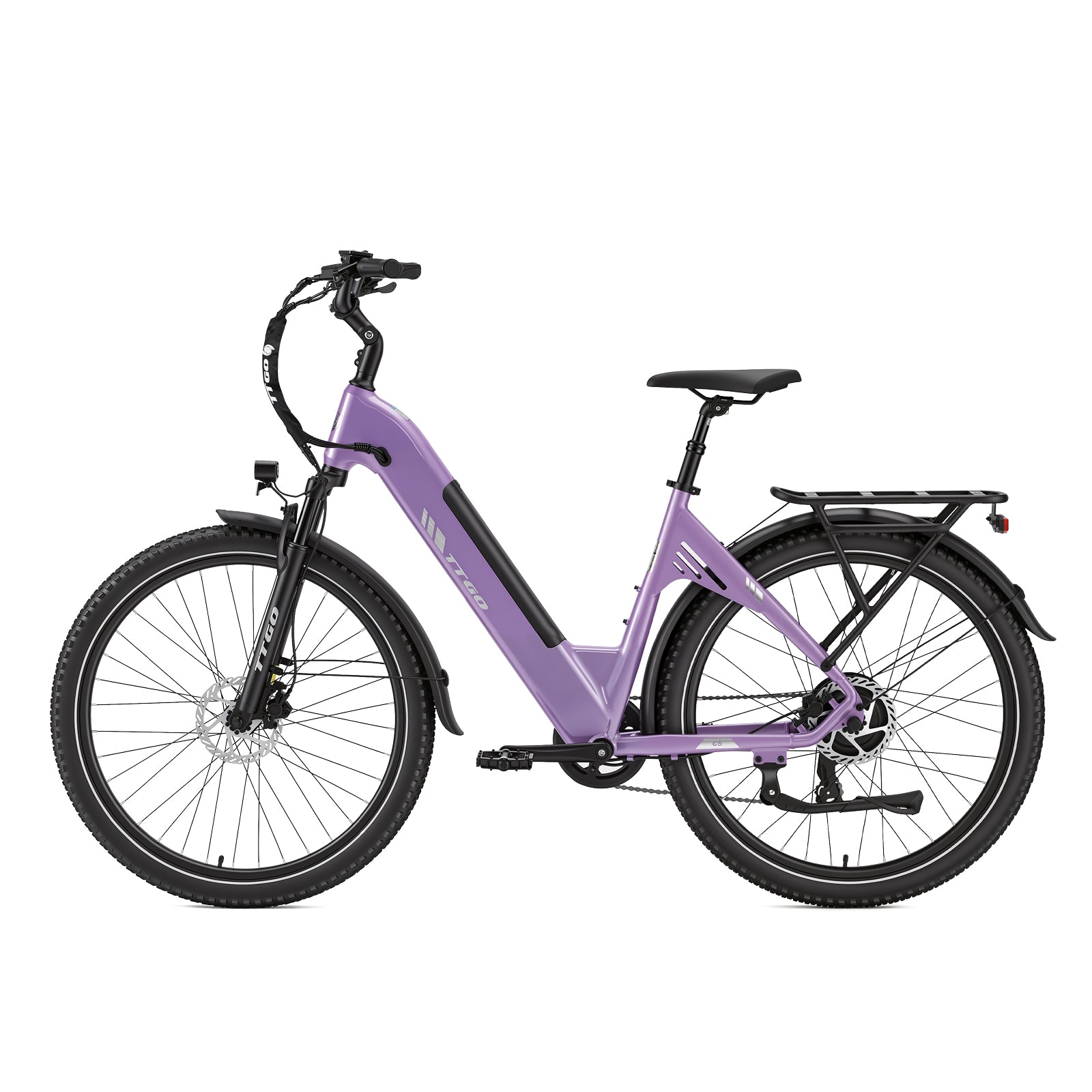

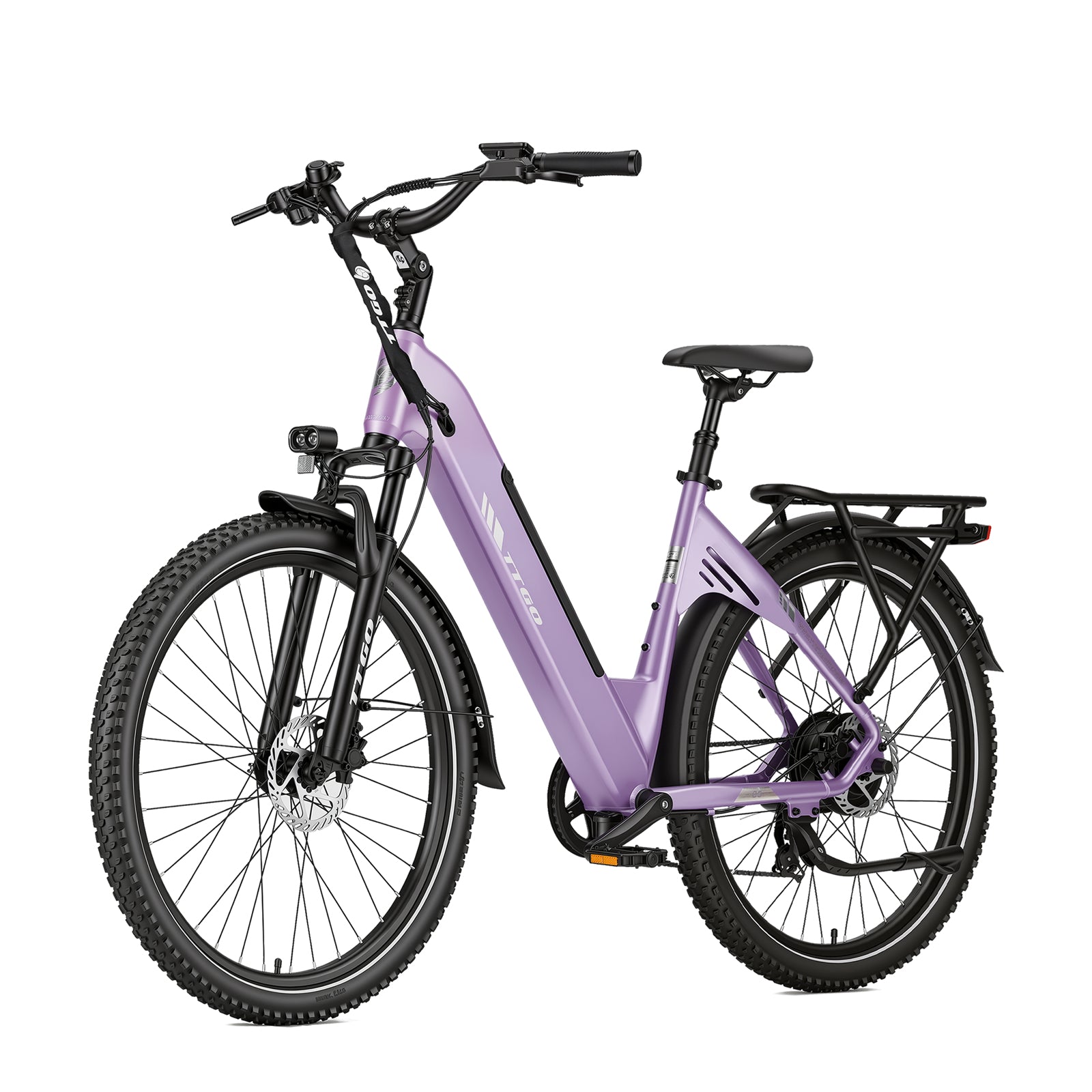

Every contact point is designed for a more comfortable daily ride. The adjustable stem helps fine-tune your posture, anti-slip grips improve hand comfort, alloy pedals add stable support, and the ZOOM suspension seat post helps reduce road vibration on longer journeys.

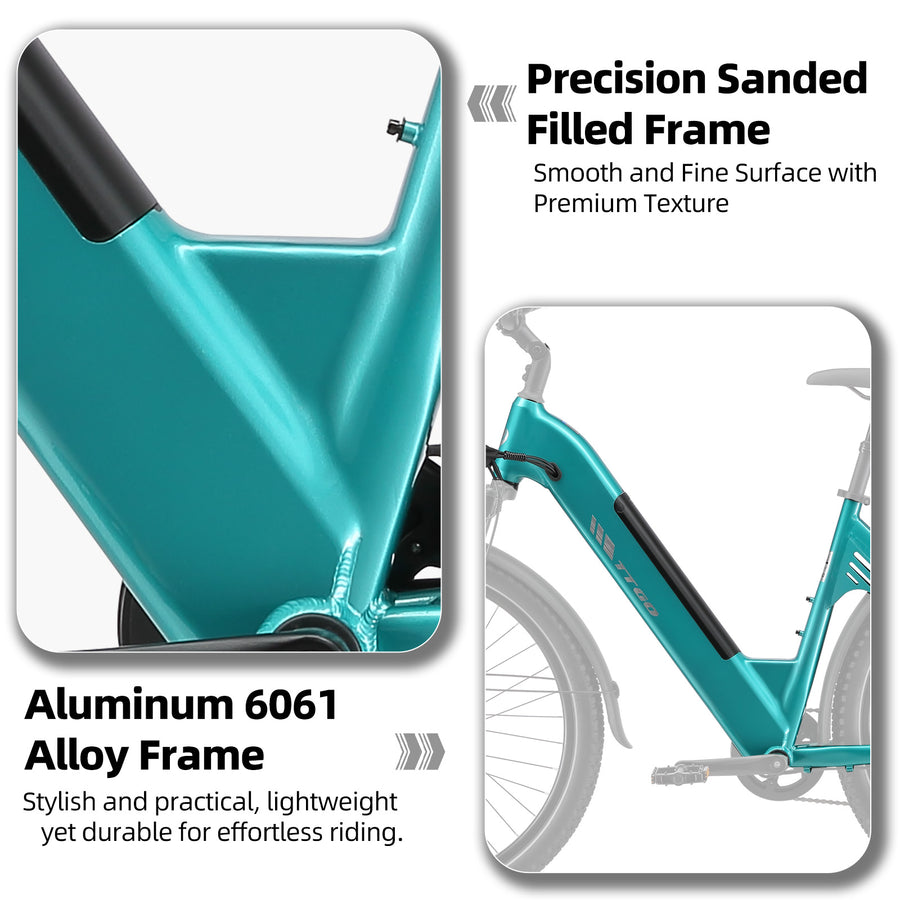

Precision Sanded 6061 Aluminum Frame

Precision Sanded 6061 Aluminum Frame

The 6061 aluminum alloy frame is designed to be lightweight, practical, and durable for everyday use. Its precision-sanded surface gives the frame a smoother finish and a cleaner appearance, helping the TTGO C5 feel more refined without losing daily riding strength.

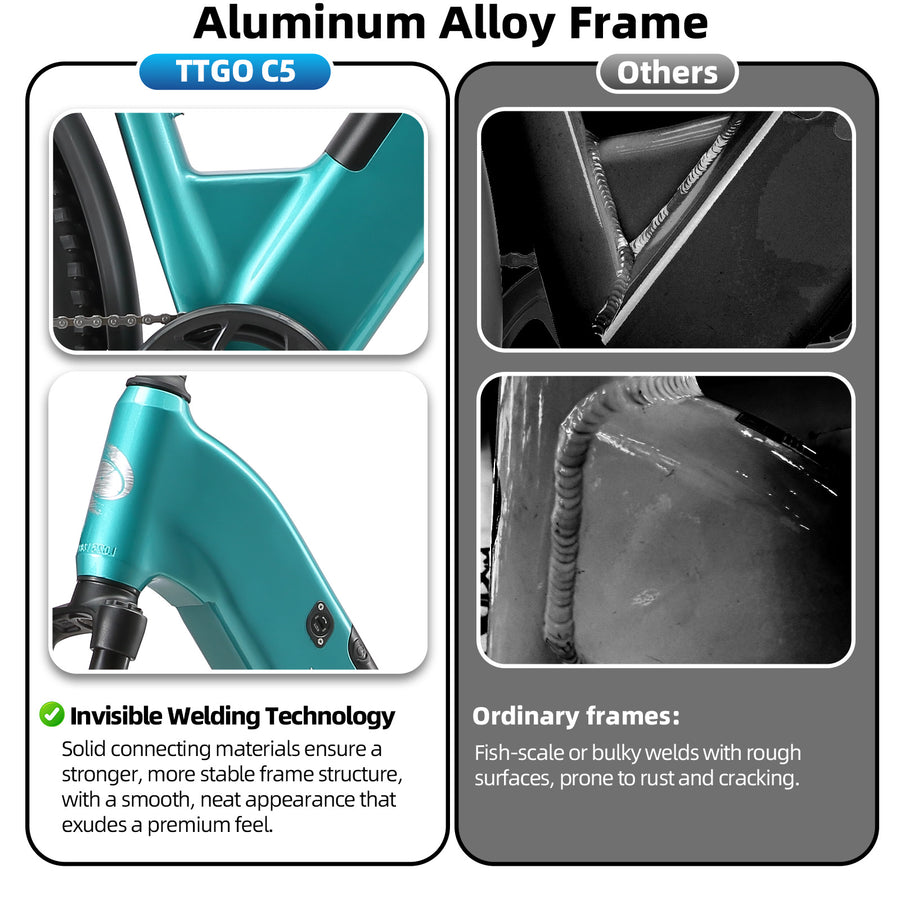

Invisible Welding Frame Design

Invisible Welding Frame Design

The TTGO C5 frame uses a cleaner welding finish to create smoother joints and a neater overall look. Compared with rough, bulky welds, this design gives the step-through electric bike a more polished appearance while supporting a strong and stable frame structure.

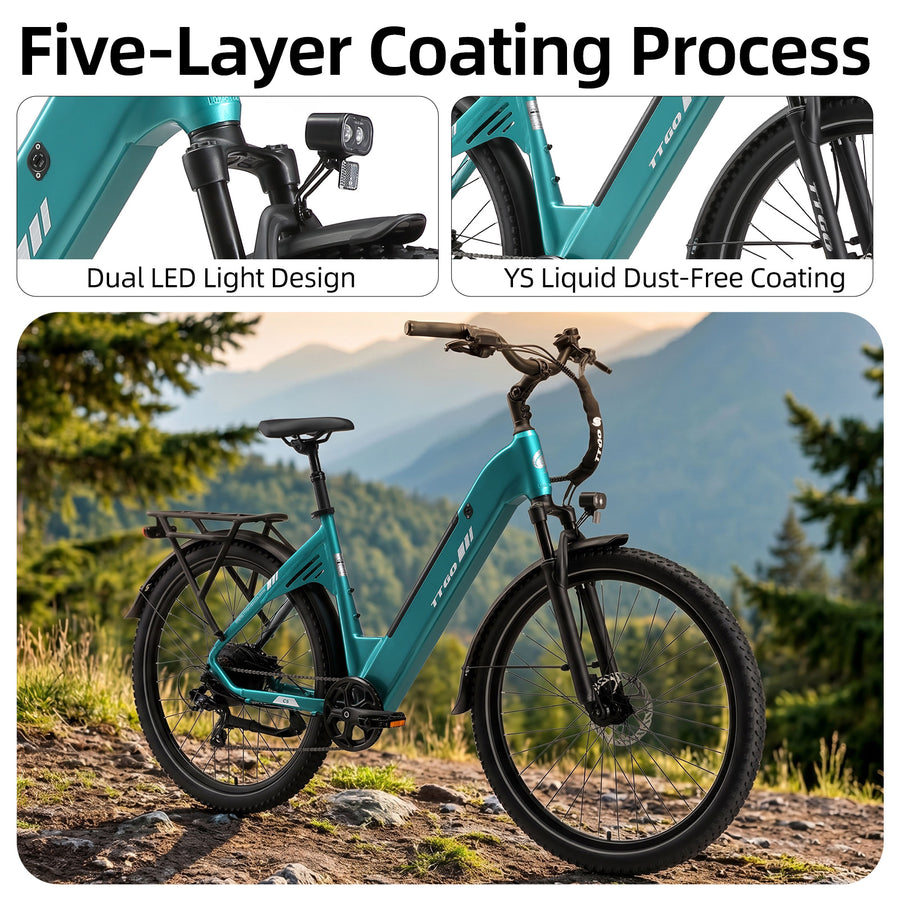

Five-Layer Coating Process

Five-Layer Coating Process

The five-layer coating process helps create a smoother, more durable finish for the TTGO C5 frame. Together with the dual LED light design and dust-free coating process, it gives the bike a cleaner look and better everyday protection against regular wear.

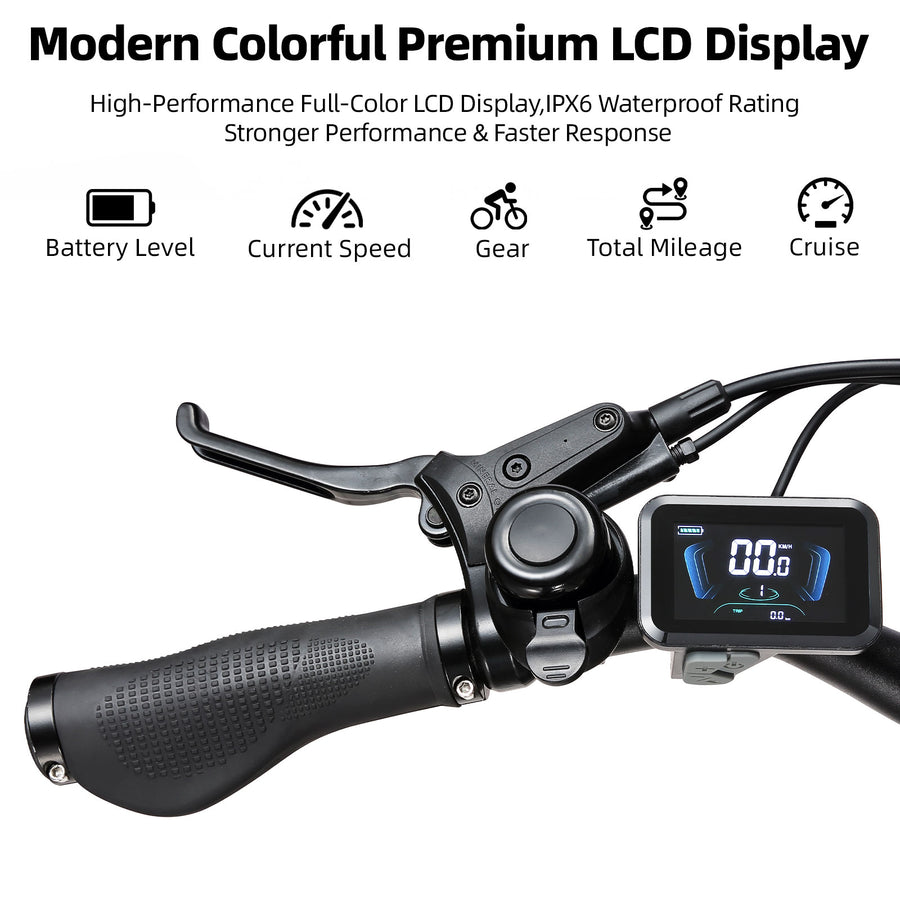

Modern Colorful LCD Display

Modern Colorful LCD Display

The colorful LCD display keeps important riding information easy to read, including battery level, current speed, assist gear, total mileage, and cruise information. The clear screen layout makes it simple to check your ride status at a glance during daily commuting.

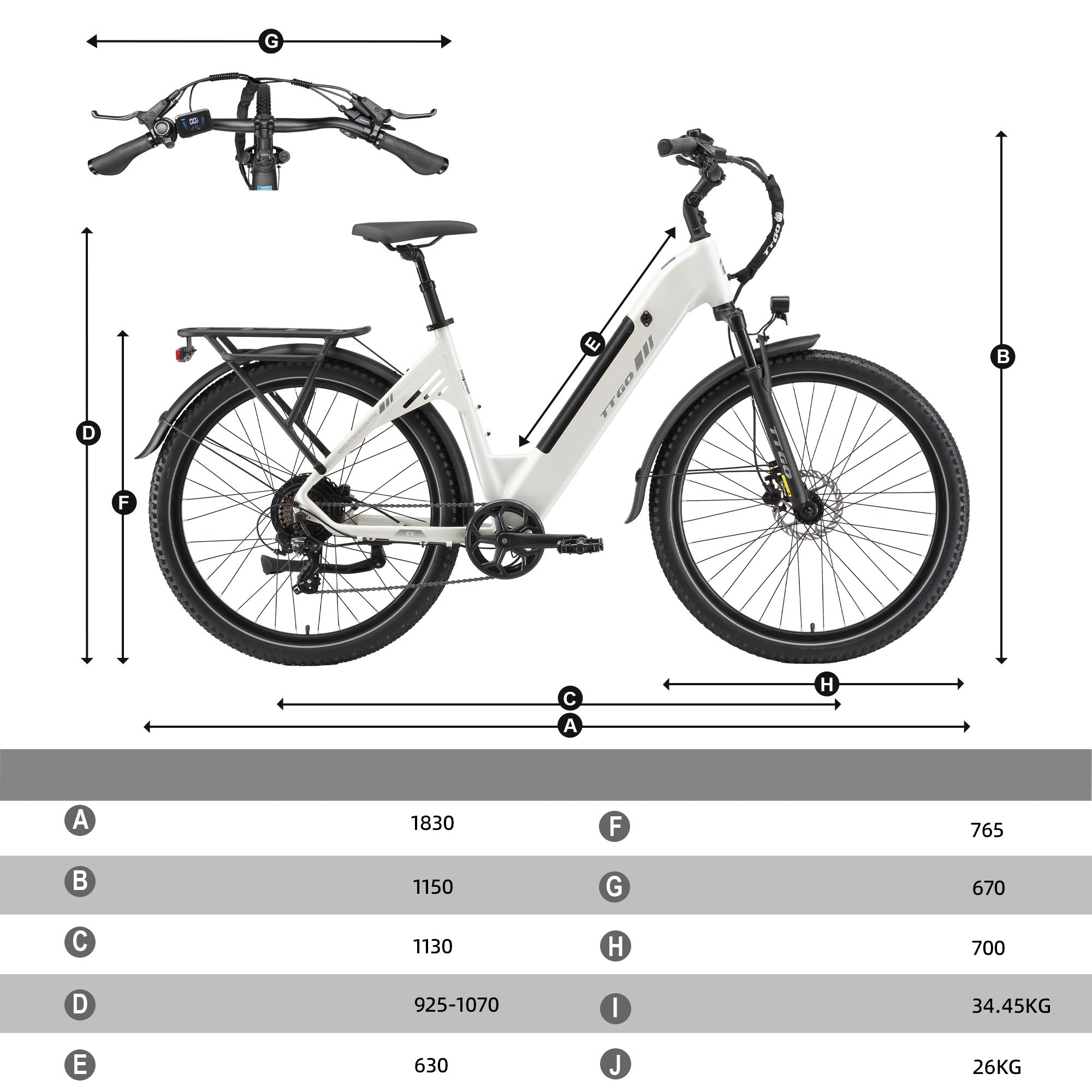

Bike Dimensions

[A] Overall Length 1830 mm
[B] Handlebar Height 1150 mm
[C] Wheelbase 1130 mm
[D] Seat Height 925–1070 mm
[E] Top Tube Length 630 mm
[F] Rear Rack Height 765 mm
[G] Handlebar Width 670 mm
[H] Wheel Diameter 700 mm
[I] Gross Weight 34.45 kg
[J] Net Weight 26 kg

Specifications

Technical Specifications

Review the key specifications, components, dimensions, and packing details before ordering.

Motor

48V 250W Rear Motor

Battery

48V 13.5Ah / 648Wh

Range

90–100 km

Tire Size

CST 27.5" × 2.4"

Brakes

Hydraulic Disc Brakes

Max Load

125 kg

Performance & Riding
Product Model
TTGO C5
Product Type
Step-Through City Electric Bike
Default Speed
25 km/h
Pedal Assist Range
90–100 km
Torque
70 Nm
Sensor
Speed Sensor
Pedal Assist
5 Levels
Transmission
Shimano 7-Speed
Suspension
Front Suspension Fork + Suspension Seat Post
Riding Use
City / Commuting / Daily Travel / Light Mixed Road
E-Bike System
Motor
48V 250W Rear Motor
Motor Type
Brushless Rear Hub Motor
Battery
48V 15Ah Lithium Battery
Battery Capacity
720Wh
Display
LCD Display
Charger
54.6V 3A Charger
Charging Time
About 5–6 Hours
Headlight
E-Mark LED Light
Taillight
E-Mark Taillight
Bike Components
Frame
27.5" 6061 Aluminum Alloy Step-Through Frame
Fork
Suspension Fork
Tires
CST 27.5" × 2.4"
Brakes
Hydraulic Disc Brakes
Derailleur
Shimano 7-Speed
Seat Post
ZOOM Suspension Seat Post
Stem
Adjustable Stem
Handlebar
Aluminum Alloy Handlebar
Rear Rack
Aluminum Rear Rack
Tire Material
Rubber
Pedals
Aluminum Frame Pedals
Chainring
Steel, 1/2" × 3/32" × 112L
Weight, Load & Package
Bike Weight
26 kg
Gross Weight
34 kg
Max Load
125 kg
Recommended Rider Height
165–195 cm
Package Size
148 × 24.5 × 80 cm
Overall Length
186 cm
Handlebar Height
115–120 cm
Wheelbase
113 cm
Seat Height
92–107 cm
Top Tube Length
63 cm
Wheel Diameter
71 cm
Handlebar Width
70 cm
Available Colors
Grey / White / Green / Purple
Specifications may vary slightly depending on production batch and measurement method.
Brand Collection

More from Rower elektryczny TTGO

Compare similar models by riding style, comfort, battery, wheel size, and everyday use.
View Collection
Rower elektryczny miejski TTGO C3 HZ-28ST 28" 250W 36V 20Ah

Rower elektryczny miejski TTGO C3 HZ-28ST 28" 250W 36V 20Ah

€799,00
Rower elektryczny miejski TTGO C3 SE 28" 250W 36V 18Ah Shimano 7-biegowy Zasięg do 120 km

Rower elektryczny miejski TTGO C3 SE 28" 250W 36V 18Ah Shimano 7-biegowy Zasięg do 120 km

€899,00
Rower elektryczny miejski TTGO C2 Pro 26" 36V 18Ah Shimano 7-biegowy Zasięg do 120KM

Rower elektryczny miejski TTGO C2 Pro 26" 36V 18Ah Shimano 7-biegowy Zasięg do 120KM

€699,00
black adult electric bike with a basket

TTGO C2 Elektryczny rower miejski 36 V 250 W 14,5 Ah (TTGO YY-26ST)

€599,00
Before You Buy

Helpful Answers

Quick answers about delivery, returns, warranty, support, VAT, and choosing the right electric ride for everyday travel in Europe.

The standard package does not include a throttle. If you’d like one, just reach out to us and we’ll arrange it for you.

According to EU laws and regulations, TTGO electric bicycles are limited to a maximum speed of 25 km/h. The speed limit can be unlocked for use on private property only, where permitted by local regulations.

The TTGO C5 version listed here offers an estimated pedal-assist range of 90–100 km, depending on rider weight, assist level, road conditions, tire pressure, and riding style.

The TTGO C5 is a step-through city electric bike designed for daily commuting, urban riding, errands, and relaxed everyday travel.

Yes. With a 250W rear motor, 48V 13.5Ah battery, hydraulic disc brakes, Shimano 7-speed transmission, front suspension, and 27.5×2.4 tires, the TTGO C5 is well suited for city commuting and daily rides.

Yes. The TTGO C5 uses a step-through aluminum frame, front suspension fork, ZOOM suspension seat post, adjustable stem, and wide 27.5×2.4 tires to support a more comfortable riding position.

Comfortable Step-Through E-Bike for Daily City Riding

A practical 27.5-inch city electric bike built for commuting, errands, and relaxed everyday rides.

The TTGO C5 is designed for riders who want a comfortable and easy-to-ride city eBike for daily travel. Its step-through aluminum alloy frame makes getting on and off the bike simple, while the adjustable stem and ZOOM suspension seat post help create a more relaxed riding position.

Powered by a 48V 250W rear motor with 70Nm torque, the C5 provides smooth pedal assistance for city streets, bike lanes, gentle climbs, and everyday commuting. The 48V 13.5Ah battery supports an estimated 90–100KM pedal-assist range, making it suitable for regular urban use without frequent charging.

With CST 27.5×2.4 tires, hydraulic disc brakes, Shimano 7-speed gearing, front suspension fork, LCD display, and a rear rack, the TTGO C5 combines comfort, control, and daily practicality in a clean city eBike design.
